English - 39
2. SPECIAL MENU FUNCTIONS
The Automower must stand in a special test position
to receive usable values when testing the F- and
N-signals. This means the nose of the mower is partly
edge to edge with the charging station base plate,
partly to the right of centre. See the picture opposite.
The value for the F-signal should be above 300 and
the value for the N-signal should be above 100.
When one of the values is lower than 300 respective
100, there is probably a coil fault in the charging
station plate (see page 87 to replace the plate). The
loop sensors on the Automower could also be faulty.
Sensors (5-2-5)
The easiest way to test the sensors is when the
Automower is at a standstill. The following values
indicate:
• Collision = position of the right and left collision
sensors. To test the collision sensors: Hold the
handle on the underside of the Automower.
Press on different parts of the body. The display
shows None, Both, Left or Right. Continue to
press on the body until you see that both
collision sensors work.
• Lift = position for the lift sensor. To test the lift
sensor, lift up the front part of the body. When
the body is lifted up, the lift sensor is activated
and YES is shown on the mower's display. When
the mower is in the lowered position NO is
shown.
• Tilt X and Tilt Y = the movement of the angle
sensors where X is the inclination front/rear
and Y the inclination left/right-hand side. When
Automower is horizontal the values should be max
±3. Inclination up and to the left give a negative
values.
• Mower position = the part of the angle sensor that
states Mower normal pos. or Mower reversed.
The tilt sensor can be calibrated if necessary via
the function Tools- Special settings - Calibrate tilt
sensor (shortcut 5-6-3).
3012-644

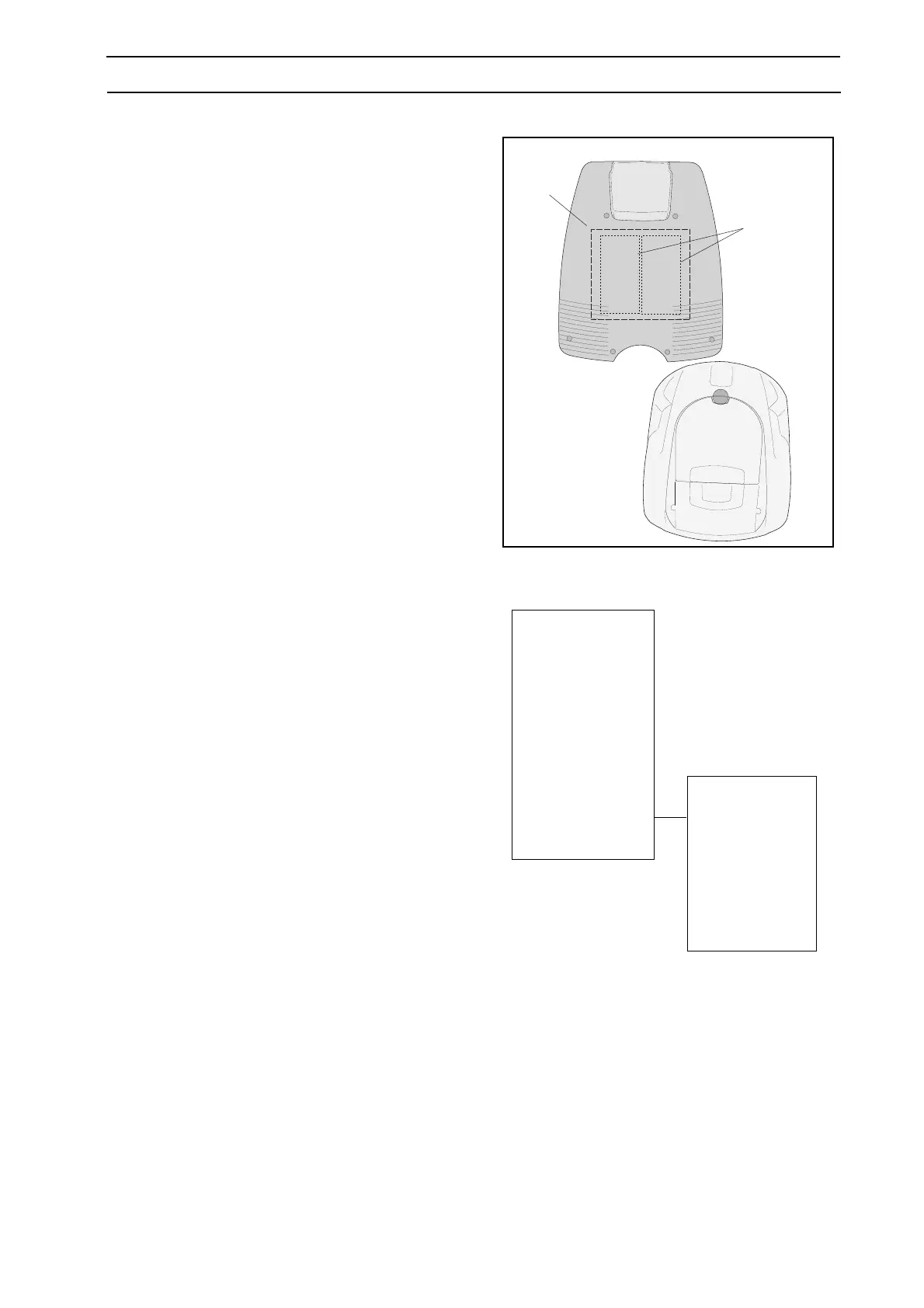

Automower in the test position
N
F
Power & Motors
User interface
Loop
Sensors
Collision
Lift
Tilt X and Tilt Y
Mower position
5-2-5
