Husqvarna AUTOMOWER 230 ACX Technical Manual

English - 5
1. FUNCTION
1. Function
1.1 Automower™ Solar Hybrid,

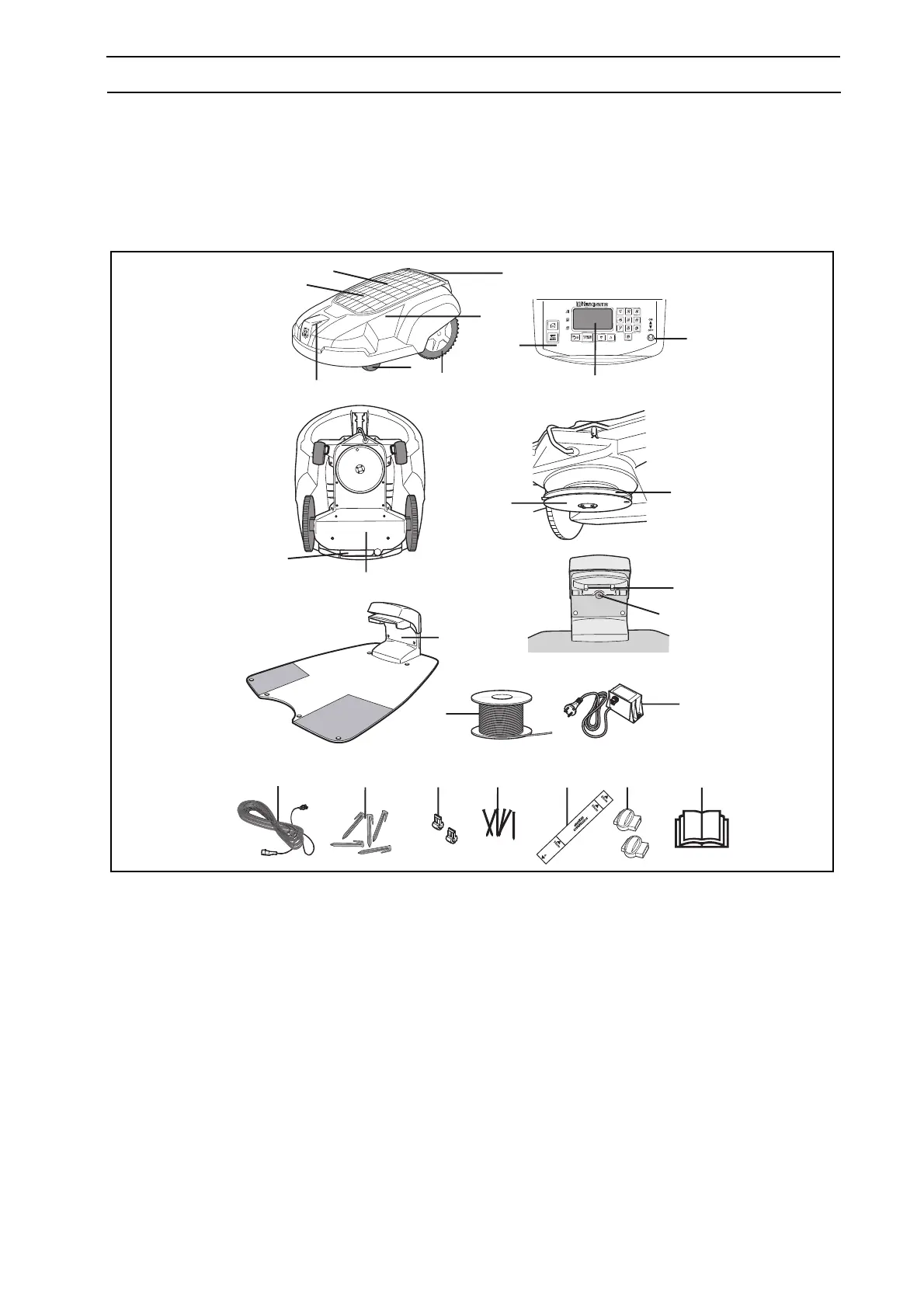

What’s what?
The numbers in the picture correspond to:
1. Charging strip
2. Solar cell panel
3. Cutting height adjustment cover
4. Front wheel
5. Drive wheel
6. Body
7. Stop button
8. Keypad
9. Display
10. Main switch
11. Handle
12. Chassis box with electronics, battery and motors
13. Skid plate
14. Blade disc
15. Charging station
16. Contact strips
17. LED for operation check of the boundary wire
18. Loop wire for the boundary wire and guide wire
19. Transformer with power cord
20. Low voltage cable
21. Staples
22. Connector for the loop wire
23. Nails for securing the charging station
24. Measurement gauge for help when installing the
boundary wire
25. Solderless coupler for the loop wire
26. Operator’s Manual
3012-816
8
9
10
11
12
13
14
15
16
19
20
22
25
26
1
2
3
4
6
7
24
23
5
17
18
21

Husqvarna AUTOMOWER 230 ACX Specifications

General

Cutting Width	22 cm
Cutting Height (min-max)	20-60 mm
Battery Type	NiMH
Area Capacity	3000 m²
Maximum Incline	35%
Power Consumption During Cutting	30 W
Cutting System	3 pivoting razor blades
Alarm	Yes
PIN Code	Yes
Lift Sensor	Yes
Tilt Sensor	Yes
Typical Mowing Time on One Charge	60 minutes
Typical Charging Time	60-80 minutes
