English - 87
5. REPAIR INSTRUCTIONS
5.3 Replacing the circuit card,
charging station
1. Dismantle the charging station.

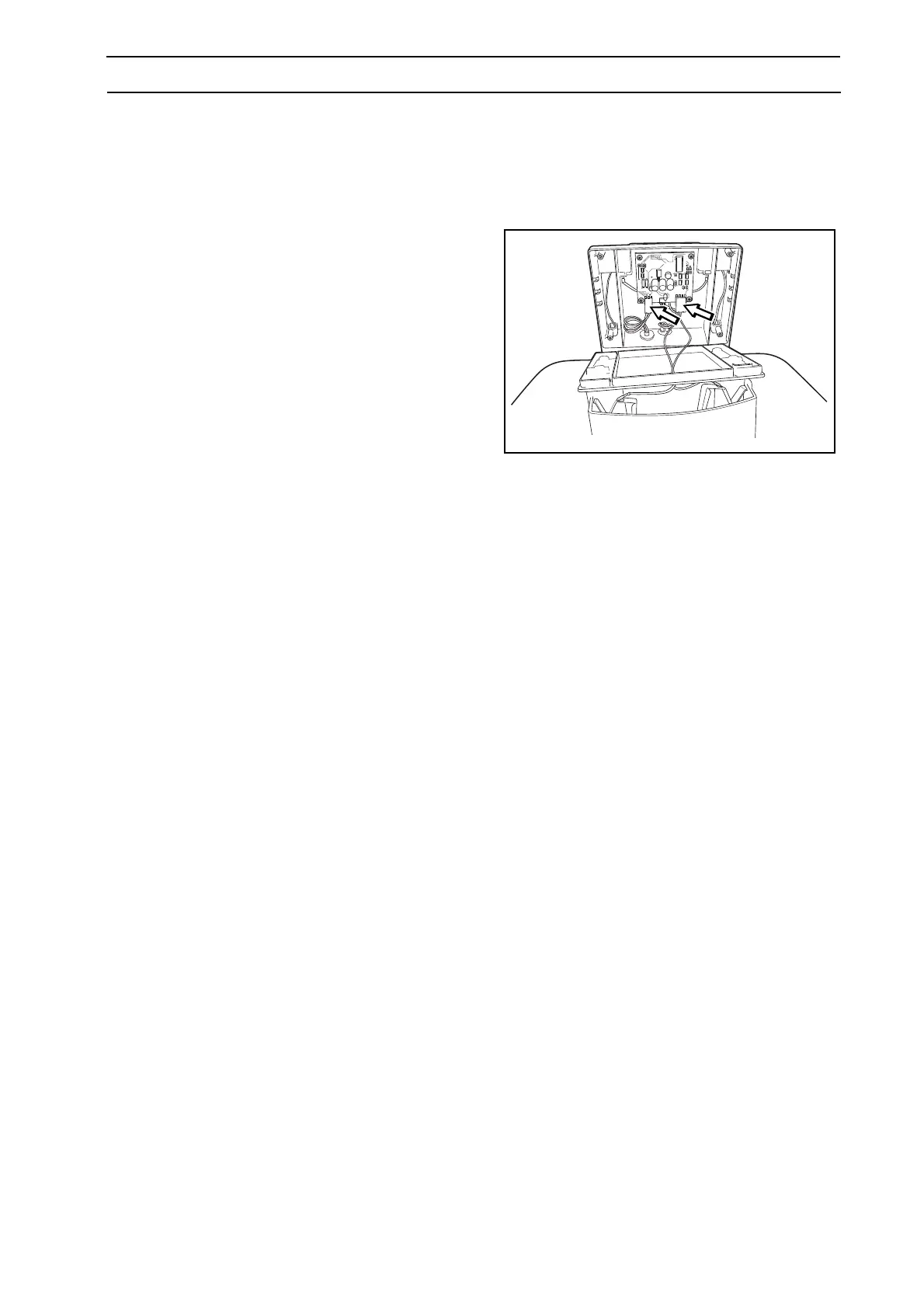

2. Remove the connector to the contact strips and
the connector to the charge plate from the circuit
card.
3. Unscrew the four screws, torx 20, holding the
circuit card.
4. Remove the old card and replace with the new
card.
5. Refit the screws and connect the connectors
again.
6. Assembling the charging station.
7. Program the new circuit card with the mower’s PIN
code:
• Place mower in the charging station and select
Settings - Security - PIN code (shortcut 4-1-1).
• State and confirm the PIN-code. You can use
the same code as earlier.
5.4 Replacing the plate, charging
station
Replacing the plate is simplified if you first remove the
transformer and boundary wire connections from the
charging station.
1. Dismantle the charging station.
2. Remove the connections to the plate from the
circuit card.
3. Turn the charging station.
4. Unscrew the four screws, torx 20, holding the
tower against the plate.
5. Remove the plate’s cable through the hole in the
tower.
6. Fit the tower on the new plate.
When connecting the plates cable to the circuit
card: Ensure the cable’s rubber grommet is
seated correctly in the hole in the tower.
7. Assembling the charging station.
