5. REPAIR INSTRUCTIONS

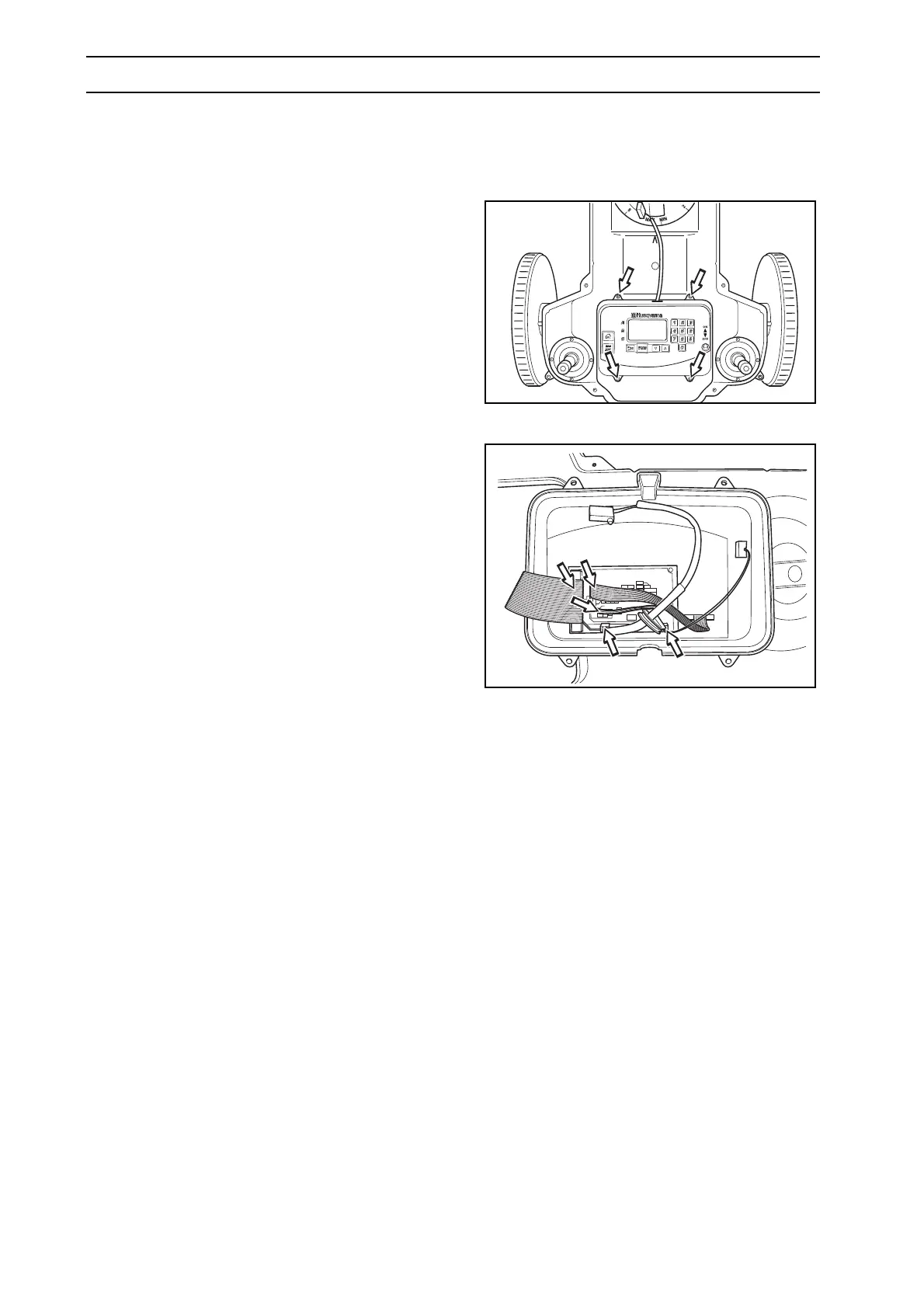

5.9 Replacing the display
1. Dismantle the body.
2. Unscrew the four screws, torx 20, holding the
display cover.
3. Disconnect all the cable connected to the display
circuit card; top part of the cabling, stop button,
main switch, keypad and background lighting
(only 230 ACX and Solar Hybrid).
NOTE! Remove the cables by pulling respective
connectors.
4. Loosen the screw retainer and remove the
display.
5. Replace with a new display and reconnect all the
cables again. Ensure that the cable to the display
circuit card is connected the right way and that
the rubber grommet on the cable to the stop
button is fitted correctly. If the cable is connected
incorrectly, the buttons will not correspond with the
menu functions.
6. Test that the display and keypad work. The mower
program needs to be reconfigured for the new
display if the text on the display is inverted or dark.
This is done using the function Machine version in
Autocheck (see Tools page 29)
7. Screw on the display cover.
8. Assemble the body.
