5. REPAIR INSTRUCTIONS
5. Place the new switch into position and lay the new
wires into the grooves. This is most easily done if
the stop button is in the stop position.
6. Splice the wires together with the supplied splice
connectors.
7. Install the cover with the eight screws.
8. Install the solar panel.

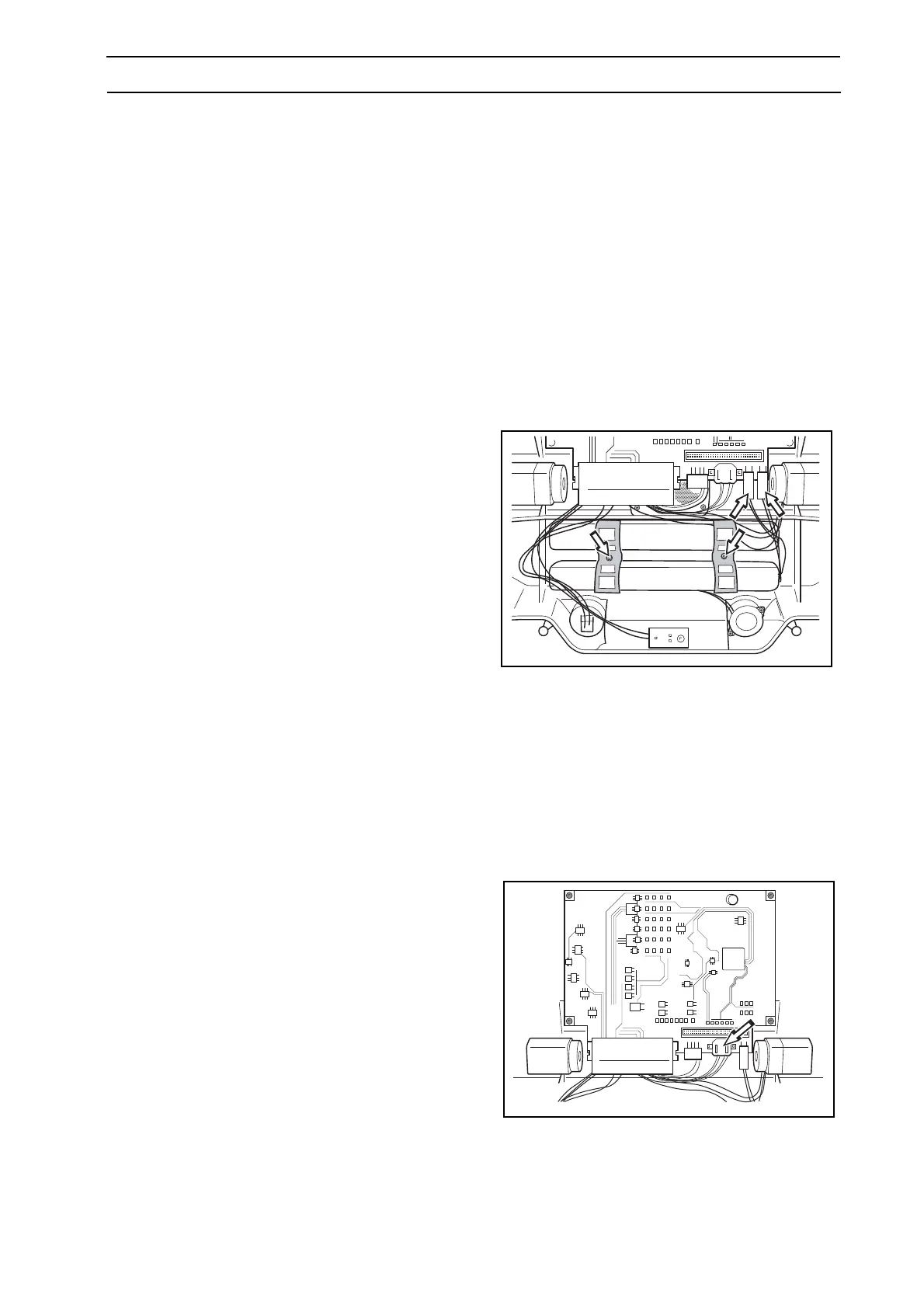

5.15 Replacing the battery
1. Dismantle the body and chassis.
2. Press down the catch on the battery cable's
connector and pull the cable off of the control box.
3. Loosen the two screws, Torx 20, and the holder
over the battery.
4. Lift out the battery.
5. Fit the new battery. The battery on 220 AC
should be installed in the front compartment. Pay
particular attention to install the battery with the
text “THIS SIDE UP” upwards. If the battery is
installed incorrectly this can result in interference
on the mower's loop sensor.
6. Check that the battery works
7. Fit the chassis and body.
NOTE! After replacing the battery you should reset
Charges OK, which a measurement of the battery age.
This is done from Autocheck via Operating history,
Clear Charges OK.
5.16 Replacing the battery, control
box
Only 220 AC, 230 ACX and Solar Hybrid
There is a lithium battery on the control box that
provides power to the mower’s clock when the main
battery is replaced or is fully discharged after, e.g.
winter storage. The lithium battery must be replaced
when the mower’s clock starts to show strange times
or when the voltage drops below 2.5V. The normal
life span is several years.
Battery type: CR 2025 3V.
1. Dismantle the body and chassis.
2. Remove the old battery from its holder on the
control box.
3. Insert the new battery, with + side facing
upwards.
4. Fit the chassis and body.
