Husqvarna AUTOMOWER 230 ACX Technical Manual

English - 7
1. FUNCTION
1.3 Automower™ 210 C,

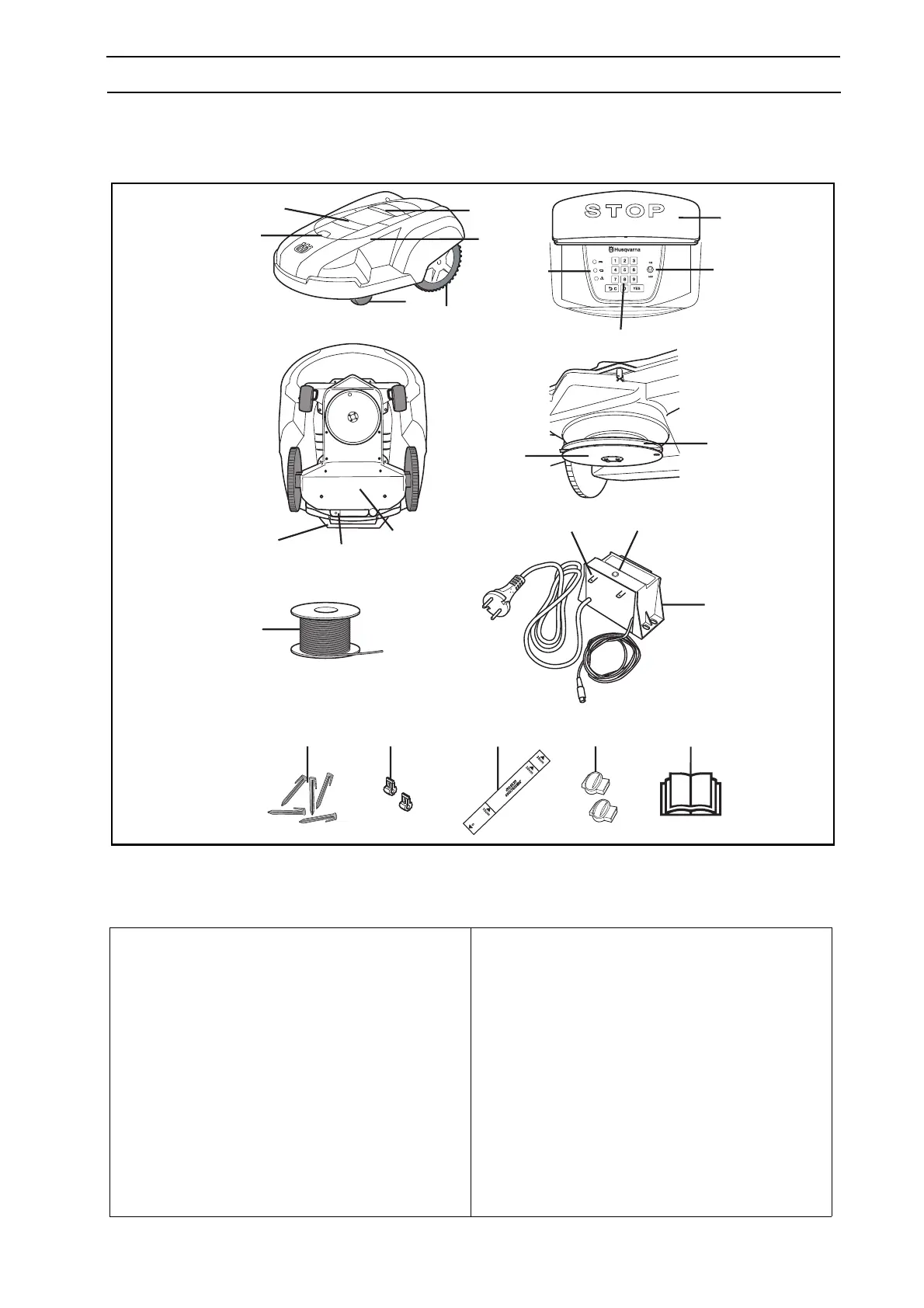

What is what?
The numbers in the picture correspond to:
1. Cutting height adjustment cover
2. Catch button to open the cutting height adjustment
cover
3. Front wheel
4. Drive wheel
5. Body
6. Stop button
7. Indicator lamps
8. Keypad
9. Main switch
10. Handle
11. Charger contact
12. Chassis box with electronics, battery and motors
13. Skid plate
14. Blade disc
15. Loop wire for boundary wire
16. Connection to boundary wire
17. LED for operation check of the boundary wire
18. Loop generator/charger
19. Staples
20. Connector for the loop wire
21. Measurement gauge for help when installing the
boundary wire
22. Solderless coupler for the loop wire
23. Operator’s Manual
3012-753
8
9
10
12
13
14
15
16
19
20
22
1
2
3
4
6
7
5
17
18
21
6
11
23

Husqvarna AUTOMOWER 230 ACX Specifications

General

Cutting Width	22 cm
Cutting Height (min-max)	20-60 mm
Battery Type	NiMH
Area Capacity	3000 m²
Maximum Incline	35%
Power Consumption During Cutting	30 W
Cutting System	3 pivoting razor blades
Alarm	Yes
PIN Code	Yes
Lift Sensor	Yes
Tilt Sensor	Yes
Typical Mowing Time on One Charge	60 minutes
Typical Charging Time	60-80 minutes
