11 – Parts
Power supply parts

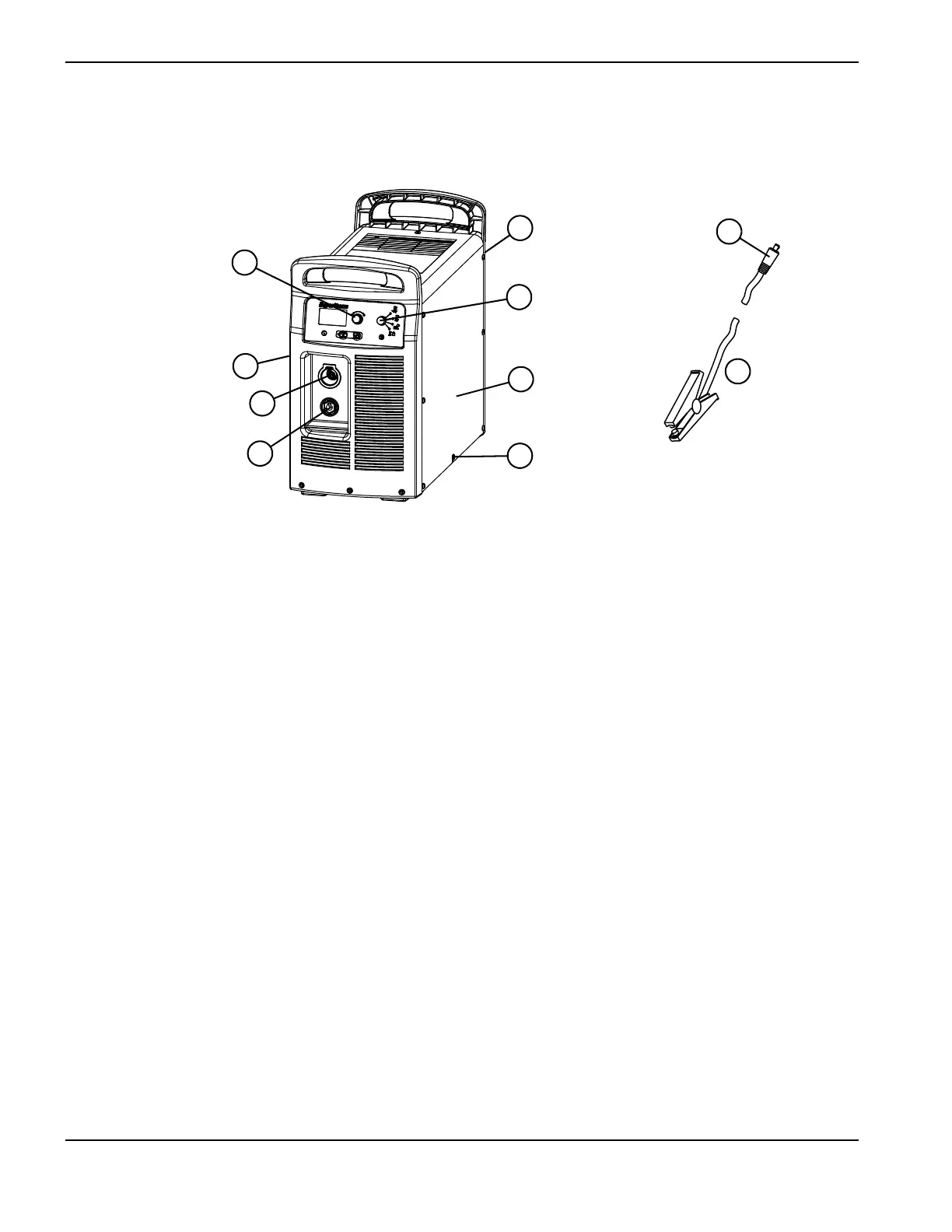

Exterior, front
Part Number Description
1 428143 Kit: Adjustment knob
2 228866 Kit: Powermax105/125 front panel
3 428141 Kit: Powermax105/125 cover screws
4 428115 Kit: Powermax125 CSA power supply cover with labels
4 428116 Kit: Powermax125 CE power supply cover with labels
4 428247 Kit: Powermax125 CCC power supply cover with labels
5 428142 Kit: Operating mode knob
6 428110 Kit: Powermax125 480V CSA rear panel
6 428112 Kit: Powermax125 600V CSA rear panel
6 428111 Kit: Powermax125 400V CE rear panel
6 428113 Kit: Powermax125 380V CCC rear panel
7 Work lead (See Accessory parts on page 307.)
8 228912 Kit: Powermax105/125 work lead receptacle (power supply side)
9 428120 Kit: Powermax125 quick disconnect receptacle replacement (power supply side)
10 228891 Kit: Powermax105/125 work lead connector replacement (lead side)
1
2
3
4
5
6
7
8
9
10
