1.5.4 N700E-370LF/450LFP, N700E-450LF/550LFP
9.84 inch
10.43 inch [D]
2-Φ9 0.35 inch
0.59 inch
11.61 inch [W]
7.87 inch [W1]
25.98 ihch [H]
25.28 ihch [H1] 0.39 inch0.31 inch
2- 0.35 inch
7.87 inch [W1]

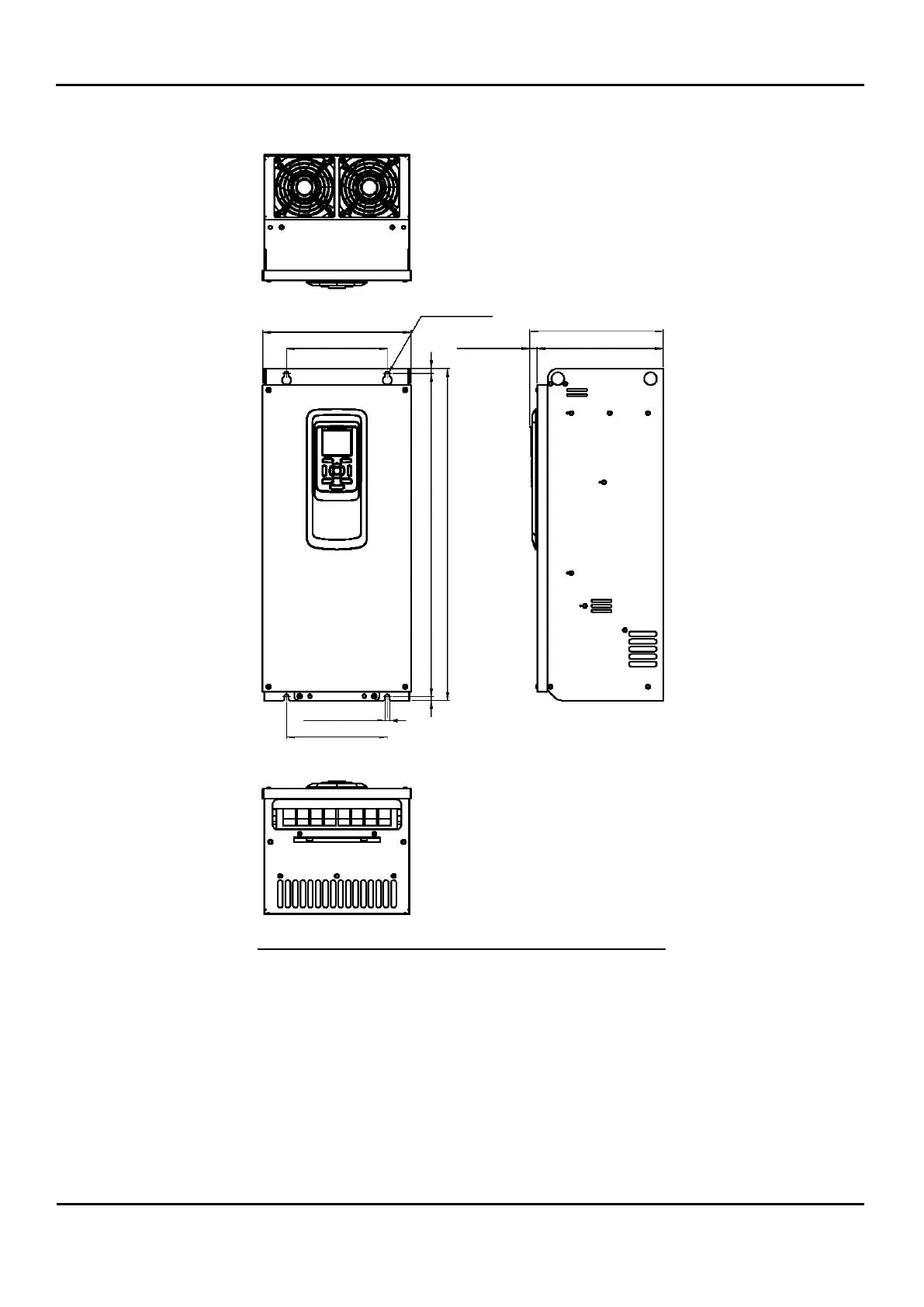

Figure 1-11: Physical Dimension Specific to 370LF ~ 450LF
