N700E INSTRUCTION MANUAL
2-30

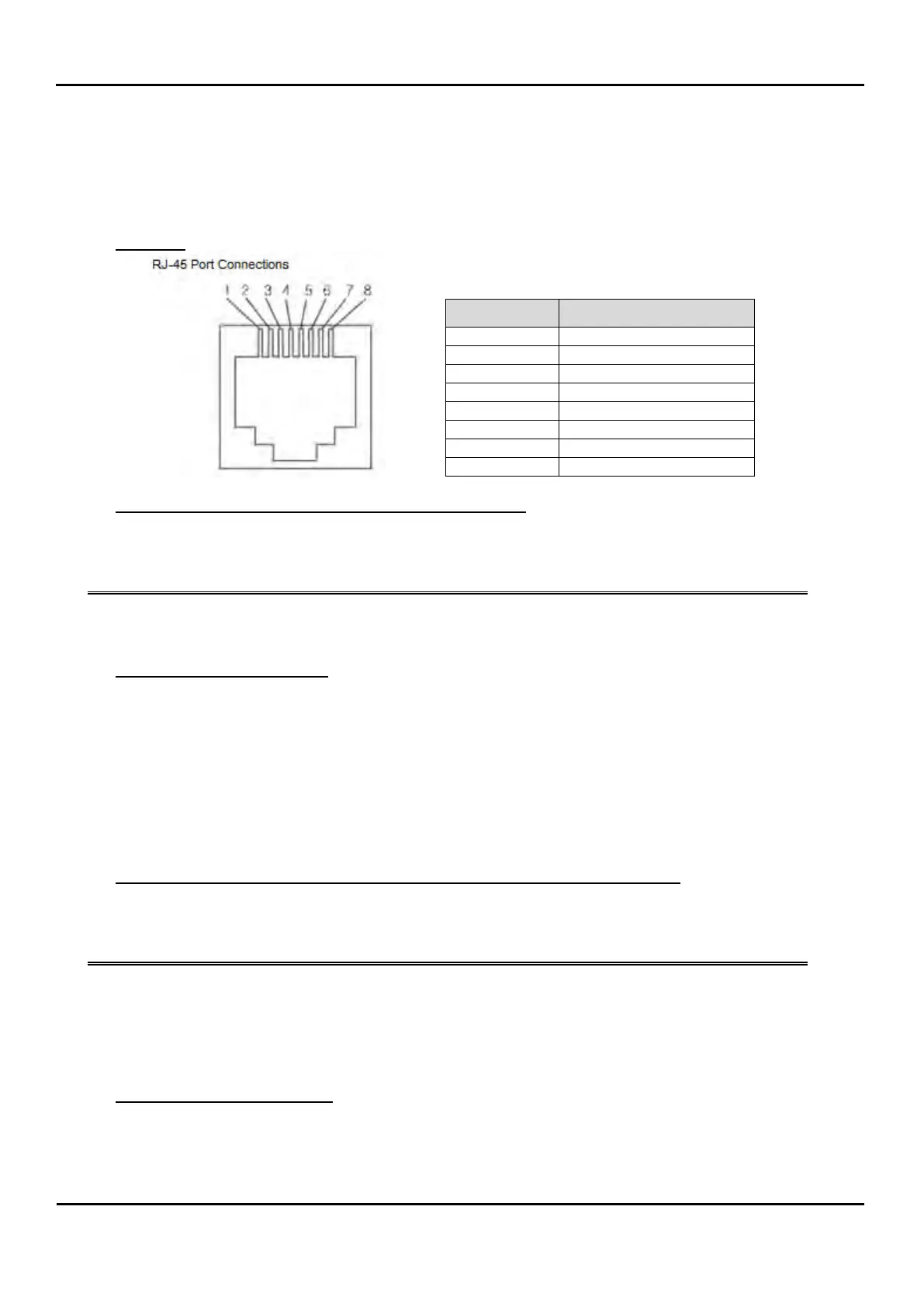

2.3.5 Frequency Command Source to Remote Operator, RJ-45 Modbus
(Except 300LF~750LF)
 Diagram
 Programming N700E Parameters
 Set Frequency Setpoint
 Diagram
 Programming for Frequency Command Source to RJ 45
On Keypad, program following Parameters with corresponding setpoint:
Code
Set Value
Description
A01
3
Frequency Command by Remote RJ 45
b17
1
Communication node (1 ~ 32)
 Entering Frequency Setpoint
 Use Modbus register 4
 Integer data represents 0.01 Hz (ex: 6000 = 60.00 Hz)
2.3.6 Frequency Command Source to Remote Operator (RXP - RXN)
 Use RXP, RXN Terminal
 Programming N700E Parameters Specifying Command Sources
 Entering Frequency Set Point
 Programming Frequency Command Source to Remote Operator, RXP - RXN
On Keypad, program following Parameters:
Code
Set Value
Description
A01
4
Frequency Command by Remote (RXP-
RXN)
b17
1
Communication node (1 ~ 32)
b31
3
RXP-RXN terminal Communication baud
rate(9600bps)
 Entering Frequency Set Point
 Use Modbus register 4
 Integer data represents 0.01 Hz (ex: 6000 = 60.00 Hz)
Pin No.
Signal Descriptions
1
2
3
RS - 485+
4
5
6
RS - 485-
7
24V
8
24V GND
