**Suggestion: Instead Run VFD then display, change to the display parameter then Run in order to
demonstrate ramping frequency value from 0 to 60 Hz.
2.2.4 Advanced Key Feature: “Shift Data Bit” & Short Cut functions
Simultaneous UP/DOWN Keys press for
Right Shifting bit in the data field
Short Cut to d-group Parameter
Shift Data Bit
Scroll up/down to select the desired data for specific function can be a cumbersome process, 0 to 60,00.
Thus, an advanced key operation, “SHIFT” function, is offered to enhance changing the data in more
convenient way. It is achieved by first pressing both UP and DOWN keys simultaneously and move the digit
by the “STR” key.
When UP and DOWN keys are pressed simultaneously, the most left 7-segment digit blinks. Then, by
pressing the STR key, the data pointer is shift to the right and blinks its corresponding segment bit. When
reached to the most right segment, “STR key brings it back to the functional code.
F 01
FUNC
DataField
Press On Display Discription
Press the FUNC key to move to Data Entry Mode
Press the UP & Down Arrow keys simultaneously
Using UP/DOWN key to select the data
Then, Press the STR key to shift to the next digit
STR
AND
OR
STR
OR
F 01
Using UP/DOWN key to select the data
Then, Press the STR key to shift to the next digit
Once it reaches the right most digit,
By pressing the “STR” key, it returns to the functional code

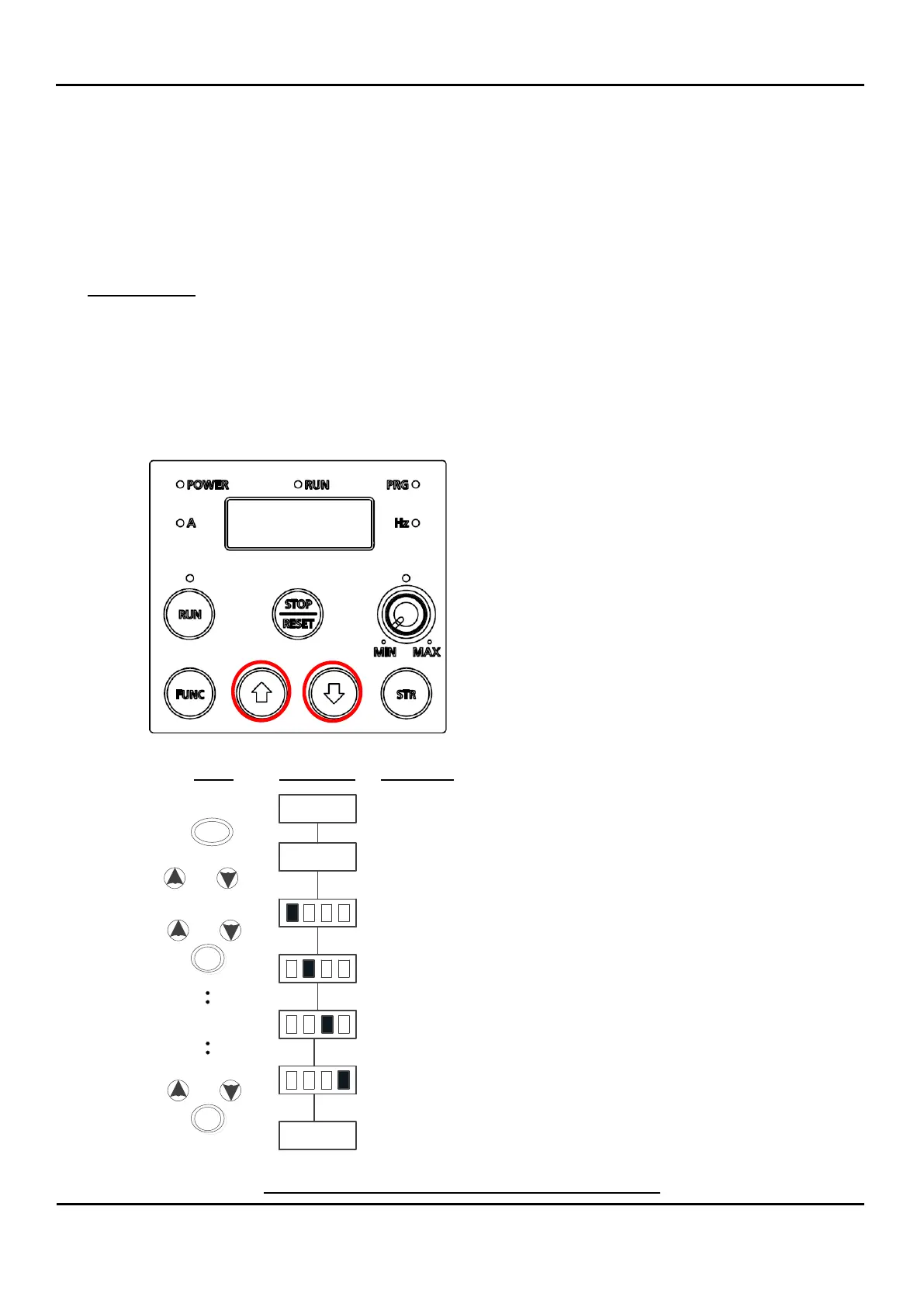

Figure 2-16: N700E Advanced Key Feature: Shift Data Bit
