3. N700E Parameters
N700E parameters are organized to various groups as summarized
 d group: Monitoring
 F group: Basic Frequency Setting
 A group: Extended Frequency Setting
 b group: Extended Start/Stop
 C group: Input / Output Terminal
 H group: Motor
3.1 Parameter Group Overview

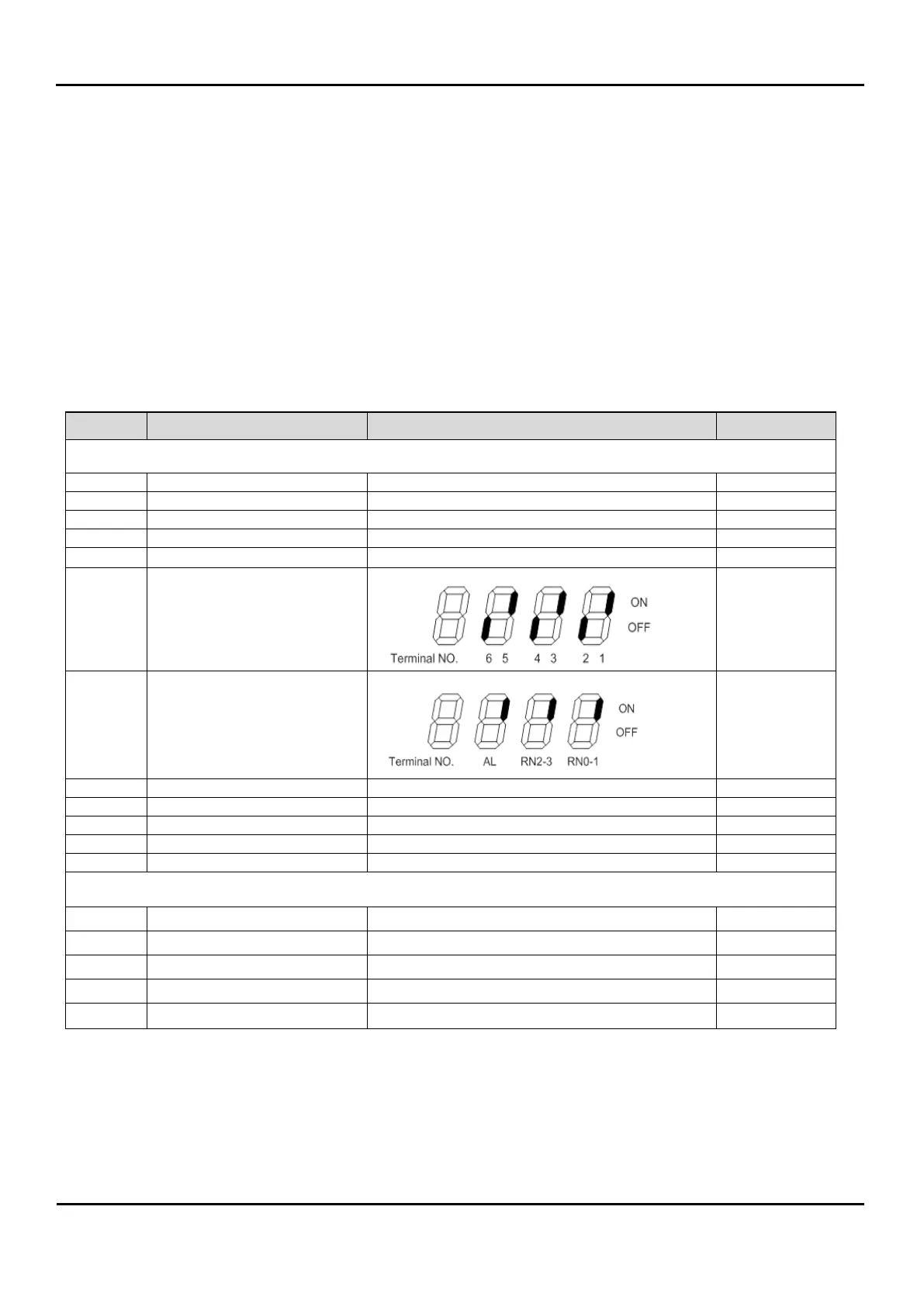

3.1.1 Monitor Mode (d-group)
Code
Name
Range
Unit
Display Performance Value or Status
d01
Output Frequency Monitor
0.00 to 400.00
Hz
d02
Output Current Monitor
0.0 to 9999
A
d03
Output Voltage Monitor
0 to 480
V (AC)
d04
Rotation Direction
F = Forward … □ = Stop … r = Reverse Run
-
d05
PID Feedback
0.00 to 100.0
%
d06
Intelligent Input Terminal
Status
--
d07
Intelligent Output Terminal
Status
--
d08
RPM Output
0 to 65540
RPM
d09
Power Consumption
0 to 999.9
kW
d10
VFD Runtime (Hours)
0 to 9999
Hours
d11
VFD Runtime (Minutes)
0 to 59
Minutes
d12
DC Bus Voltage
0 to 999
V (DC)
Display Trips & Warnings
d13
Current Fault
--
--
d14
Previous Fault 1
--
--
d15
Previous Fault 2
--
--
d16
Previous Fault 3
--
--
d17
Fault Count
--
--
