Icom IC-7100 User Manual

7
D-STAR INTRODUCTION
7-3
Previous view
Enter the Call Sign2.
Touch the desired block one or more times to select t
the desired character or symbol.
(Example: J)
• A to Z, 0 to 9 and / are selectable.
• Touch “AB12” to toggle between the Alphabet input
and Number input mode.
• Touch [CLR](D) to delete the selected character, symbol
or number.
• Touch “” to input a space.
Touch [ y ](D) to move the cursor backwards, or
touch [](D) to move the cursor forwards.
Repeat steps ut and y to enter your own call sign of
up to 8 characters, including spaces.
(Example: First J, then A, then 3, then Y, then U, then A)
Touch [ENT]( i D) to return to the “MY CALL SIGN”
screen.
“MY” (Your own call sign) programming (Continued)

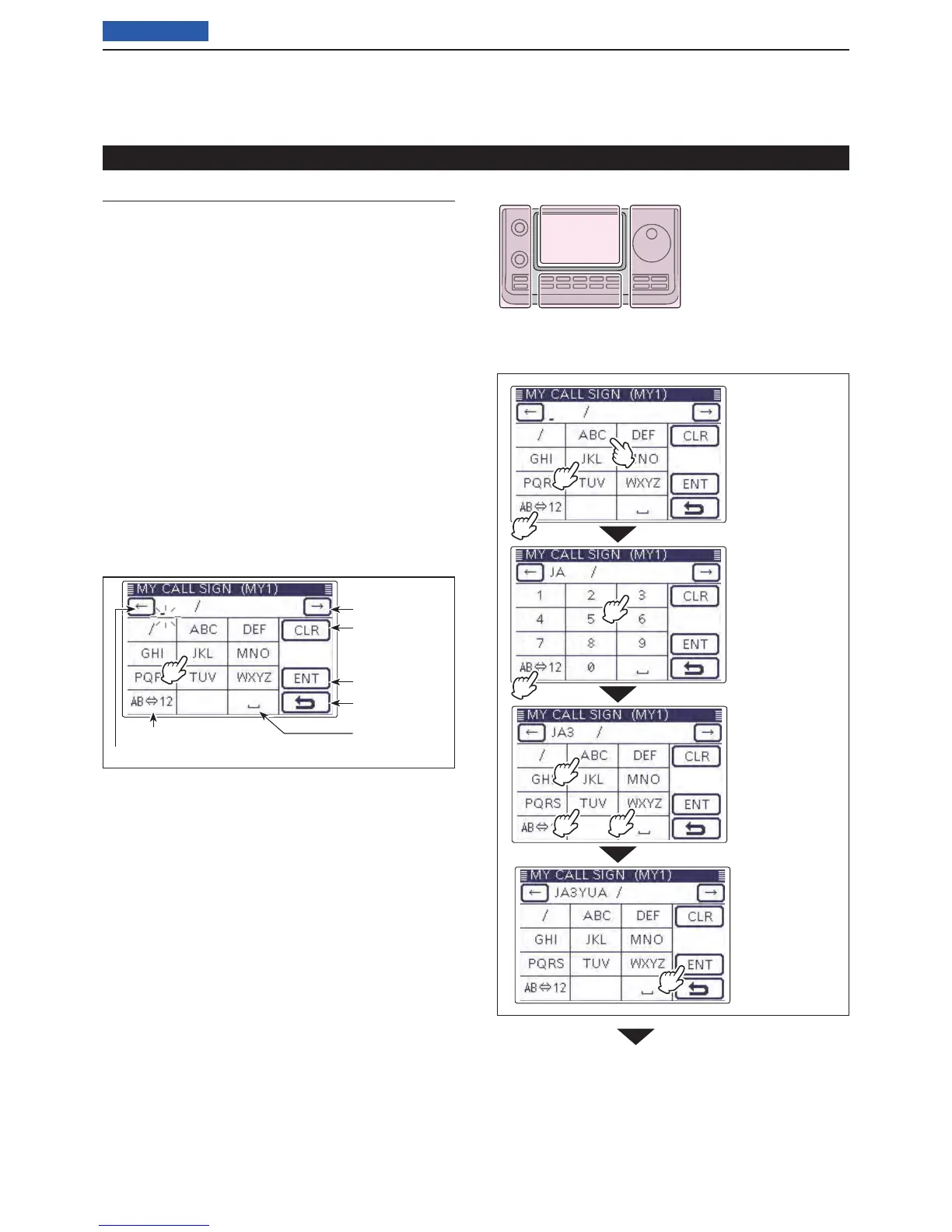

Call sign edit screen
Input a space
Move the cursor
Move the cursor
Delete a character
Select an input mode
Enter
Cancel edit
Number input mode is selected.
Alphabet input mode is selected.
Enter “JA3YUA” into [MY1].
q Touch [JKL]
to enter ‘J.’
w Touch [ABC]
to enter ‘A.’
e Touch
[AB12].
o Touch [ENT]
q
yu
i
r
e
t
w
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch panel)
L
eft
R
ight
C
enter
D
isplay
Continued on the next page ☞
r Touch [3]
to enter ‘3.’
t Touch
[AB12].
y Touch [WXYZ]
three times
to enter ‘Y.’
u Touch [TUV]
two times
to enter ‘U.’
i Touch [ABC]
to enter ‘A.’
o

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
