42 Multi-Wave PE653-PE953 Installation Guide
Copyright © 2010 Intermatic, Inc.

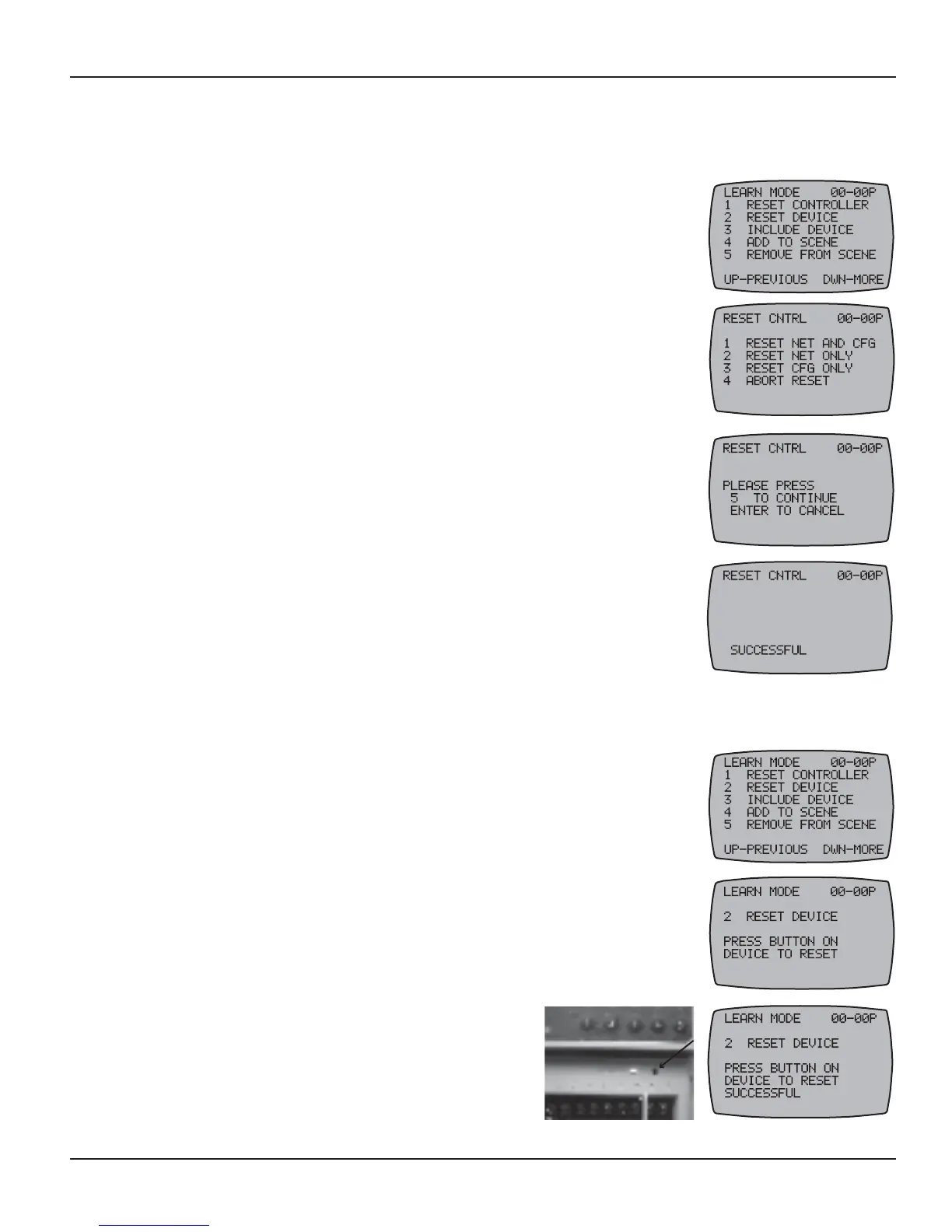

To Reset the PE953 Hand-Held Controller
Press and release any button on the Hand-Held Controller to wake it from sleep. (The unit 1.
goes to sleep to conserve battery life when it has been idle for 60 seconds.)
Press and hold the 2. <P/S> and <ENTER> buttons at the same time
to put the device into programming mode. You are in programming
mode when the LEARN MODE screen is displayed, as shown at the
right.
NOTE: If you pause in programming for more than 30 seconds,
the screen automatically returns to the previous screen.
Press and release the 3. <1> function button to select RESET
CONTROLLER. The screen displays four options, as shown.
Press and release the 4. <1> function button to select RESET NET
AND CFG. This will delete any existing network connections as
well as any programming entered using the Hand-Held Controller.
The screen requests confirmation, as shown.
Press and release the 5. <5> function button to select CONTINUE.
If the action is successful, the screen displays the words PLEASE
WAIT followed by SUCCESSFUL, as shown.
Any pre-existing network or configuration programming in the Hand-
Held Controller is now deleted.
To Reset the PE653 Receiving Device
Press and release any button on the Hand-Held Controller to wake it from sleep. (The unit 1.
goes to sleep to conserve battery life when it has been idle for 60 seconds.)
Press and hold the 2. <P/S> and <ENTER> buttons at the same time to
put the device into programming mode, as shown at the right.
Press and release the 3. <2> function button to select RESET DEVICE.
The screen displays instructions.
Using a pen or pencil, press the 4. INCLUDE
button — to the right of the red light — as
shown.
