46 Multi-Wave PE653-PE953 Installation Guide
Copyright © 2010 Intermatic, Inc.

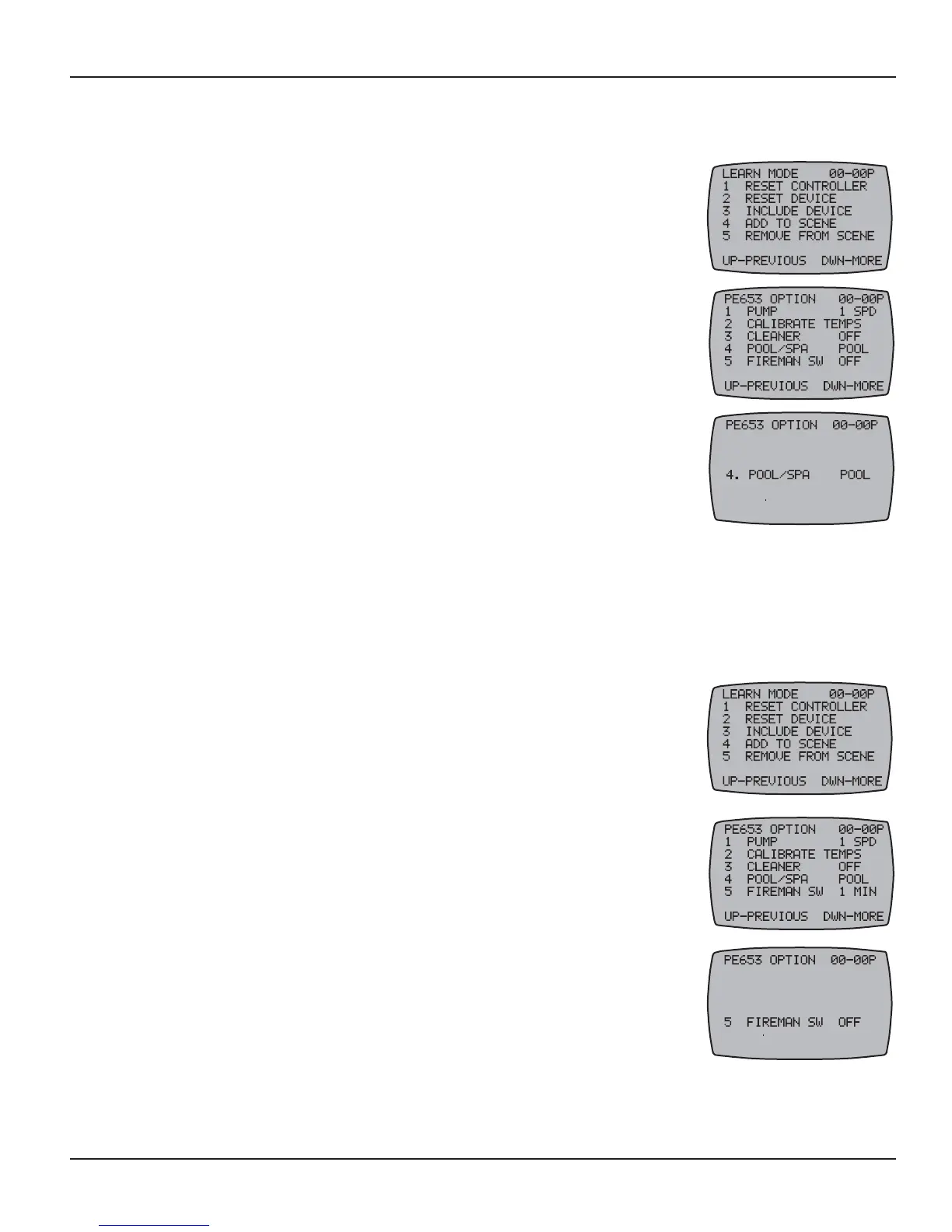

Configuring the System to Control a Pool, a Spa or Both
If necessary, press and release any button on the Hand-Held 1.
Controller to wake it from sleep. If the screen is not displaying
LEARN MODE, press and hold the <P/S> and <ENTER> buttons at
the same time to put the device into programming mode. You are in
programming mode when the LEARN MODE screen is displayed, as
shown at the right.
Press the 2. DOWN arrow button until you see the PE653 OPTION
screen, as shown.
Press and release the3. <4> function button to select POOL/SPA. The
screen refreshes, as shown.
Press the 4. UP or DOWN arrow button to select either POOL or SPA
or BOTH, then press the <ENTER> button. The screen displays the
word SUCCESSFUL, then returns to the PE653 OPTION screen.
Press the 5. <ENTER> button again to return to the TIME OF DAY
screen.
Configuring the Fireman Switch Time Interval
The Fireman Switch Time Interval is defined as the additional time the pump will run after the
heater circuit (circuit 5) is turned off to make sure the heater is cooled down before it shuts off.
NOTE: Refer to heater manufacturer recommendations for a specific time.
Set this interval using the Hand-Held Controller.
If necessary, press and release any button on the Hand-Held 1.
Controller to wake it from sleep. If the screen is not displaying
LEARN MODE, press and hold the <P/S> and <ENTER> buttons at
the same time to put the device into programming mode. You are in
programming mode when the LEARN MODE screen is displayed, as
shown at the right.
Press the 2. DOWN arrow button until you see the PE653 OPTION
screen, as shown.
Press and release the3. <5> function button to select FIREMAN SW.
The screen refreshes, as shown.
Press the 4. UP or DOWN arrow buttons to change from OFF to set
the number of minutes you want for the interval (up to 15 minutes
max), then press the <ENTER> button. The screen displays the word
SUCCESSFUL, then returns to the PE653 OPTION screen.
Press the 5. <ENTER> button again to return to the TIME OF DAY screen.
