Jungheinrich EKS 314 User Manual

H 1
0505.USA
H Transport and Commissioning
1 Transport
Depending on the height of the mast and local conditions, the truck can be transport-
ed in three different ways:
– Vertically, with mast and load lifting device assembled (for low heights)
– Vertically, with mast and load lifting device disassembled (for large heights)
– Vertically, with the mast folded.
IMPORTANT Only personnel trained by the manufacturer may assemble the truck on site,
commission it and instruct the driver.
2 Lifting by crane
IMPORTANT Only use lifting gear with sufficient capacity (for truck weight see section
“Truck data plate“ in Chapter D).
QwW The truck must only be lifted by crane with the battery removed.
– Park the truck securely
(see section “Park the truck securely“ in Chapter E).

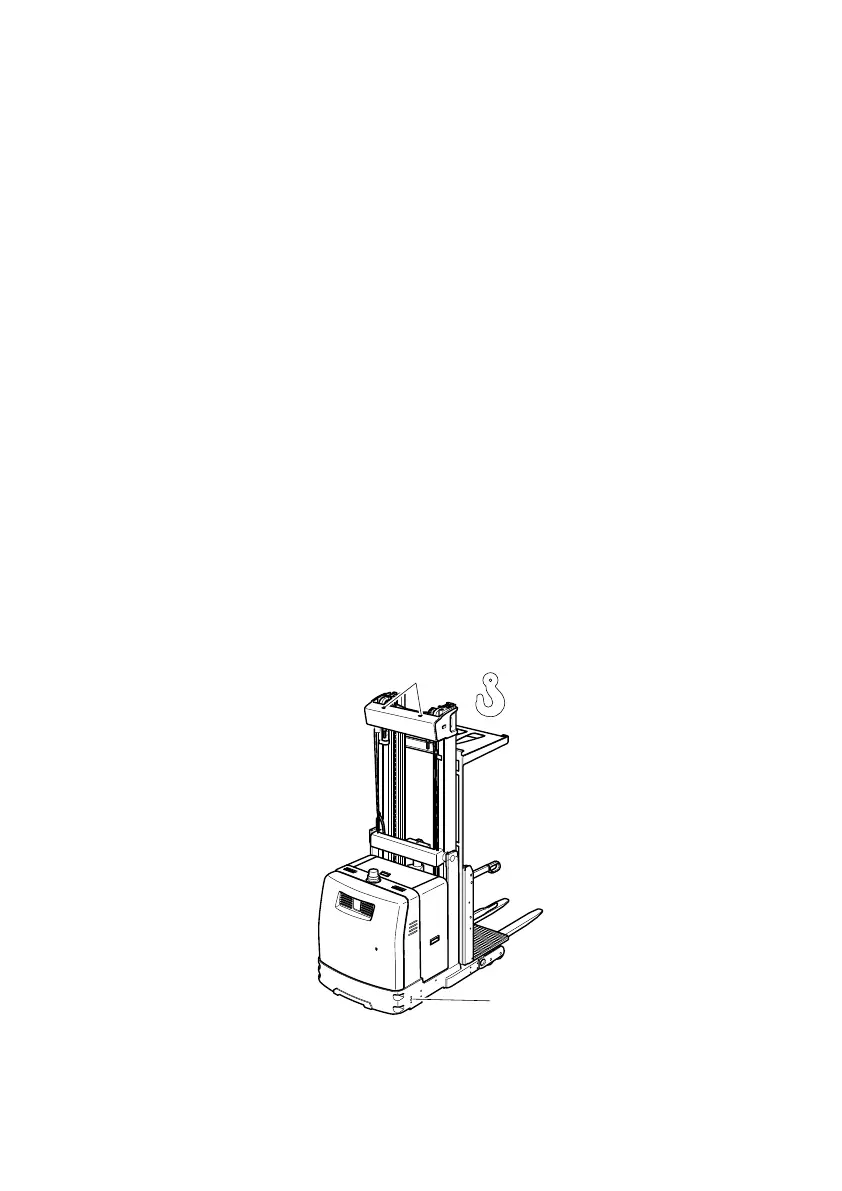

Loading by crane with mast assembled
– With the mast assembled, attach the crane slings to the mast cross member (1) and
to the side of the chassis (2).
IMPORTANT Attach the crane slings to the strap points (1, 2) so that the truck cannot slip.
1
2
H 1
0505.USA
H Transport and Commissioning
1 Transport
Depending on the height of the mast and local conditions, the truck can be transport-
ed in three different ways:
– Vertically, with mast and load lifting device assembled (for low heights)
– Vertically, with mast and load lifting device disassembled (for large heights)
– Vertically, with the mast folded.
IMPORTANT Only personnel trained by the manufacturer may assemble the truck on site,
commission it and instruct the driver.
2 Lifting by crane
IMPORTANT Only use lifting gear with sufficient capacity (for truck weight see section
“Truck data plate“ in Chapter D).
QwW The truck must only be lifted by crane with the battery removed.
– Park the truck securely
(see section “Park the truck securely“ in Chapter E).
Loading by crane with mast assembled
– With the mast assembled, attach the crane slings to the mast cross member (1) and
to the side of the chassis (2).
IMPORTANT Attach the crane slings to the strap points (1, 2) so that the truck cannot slip.
1
2
