3.5 Lifting – Lowering – outside and inside the rack lanes

QwW There is a risk of injury when the driver’s cab and the load lifting device are

lowered. There must be nobody in the danger zone.

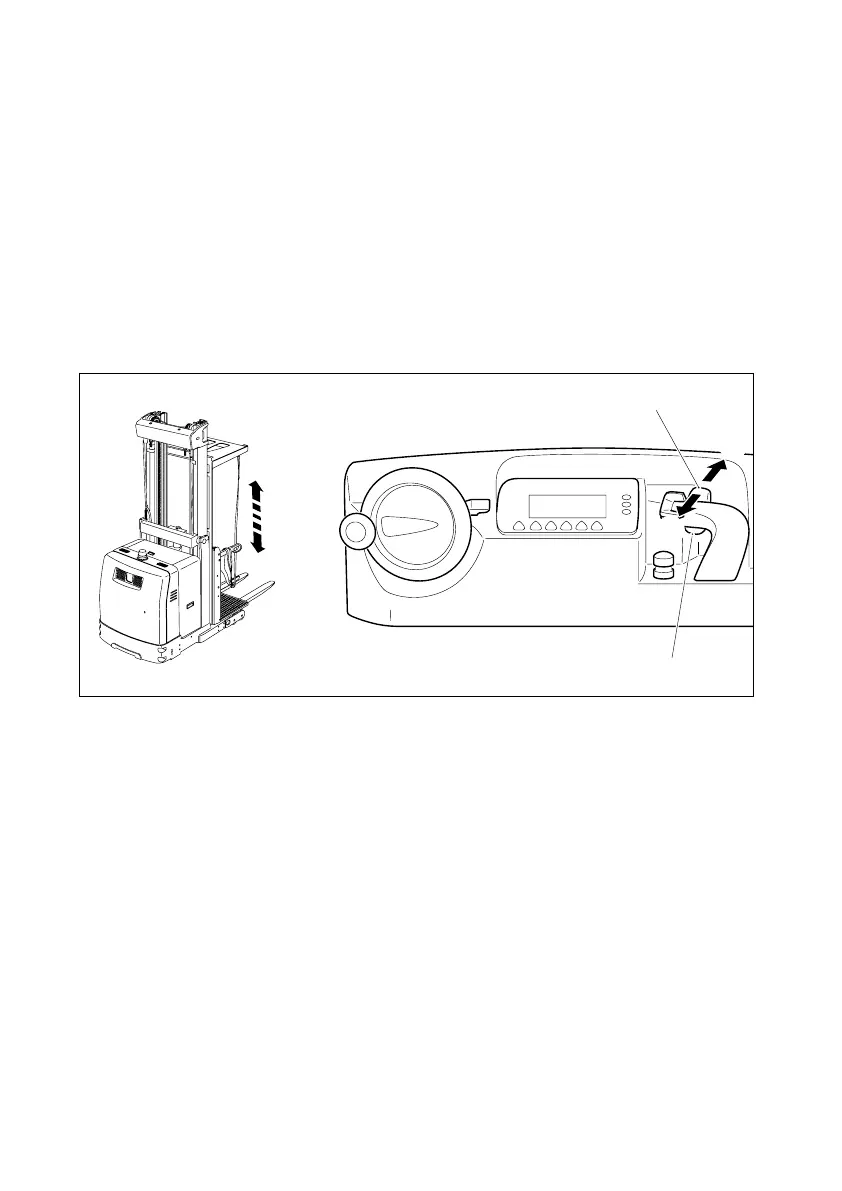

Lift – Lower (Main Lift)

– Apply the foot switch.

– At the same time, turn the hydraulic control button (2) “up”

- in drive direction (L) = lower

- in load direction (R) = raise

At the same time, turn the hydraulic control button (2) “down”

- in drive direction (R) = raise

- in load direction (L) = lower

NOTICE The lift and lower speeds are proportional to the degree of turn of the

hydraulic control switch.

NOTICE If the line break safety device actuates at a non-permitted lowering speed

(Error: Er 287), determine the cause and if there no leakage in the hydraulic

system, briefly raise the Main Lift and then lower it again.

3.6 Diagonal travel

QwW Diagonal travel (simultaneous travel and lifting/lowering) is possible when

you press the hydraulic control button (2) while simultaneously depressing

the travel control button (1).

Raise (R)

Lower (L))

2 “up“

2 “down“
