Jungheinrich EKS 314 User Manual

H 5
0505.USA

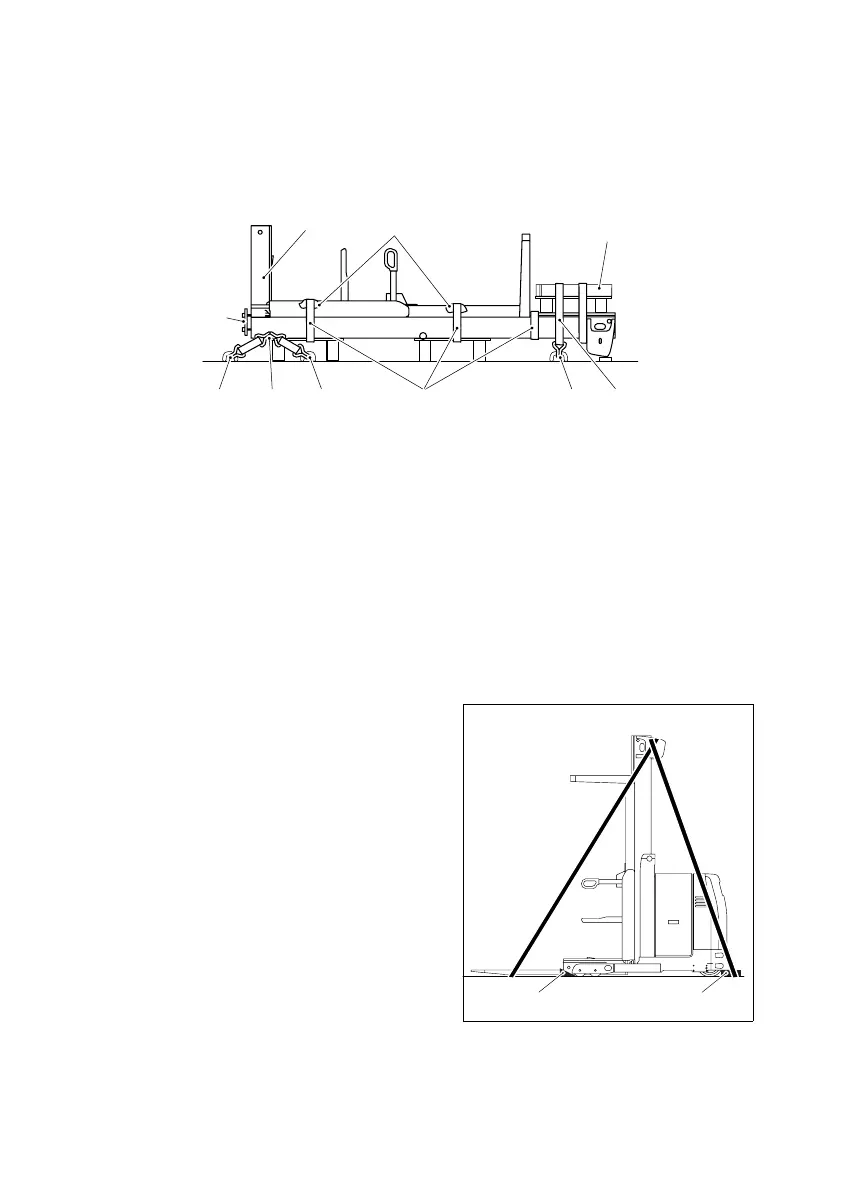

2.5 Mast transport safety
IMPORTANT Use a transport retaining device (12) to prevent the driver’s position carriage
(13) from sliding.
If the mast is stored on a pallet(s), fasten them securely to the mast (18).
Use the lower attachment latch (19) as the "mast bottom" strap point for securing to
the lorry/truck eyes (17).
Route the belt (16) over the lift cylinder/chains to act as the "mast top” strap point.
IMPORTANT Protect the belt placed over the lift chains with a suitable material (14).
Any supplied parts (forks (15), guide rollers etc.) can be attached to a pallet, which
can then be fastened to the mast.
2.6 Mast assembled
Safely transporting the truck with the mast assembled
NOTICE Only use belts with a rated capacity
of > 5 tons.
IMPORTANT When transporting, always relieve
the drive wheel by placing the entire
surface of a wooden beam (22)
underneath the counterweight
(minimum chassis width). In
addition, secure the load wheels
with blocks or chocks (23).
IMPORTANT If the truck’s battery is supplied in
the chassis, disconnect the battery.
At least 4 fastening/quick release belts, 2 on
the left and 2 on the right (20,21) must be at-
tached to the mast.
17 17181917
14
12
15
13
16
20
21
22
23
H 5
0505.USA
2.5 Mast transport safety
IMPORTANT Use a transport retaining device (12) to prevent the driver’s position carriage
(13) from sliding.
If the mast is stored on a pallet(s), fasten them securely to the mast (18).
Use the lower attachment latch (19) as the "mast bottom" strap point for securing to
the lorry/truck eyes (17).
Route the belt (16) over the lift cylinder/chains to act as the "mast top” strap point.
IMPORTANT Protect the belt placed over the lift chains with a suitable material (14).
Any supplied parts (forks (15), guide rollers etc.) can be attached to a pallet, which
can then be fastened to the mast.
2.6 Mast assembled
Safely transporting the truck with the mast assembled
NOTICE Only use belts with a rated capacity
of > 5 tons.
IMPORTANT When transporting, always relieve
the drive wheel by placing the entire
surface of a wooden beam (22)
underneath the counterweight
(minimum chassis width). In
addition, secure the load wheels
with blocks or chocks (23).
IMPORTANT If the truck’s battery is supplied in
the chassis, disconnect the battery.
At least 4 fastening/quick release belts, 2 on
the left and 2 on the right (20,21) must be at-
tached to the mast.
17 17181917
14
12
15
13
16
20
21
22
23
