E 13

1005.USA

3 Travelling, Steering, Braking

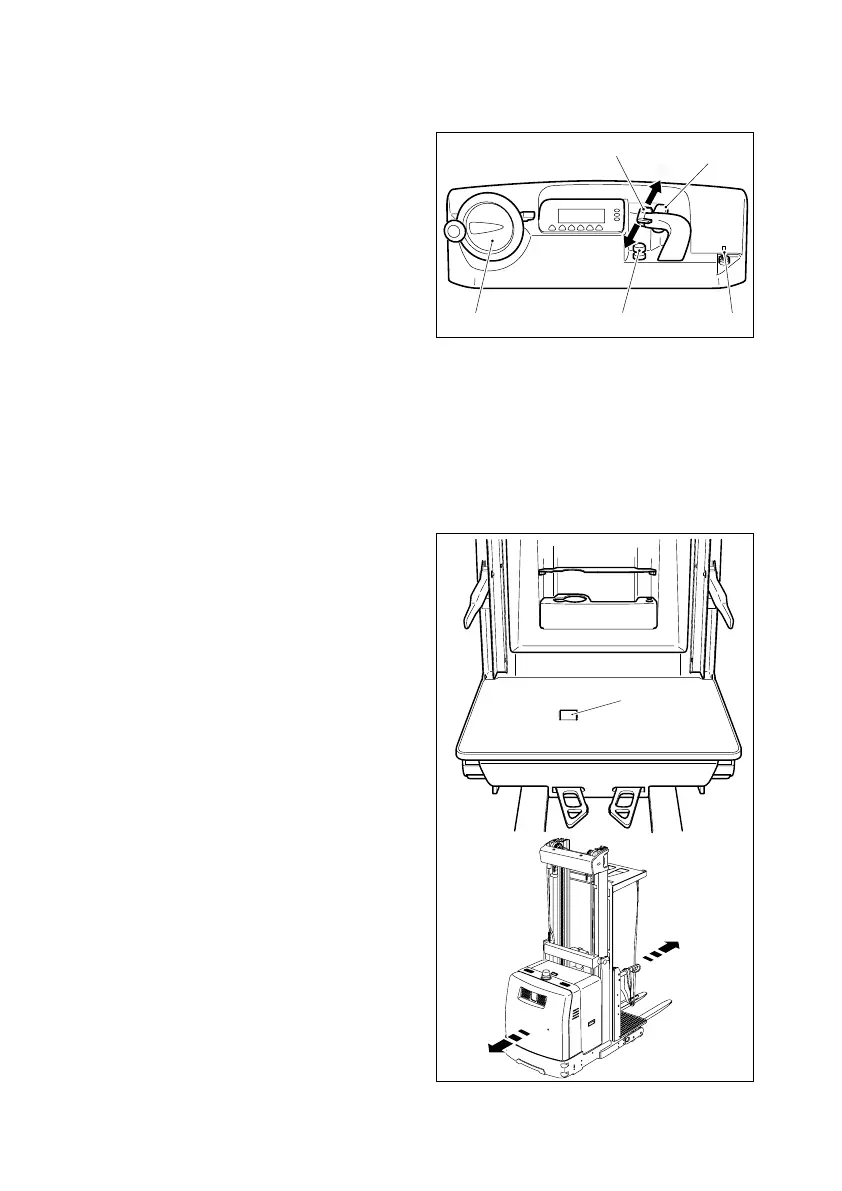

EMERGENCY DISCONNECT

– Press the EMERGENCY

DISCONNECT switch (5) down.

All truck movements are inhibited.

The operation of the switch must not

be affected by any objects placed in its

way.

3.1 Travelling

The truck can be driven in 3 modes:

Free travel, with wire or rail guidance.

The operating mode employed depends on the guidance system of the racking sys-

tem in use.

IMPORTANT Do not drive the truck unless the panels are closed and properly locked.

The foot switch must be kept depressed for travel.

3.1.1 Travelling in apron field

– Close the safety gates.

– Turn the EMERGENCY

DISCONNECT switch (5) to release it.

– Put the key in the key switch (3) and

turn it clockwise; the “operational” dis-

play lamp will be lit.

– Apply the foot switch (37).

– Carry out a test run, see Page E6.

– Raise the main lift with the hydraulic

control button (2) until the forks are

clear of the ground.

– Slowly turn the travel control button (1)

with your right thumb.

Turning in drive direction (F)

= Forward travel

Turning in load direction (R)

= Reverse travel

– You can control the travel speed by

continuing to turn or by adjusting the

travel control button.

– Use the steering wheel (10) to steer

the truck in the required direction.
