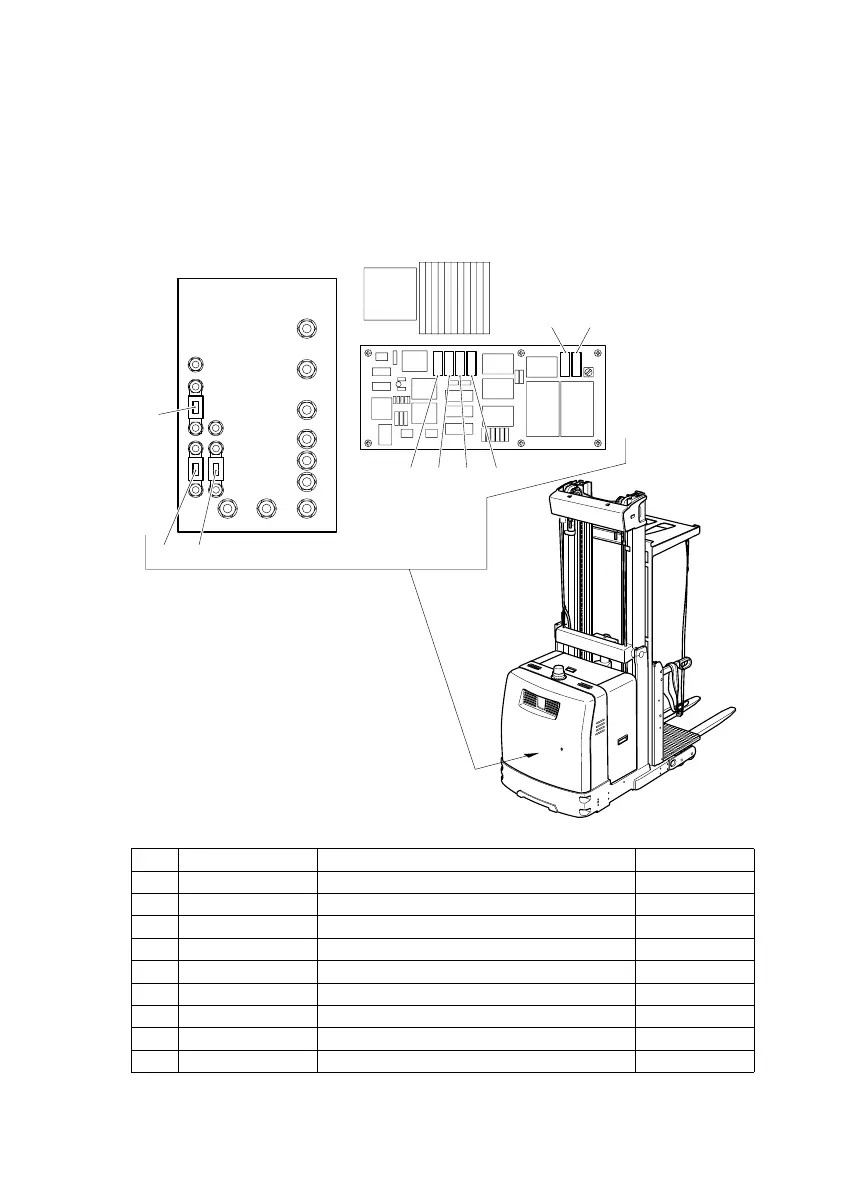

6.7 Checking electrical fuses
QwW Electric fuses must only be checked and replaced by authorized personnel.
– Prepare the truck for maintenance and repairs
(see chapter G).
– Remove the electronic compartment cover at the back.
– Check the fuse rating and condition in accordance with the table; replace if neces-
sary.
Item Description Current circuit Rating / type
8 1F11 Three-phase current drive control 250 A
9 3F10 Three-phase current steering control 35 A
10 2F15 Three-phase current hydraulic control 400 A
11 F2.1 DC/DC converter U1 input 48 V 48 V 10 A
12 5F1 Lighting and special equipment 48 V 48 V 10 A
13 F3.1 DC/DC converter U1 output 24 V 24 V 10 A
14 F1.2 DC/DC converter U16 input 48 V 48 V 4 A
15 5F2 DC/DC converter U16 output 24 V 24 V 6.3 A
16 1F3 Drive controller 1 A
89
10
11
12
16 15 14 13
