Jungheinrich EKS 314 User Manual

1005.USA
E 2

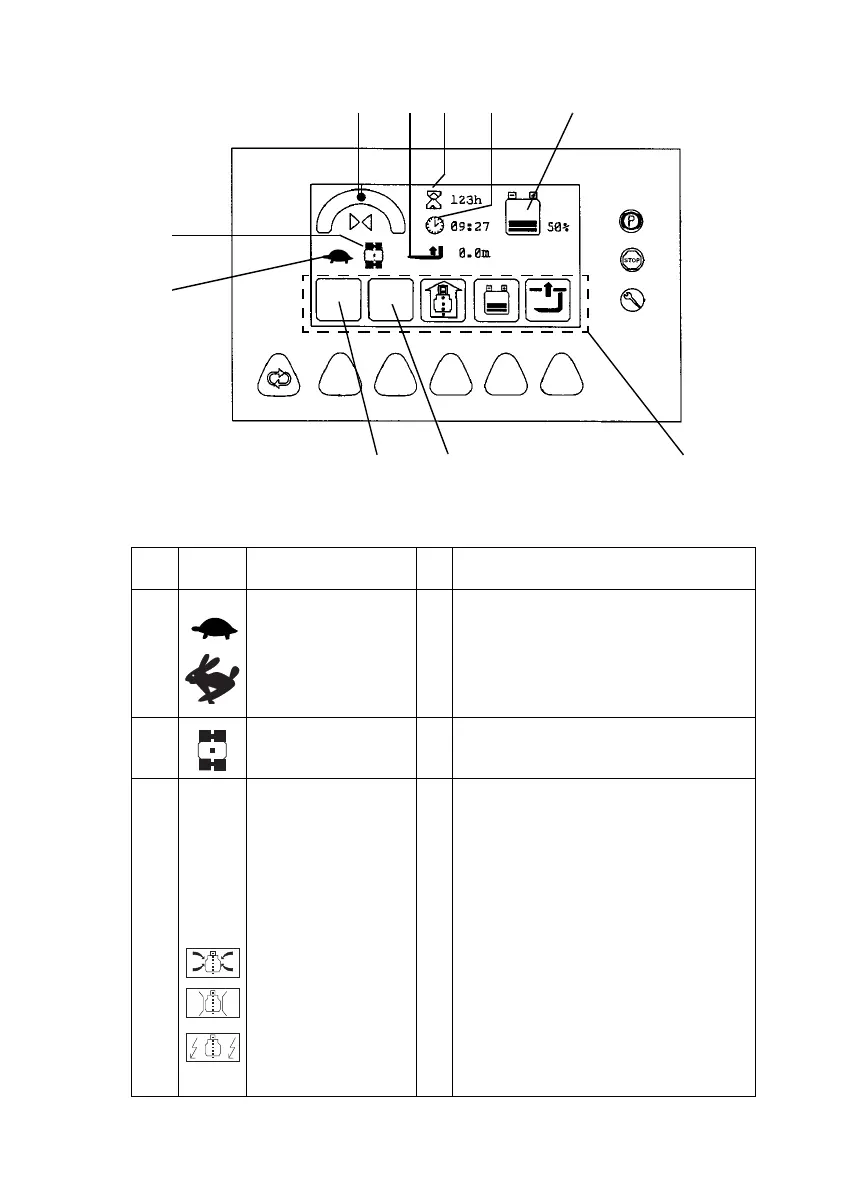

1.2 Display unit controls and displays
Upper range symbols
Item Symbol Control /
Display
Function
11 Displays possible
travel speeds:
Turtle
Rabbit
t
Creep mode
Max. travel speed
12 “Guidance wire recog-
nition” display
WG Sensors which have recognized the
guidance wire have a dark background
13 Steering angle display
changes with display
– “Tracking on”
– “Wire guided”
– “Deviation from
guidance wire”
t
RG
WG
WG
WG
WG
Indicates the current steering angle with
reference to the center position
After selecting “Rail guidance” the steer-
ing angle display permanently shows the
centre position
The steering angle display fades and is
replaced by guidance wire symbols
– when the truck is tracked onto the
guidance wire (inductive guidance)
– when the truck is automatically guided
by the guidance wire
– when the truck deviates without guid-
ance from the guidance wire and auto-
matic guidance
11
12
13 14 15 16 17
19
2021
1005.USA
E 2
1.2 Display unit controls and displays
Upper range symbols
Item Symbol Control /
Display
Function
11 Displays possible
travel speeds:
Turtle
Rabbit
t
Creep mode
Max. travel speed
12 “Guidance wire recog-
nition” display
WG Sensors which have recognized the
guidance wire have a dark background
13 Steering angle display
changes with display
– “Tracking on”
– “Wire guided”
– “Deviation from
guidance wire”
t
RG
WG
WG
WG
WG
Indicates the current steering angle with
reference to the center position
After selecting “Rail guidance” the steer-
ing angle display permanently shows the
centre position
The steering angle display fades and is
replaced by guidance wire symbols
– when the truck is tracked onto the
guidance wire (inductive guidance)
– when the truck is automatically guided
by the guidance wire
– when the truck deviates without guid-
ance from the guidance wire and auto-
matic guidance
11
12
13 14 15 16 17
19
2021
