CHAPTER 14
8-Port Serial GPIM
•
8-Port Serial GPIM Overview on page 97
•
8-Port Serial GPIM Components on page 98
•
8-Port Serial GPIM Key Features on page 99
•
8-Port Serial GPIM Hardware Specifications on page 99
•
8-Port Serial GPIM LEDs on page 100
8-Port Serial GPIM Overview
The 8-Port Serial Gigabit-Backplane Physical Interface Module (GPIM) is a hot-swappable
network interface card (NIC) that installs in the front slots of the SRX650 and SRX550
Services Gateways to provide physical connections to a WAN. It can be plugged in all
the slots of SRX650 and SRX550 Services Gateways. After you install the GPIM in the
services gateway, you configure a network interface on the GPIM. It provides higher port
density and flexible support for universal serial ports including a wide array of interface
options such as synchronous support.
NOTE: Only the SRX650 Services Gateway supports hot-swappable
functionality for GPIMs. The SRX550 Services Gateway does not support
hot-swappable functionality for GPIMs.
All the ports of the 8-Port Serial GPIM are connected to two dual stacked 136-pin VHDCI
connectors. Custom cables are used to connect from the VHDCI connectors to data
terminal equipment (DTE) or data circuit-terminating equipment (DCE). Different cables
are required to support different protocols. The protocols that a cable supports are
identified using the cable ID. The cables are labeled with a letter (refers to the cable type)
and four digits (unique serial numbers for the cables).

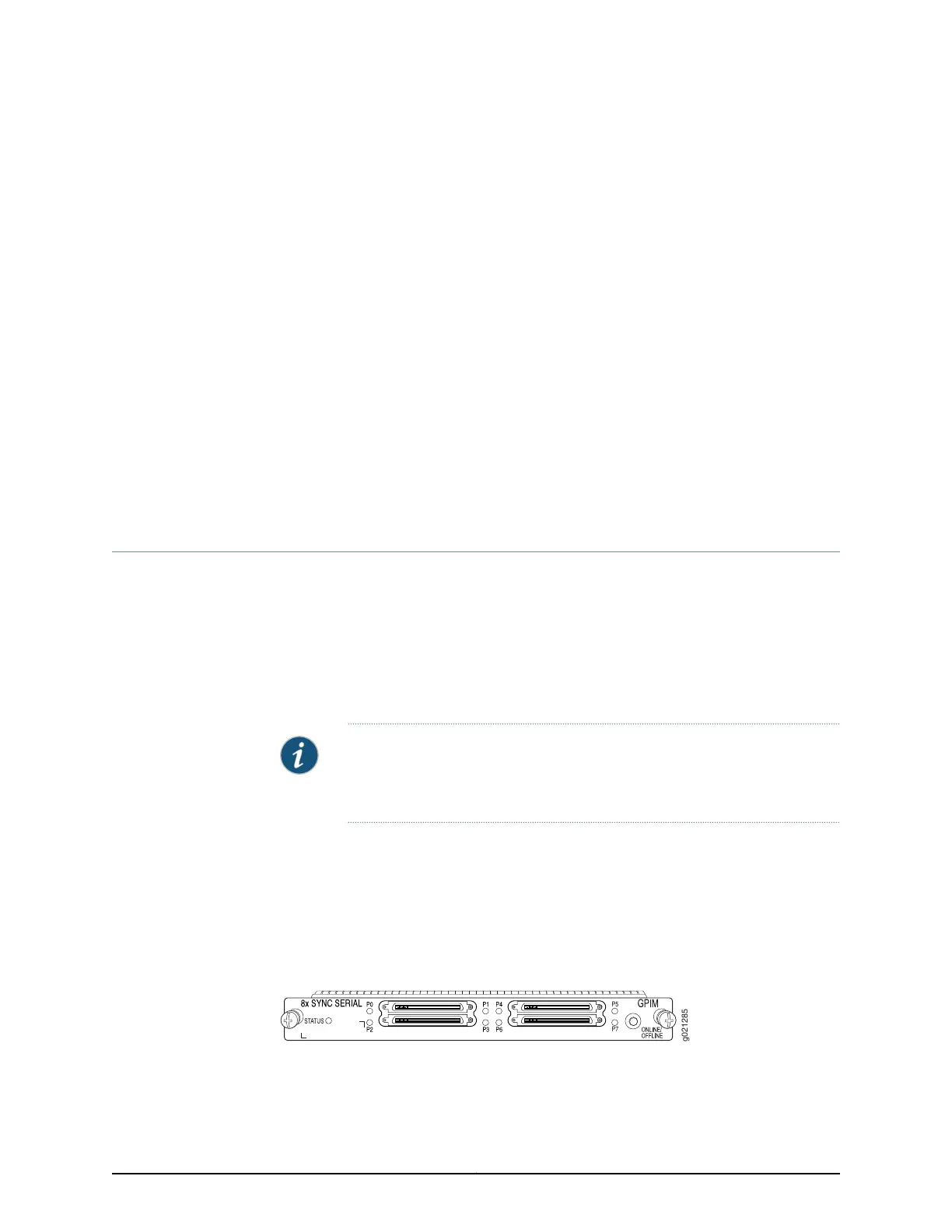

Figure 22: 8-Port Serial GPIM Front Panel
Related
Documentation
8-Port Serial GPIM Hardware Specifications on page 99•
• 8-Port Serial GPIM Components on page 98
97Copyright © 2015, Juniper Networks, Inc.
