Remote Control Unit

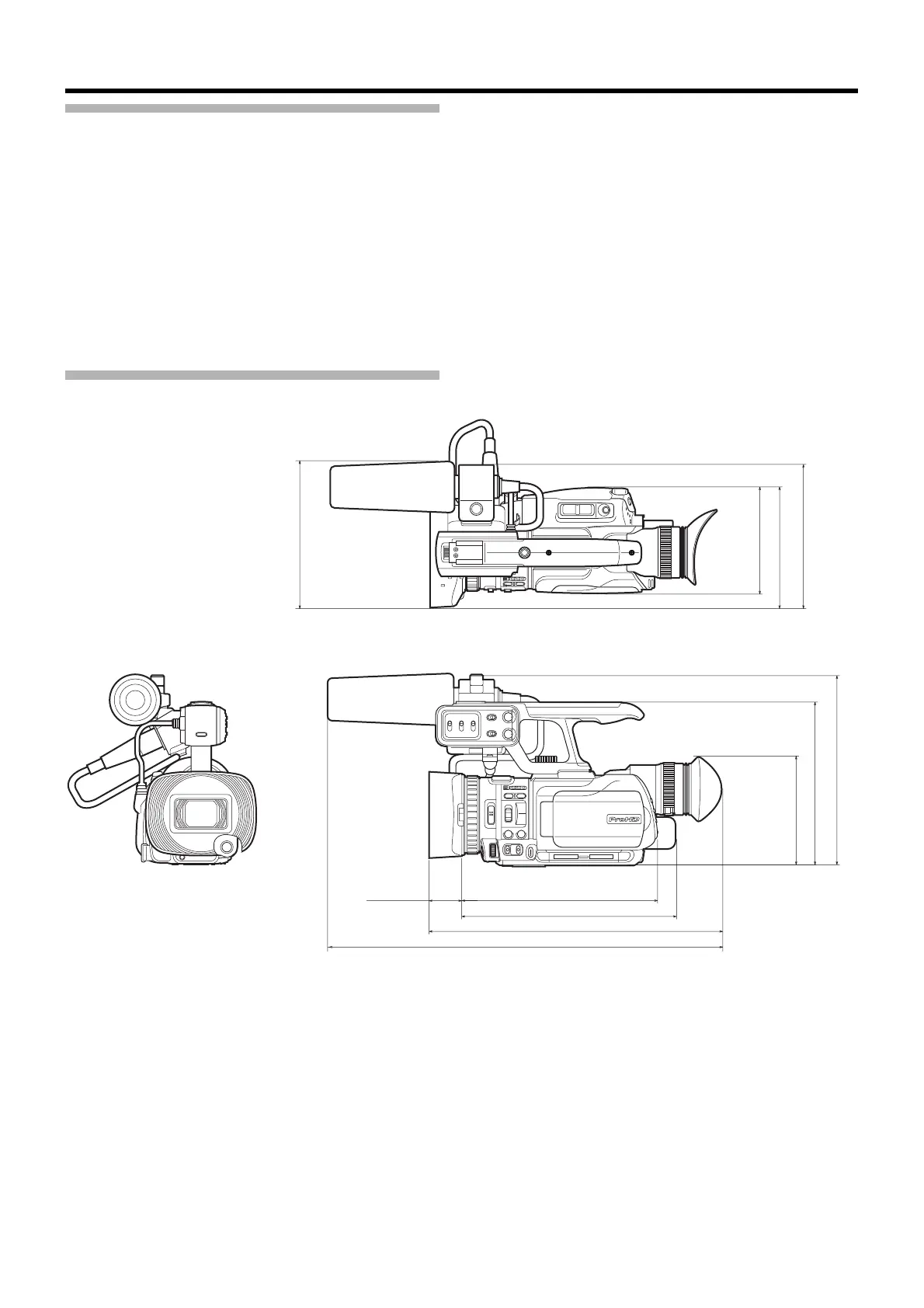

Dimensional Outline Drawing (Unit: mm)
Typ e : DC 3 V (button battery CR2025)
Battery life : Approx. 1 year (varies according to frequency
of use)
Operating
distance
: Approx. 5 m (16.4 ft) (along front axis)
Allowable
operating
temperature
: 0 f to 40 f (32 J to 104 J)
Dimensions : 42 mm (W) × 14.5 mm (H) × 91 mm (D)
(1-6/8" x 9/16" x 3-5/8")
Mass : Approx. 30 g (0.07 Ibs)
(including button battery)
CH-2 INPUT
CH-1
3
4
5
2
1
2
3
0
CH-2
AUDIO INPUT
AUTO MANUAL
AUTO MANUAL
USER1
GAIN
L-
M-
H-
B-
A-
PRST-
WHT.BAL
IRIS A/M
AB
FOCUS
ZOOM
ON
ND
FILTER
OFF
USER2
AF/MF FULL AUTO
AUDIO
SELECT
INPUT1
INPUT2
- LINE -
- MIC -
MIC+48V
AWB
INPUT2
INPUT1
REC / 6
TW
135 114 100
102 154 179
184
200
272
366
138
30
* The specifications and appearance of this product are subject to changes for further improvement without prior notice.
(without battery)
(with battery)
GY-HM150U.book Page 99 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
