JVC GY-HM150U User Manual

40
Shooting
Presetting the Time Code/User’s Bit
The time code and user’s bit can be set in the [TC/UB] menu.
(A Page 69)
There are two ways to display the [TC/UB] menu.
A Display the menu screen using the [MENU/THUMB]
button, then select the [TC/UB] menu. (A Page 58)
B Assign the ATC/UBB function to a user button and press
the button. ( A Page 19, 66 )
* Set [Main Menu]B[Camera Function]B[Switch
Set]B[USER1]/[USER2]/[LOLUX/3]/[C.REVIEW/4]/
[ZEBRA/5]/[REC/6] to ATC/UBB. (A Page 66)
 Setting the time code
1 Use the method above to display the [TC/UB] menu.
2 Set the run mode of the time code generator.
Set [TC Generator] to ARec RunB or AFree RunB.
(A Page 69)
● A Rec Run B :The time code operates in the run mode only
during recording.
● A Free Run B :The time code operates in the run mode at all
times.
3 Set the framing mode of the time code generator.
Set [Drop Frame] to ANon DropB or ADropB. (A Page 69)
●
A Non Drop B : The time code generator operates in the
non-drop frame mode. Use this setting when
placing emphasis on the number of frames.
● A Drop B : The time code generator operates in the
drop frame mode. Use this setting when
placing emphasis on the recording time.
Memo :
● ADropB cannot be set when [Record Format]B[Frame &
Bit Rate] in the [Record Set] menu is set to 50, 25, or 24.
4 Select [TC Preset] and press the center of the set
lever.
The time code preset screen appears.
5 Set the time code (hour, minute, second, frame).
●
Push the set lever up or down to change the setting value.
● Push the set lever to the left or right to jump to the next digit.
Memo :
● Press the [USER2] button to set all digits to “0”.
6 Confirm the time code setting.
●
Press the center of the set lever.
● Returns to the [TC/UB] menu.
 Closing the menu screen
1 Press [MENU/THUMB].
The normal screen is displayed.
Presetting the user’s bit
1 Select [UB Preset] in the [TC/UB] menu. ( A Page 69)
The method for setting the user’s bit is the same as the
method for setting the time code.
An alphanumeric character between 0 to 9 and A to F can be
specified for each digit.
Time Code Recording
Setting (continued)
Cursor

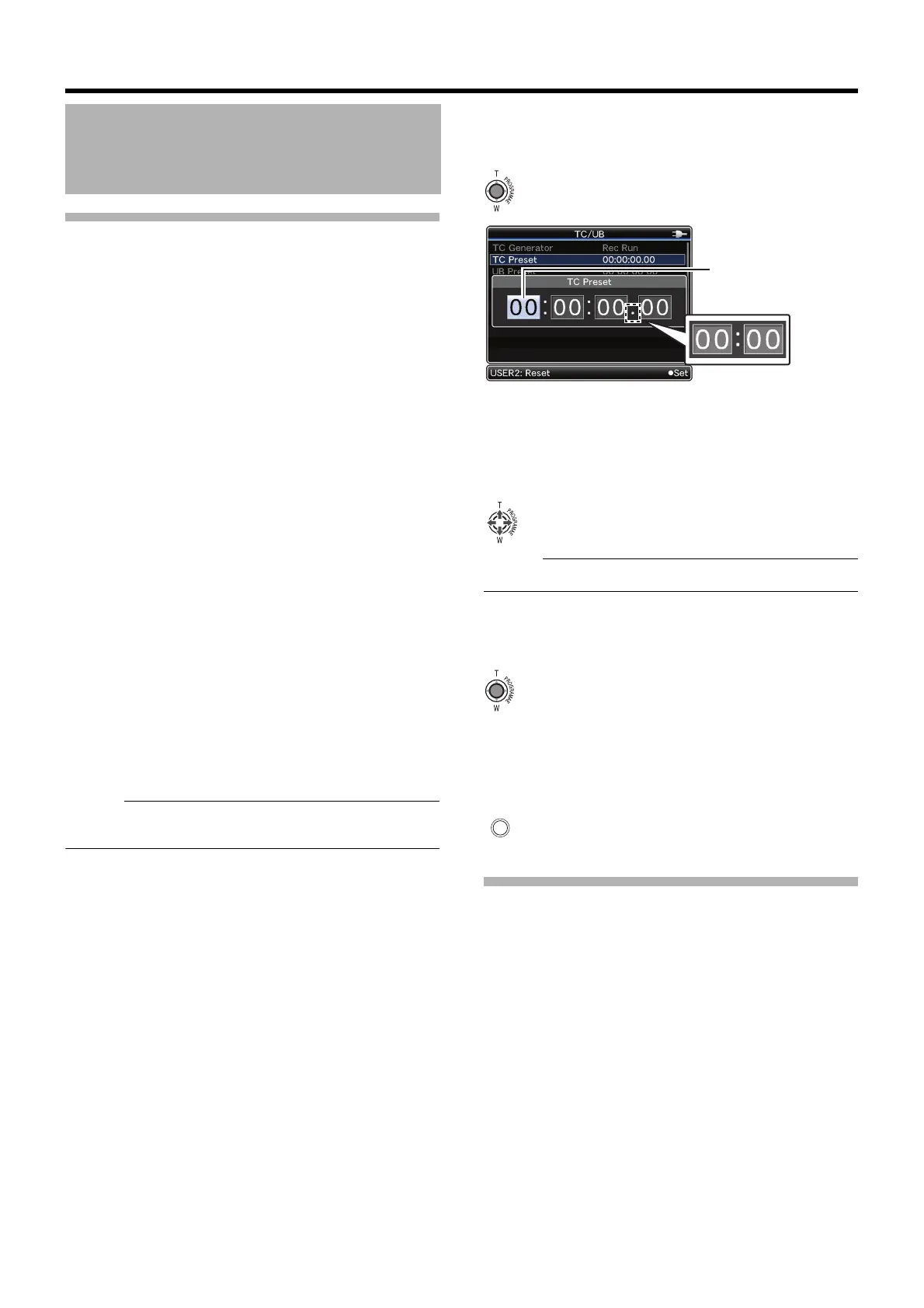

[TC Preset] Screen
(During drop frame)
During non-drop frame
MENU/
THUMB
GY-HM150U.book Page 40 Monday, September 5, 2011 1:48 AM
