JVC GY-HM150U User Manual

16

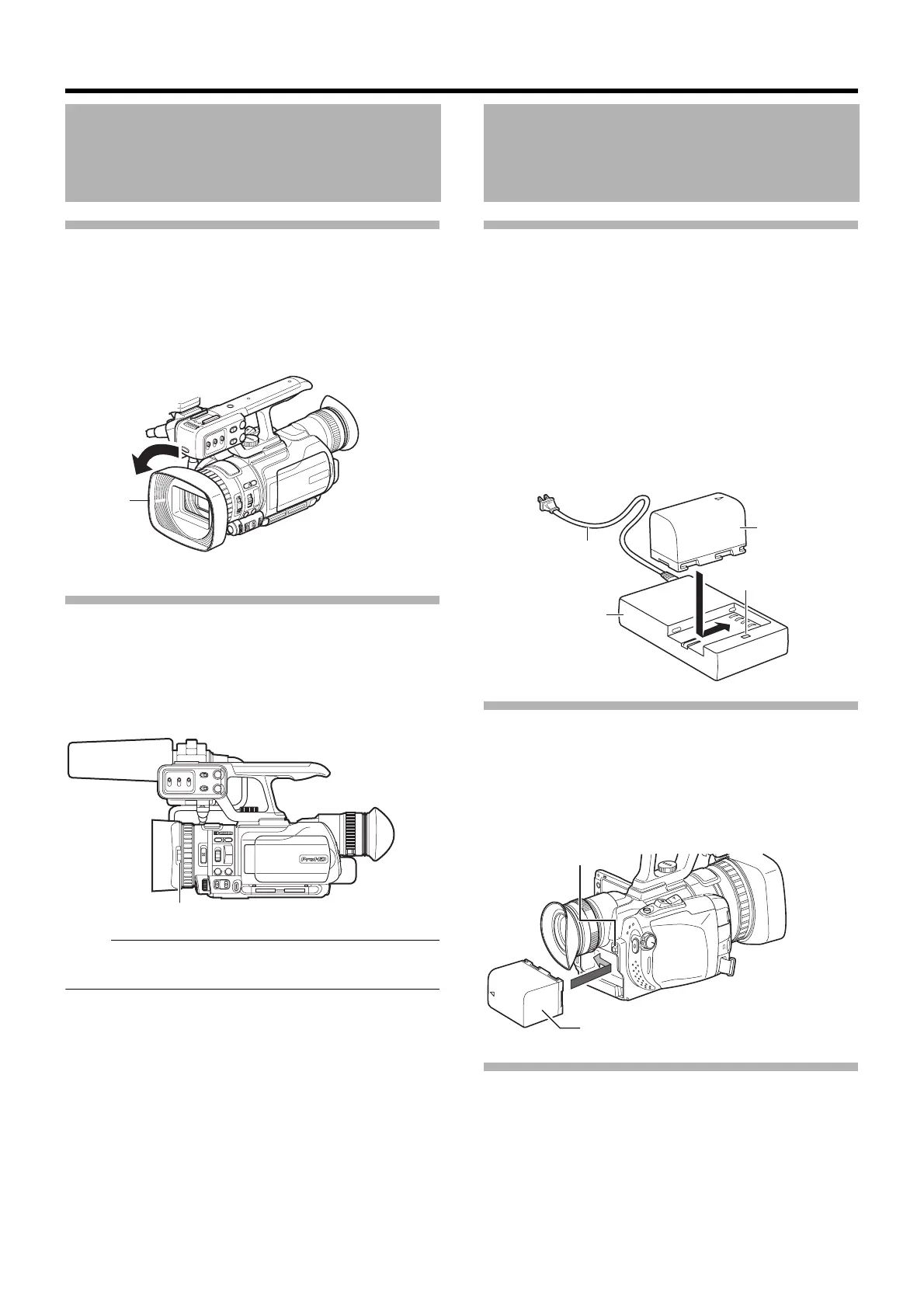

Preparations
Removing the Hood
Remove the hood when attaching a filter (with external
diameter 50 mm and below), teleconverter or wide converter
to the front of the lens.
 Turn the hood in an anti-clockwise direction to
remove it.
Lens Cover
 Use the lens cover switch to open or close the lens cover.
Before shooting, open the lens cover.
When this camera recorder is not in use, close the lens cover
to protect the lens.
Note :
● Do not press against the lens cover with force. Doing so
may damage the lens or the cover.
Charging the Battery
Charge with the supplied battery charger.
1 Connect the battery charger to a power outlet using the
provided power cord.
2 Attach the supplied battery to the battery charger by
pressing and sliding it in the direction of the arrow.
● When battery charging starts, the indicating lamp blinks.
● When charging is complete, the indicating lamp lights up.
3 Remove the battery by sliding it in the opposite
direction after charging is complete.
Attaching the Battery
1 Turn off the power of the camera recorder.
2 Attach the supplied battery.
With the battery mark (D) on the left, insert it into the camera
recorder, and slide it to the left.
Removing the Battery
1 Turn off the power of the camera recorder.
2 Press the battery lock release button and slide the
battery to the right.
Settings and Adjustments
Before Use (continued)
Hood
CH-2 INPUT
CH-1
3
4
5
2
1
2
3
0
CH-2
AUDIO INPUT
AUTO M ANUAL
AUTO M ANUAL
USER1
AB
FOCUS
ZOOM
ON
ND
FILTER
OFF
USER2
AF/MF FULL AUTO
AUDIO
SELECT
INPUT1
INPUT2
- LINE -
- MIC -
MIC+48V
INPUT1
INPUT2
GAIN
L-
M-
H-
B-
A-
PRST-
WHT.BAL
IRIS A/M
Lens Cover Switch
Batteries
To Power Outlet
Power Cord
Battery
Charger
Indicating Lamp
Battery
Battery Lock Release
Button
Battery
