JVC GY-HM150U User Manual

20
Preparations

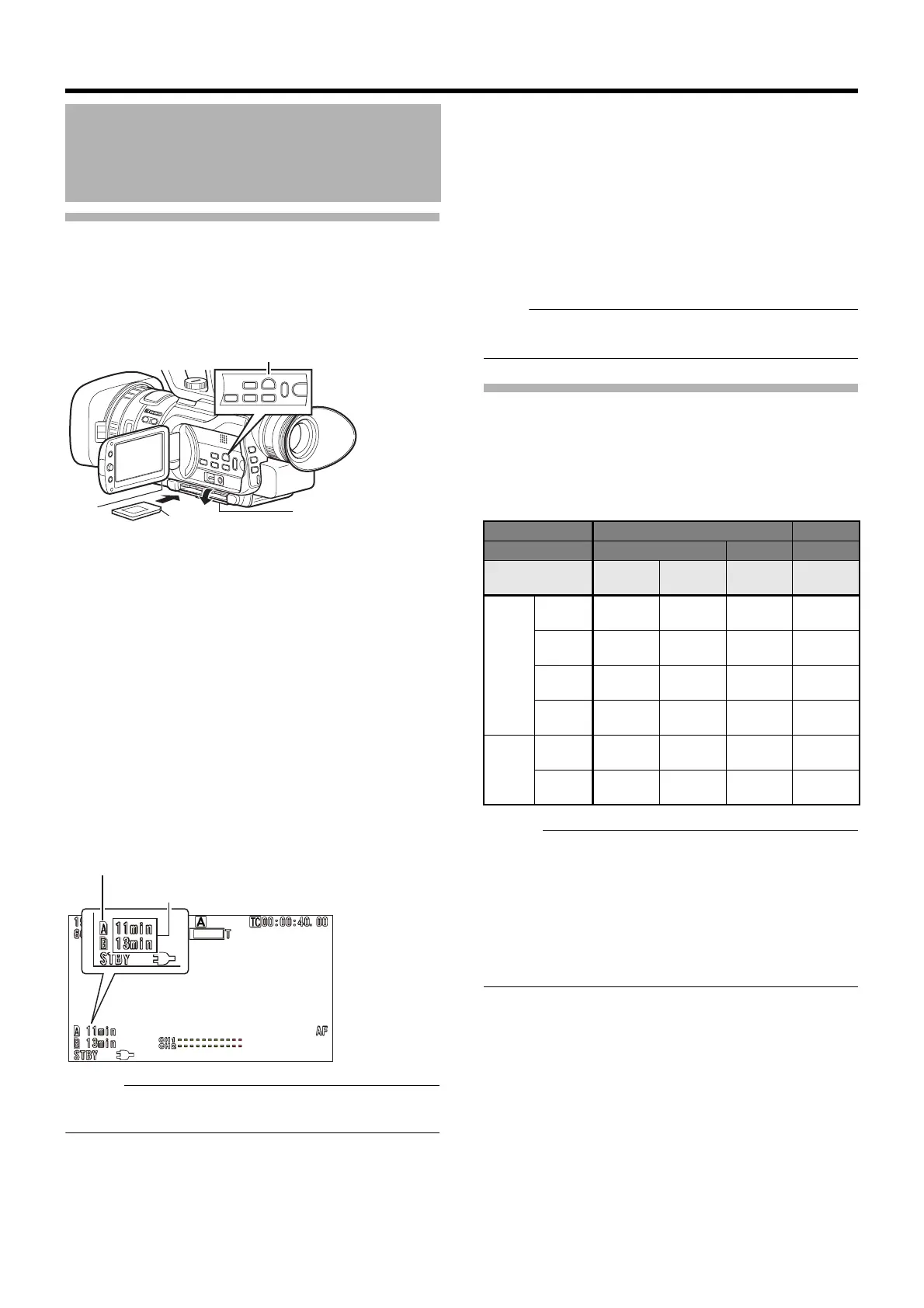

Inserting an SDHC/SDXC Card
This camera recorder comes with two SDHC/SDXC card
slots. (Slot A and Slot B)
 SDHC/SDXC cards to use
See [SDHC/SDXC Cards] (A Page 7 ).
* Preparation: Turn off the power.
1 Open the door.
2 Insert an SDHC/SDXC card with the notched corner
first.
3 Close the door.
 Selecting a card slot
1 Press the [SLOT SEL] button.
● Doing so switches between Slot A and Slot B.
● When an SDHC/SDXC card is inserted, the status indicator
of the selected slot lights up.
● When data in the SDHC/SDXC card is being accessed, the
access lamp and status indicator blink.
Memo :
● If the SDHC/SDXC card to switch to cannot be read, slot
switching will not be performed.
 Removing the SDHC/SDXC card
1 Open the door.
2 Make sure the SDHC/SDXC card to be removed is not
being accessed (status indicator blinking).
3 Push the SDHC/SDXC card and remove it from the
slot.
4 Close the door.
Note :
● Do not touch the metal part of the SDHC/SDXC card when
inserting or removing the SDHC/SDXC card.
Estimated Recordable Time of SDHC/SDXC
Cards
The estimated recordable time is only a guide. Differences
may occur depending on the SDHC/SDXC card in use and
the battery condition.
( A Page 63 [Camera Resolution])
( A Page 63 [Frame & Bit Rate])
Memo :
● If the SDHC/SDXC card contains files recorded by
devices other than this camera recorder or files that are
saved from a PC, the recordable time may be shorter or
data may not be properly recorded.
● Up to 600 clips per [File Format] can be recorded to one
SDHC/SDXC card on this camera recorder. When 600
clips are recorded to one card, the remaining space is
displayed as 0 min regardless of the estimated recordable
time, and no further recording can be performed.
SDHC/SDXC Cards
C.REVIEW/4 ZEBRA/5
SLOT SEL
DISPLAY
LOLUX/3
Door
Notched Corner
A,B
[SLOT SEL] Button
Remaining Time
Selected slot during Camera mode
File Format MOV/MP4 MOV/AVI
Bit Rate SP HQ SP
Camera
Resolution
720p 1080i
720p/
1080i
480i/576i
SDHC
Card
4 GB
Approx.
22 min
Approx.
17 min
Approx.
12 min
Approx.
15 min
8 GB
Approx.
45 min
Approx.
35 min
Approx.
25 min
Approx.
30 min
16 GB
Approx.
90 min
Approx.
70 min
Approx.
50 min
Approx.
60 min
32 GB
Approx.
180 min
Approx.
140 min
Approx.
100 min
Approx.
120 min
SDXC
Card
64 GB
Approx.
360 min
Approx.
280 min
Approx.
200 min
Approx.
240 min
128 GB
Approx.
720 min
Approx.
560 min
Approx.
400 min
Approx.
480 min
GY-HM150U.book Page 20 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
