Introduction

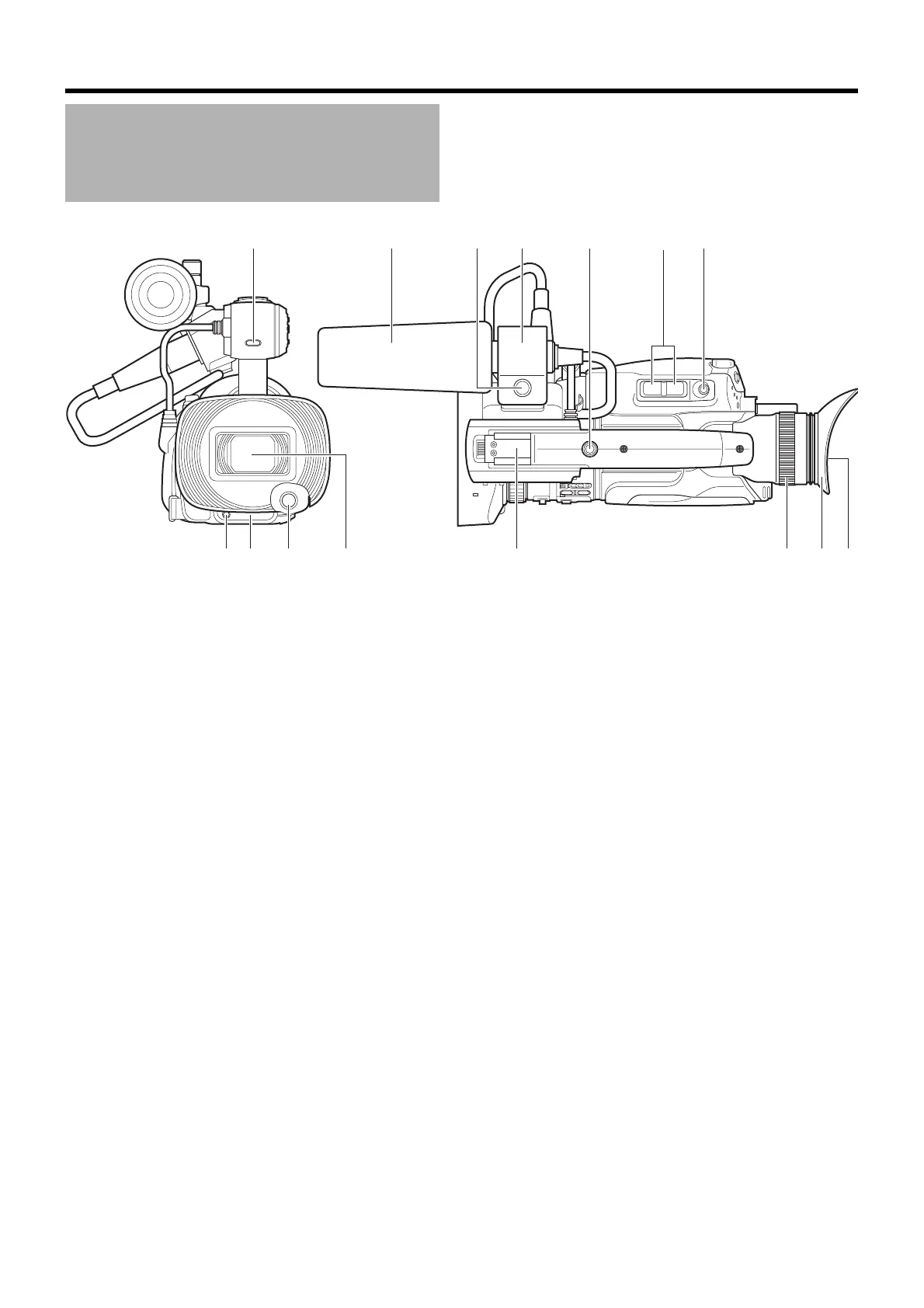

A Tally lamp (A Page 19)
B Tally lamp ( A Page 19)
C Remote control sensor ( A Page 15)
D [AWB] Auto White Balance button ( A Page 33)
E Lens/Lens cover ( A Page 18)
F Shoe
For mounting separately sold lights and accessories.
G Eyepiece focus lever
Lever for adjusting the visibility. It is found on the under side.
H Eyepiece
I Viewfinder ( A Page 22)
J [REC/6] Record trigger/User 6 Button ( A Page 27)
Button for starting or stopping recording.
You can also use it as a user button by assigning a specific
feature in the menu setting to this button. (A Page 19)
K Zoom lever ( A Page 28)
For zooming to the Tele (T) or Wide (W) end.
L Accessory mounting screw hole
M Microphone holder ( A Page 15)
For mounting an external microphone.
N Knob
Knob for locking the microphone in place.
O External microphone ( A Page 15)
Names of Parts
AWB
REC / 6
TW
MON K
B
A
DCE
J
FGHI
L

Front
 Top
GY-HM150U.book Page 10 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
