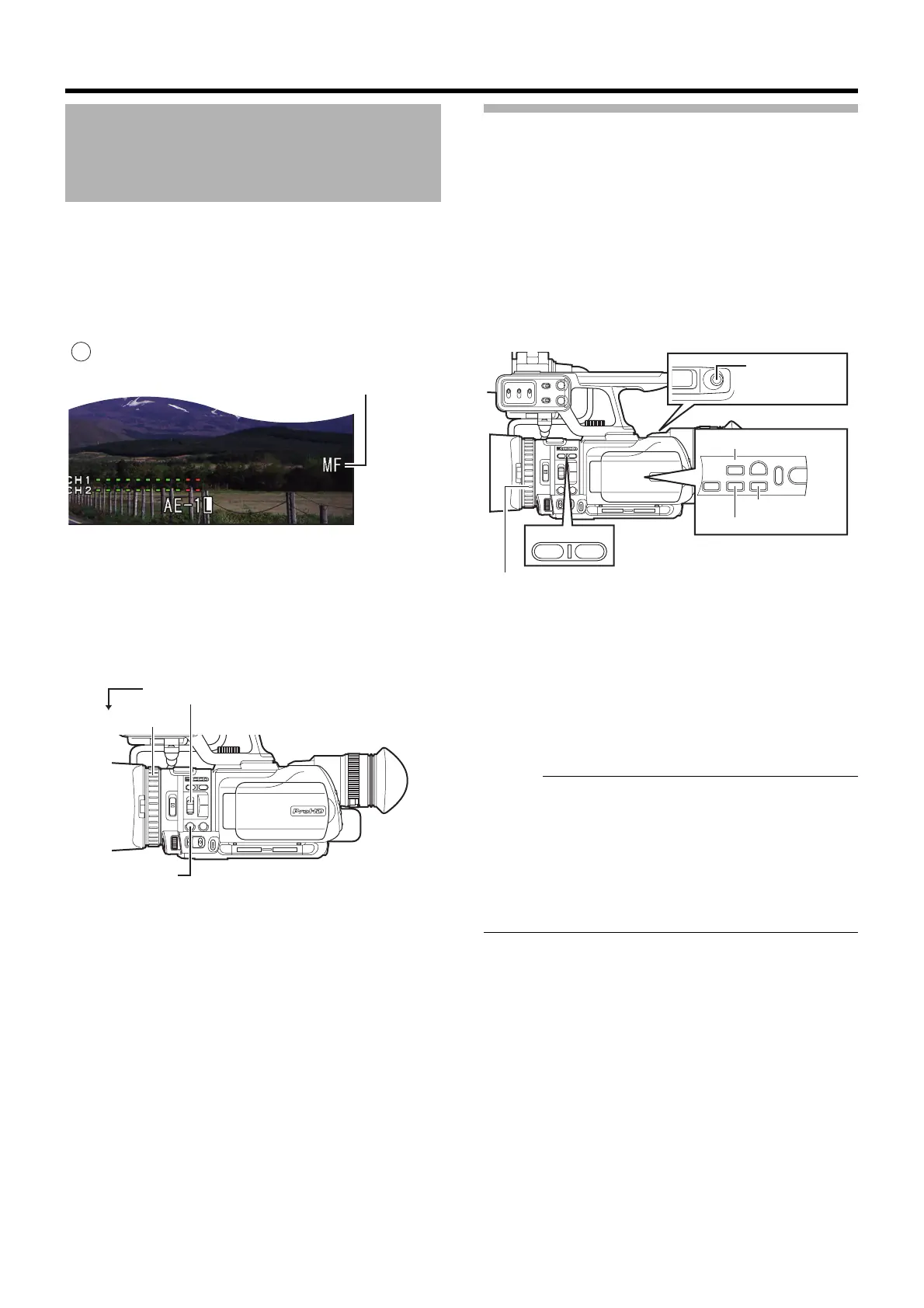

JVC GY-HM150U User Manual

29
Applicable to: Full Auto shooting mode A, Manual shooting
mode M
 Setting to the Manual Focus mode
1 Press [AF/MF] to display the Manual Focus icon (MF) on
the screen.
2 Set the [FOCUS/ZOOM] ring switch to AFOCUSB.
Doing so enables you to use the manual ring of the lens as a
focus ring.
3 Turn the manual ring to adjust the focus.
Using the Focus Assist function on the right helps to enable
easy focusing.
Using the Focus Assist Function
This feature temporarily switches the screen to black-and-
white, and adds color to the contour of the focused image.
There are two ways to activate the Focus Assist function.
A Set [LCD/VF] menu B[Shooting Assist]B[Focus Assist] to
AOnB. (A Page 70)
B Assign the Focus Assist function to a user button and
press the button. ( A Page 19, 66 )
* Set [Main Menu]B[Camera Function]B[Switch
Set]B[USER1]/[USER2]/[LOLUX/3]/[C.REVIEW/4]/
[ZEBRA/5]/[REC/6] to AFocus AssistB. (A Page 66)
* Turn the manual ring to add color to where you want to
focus.
 Canceling Focus Assist
Set [LCD/VF] menu B[Shooting Assist]B[Focus Assist] to
AOffB.
Alternatively, press the user button that is assigned the
Focus Assist function.
Memo :
● To change the contour color, set using [LCD/VF] menu
B[Shooting Assist]B[Color]. (ABlueB/AGreenB/ARedB)
●
When using the Focus Assist function at a dark place, the
point where color is added may appear grainy, making the
contour color unclear.
● When [Display On TV] in the [A/V Out] menu is set to
AOnB, the Focus Assist display is output on the external
monitor. Set [Display On TV] to AOffB to clear the display
on external monitors. (A Page 73)
Adjusting the Focus
Manually
AF/MF
Manual Focus Mode
USER1
AB
FOCUS
ZOOM
ON
ND
FILTER
OFF
USER2
AF/MF FULL AUTO
GAIN
L-
M-
H-
B-
A-
PRST-
WHT.BAL
IRIS A/M
Ring switch set to
AFOCUSB
Manual Ring
[AF/MF]
CH-2 INPUT
CH-1
3
4
5
2
1
2
3
0
CH-2
AUDIO INPUT
AUTO MANUAL
AUTO MANUAL
USER1
AB
FOCUS
ZOOM
ON
ND
FILTER
OFF
USER2
AF/MF FULL AUTO
AUDI O
SELECT
INPUT1
INPUT2
- LINE -
- MIC -
MIC+48V
INPUT1
INPUT2
GAIN
L-
M-
H-
B-
A-
PRST-
WHT.BAL
IRIS A/M
USER1 USER2
C.REVIEW/4 ZEBRA/5
SLOT SEL
DISPLAY
LOLUX/3
REC / 6
W
[LOLUX/3] Button
[C.REVIEW/4] Button
[ZEBRA/5] Button
[REC/6] Button
Manual Ring
