JVC GY-HM150U User Manual

37
Applicable to: Manual shooting mode M
Displays the color bars on the screen and starts recording.
(See below)
1 Set to the Manual shooting mode.
2 Display the color bars.
There are two ways to display the color bars.
A Set [Bars] in the [Camera Function] menu to AOnB.
(A Page 65)
B Assign the color bars function to a user button and press
the button. ( A Page 19, 66 )
* Set [Main Menu]B[Camera Function]B[Switch
Set]B[USER1]/[USER2]/[LOLUX/3]/[C.REVIEW/4]/
[ZEBRA/5]/[REC/6] to ABarsB. (A Page 66)
● The color bars appears.
Memo :
● The color bars will not appear when in the Full Auto
shooting mode, when the [Program AE] selection screen
is displayed, and when [System Definition] is set to ASD
(DV)B.
 Clearing the color bars display
1 Set [Bars] in the [Camera Function] menu to A Off B .
Alternatively, press the user button that is set as
A Bars B .
Memo :
● You can also cancel the color bars display by performing
the following operations.
• Open the menu screen.
• Set to a mode other than Camera mode.
Applicable to: Full Auto shooting mode A, Manual shooting
mode M
The picture quality of the camera can be set using the
[Camera Process] menu.
As the adjustments are shown on the screen, you can adjust
the values while checking the picture quality on the camera.
●
[Detail]
● [Knee]
● [Gamma]
● [Color Matrix]
● [Color Gain]
Memo :
● For details of the respective items, see the [Camera
Process] menu. (A Page 67)

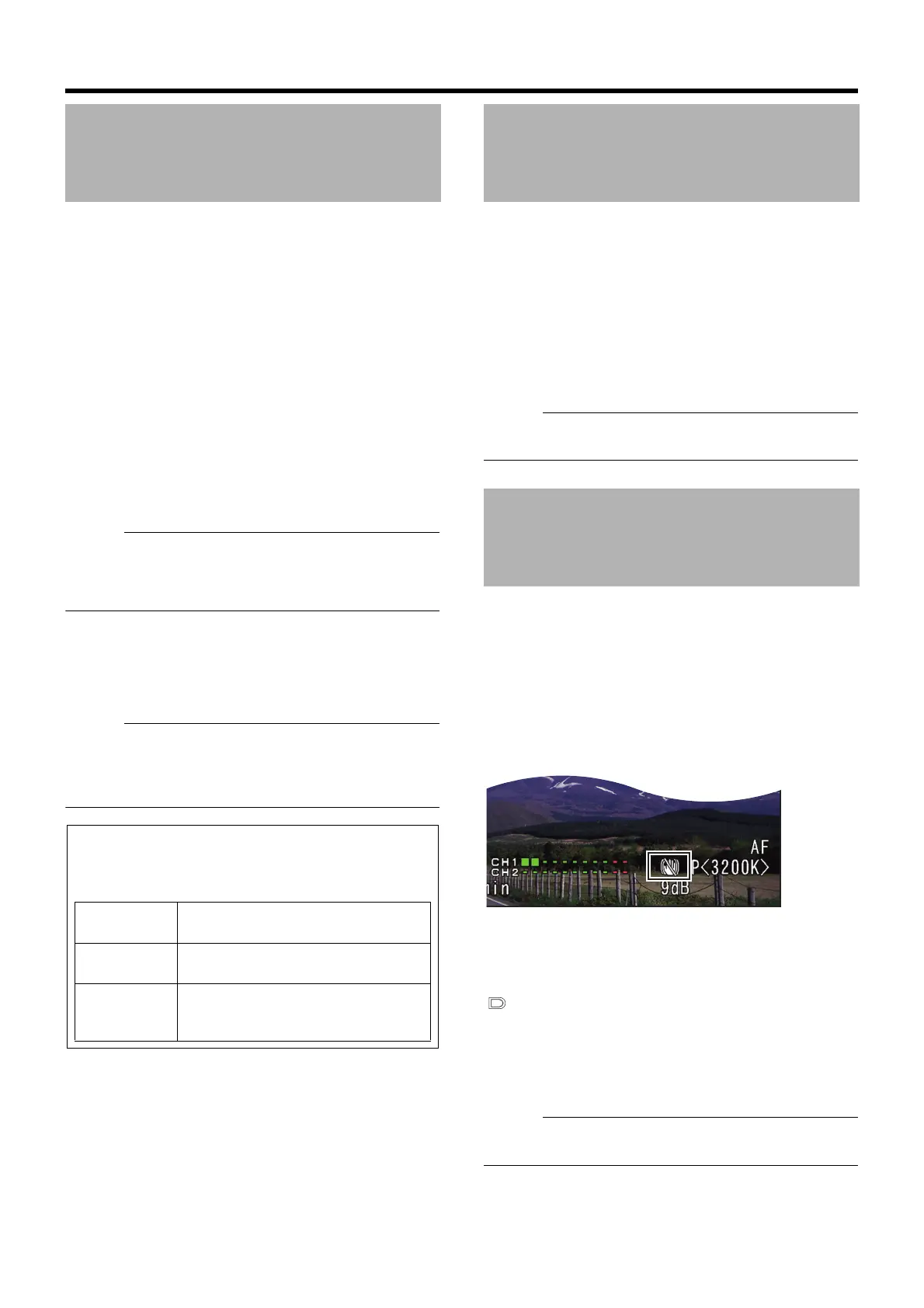

Applicable to: Full Auto shooting mode A, Manual shooting
mode M
Reduces blurring of images due to camera shake.
1 Check whether the image stabilizer feature is turned ON
or OFF.
● Image stabilizer OFF icon on status display: Image
stabilizer feature OFF
● No image stabilizer OFF icon on status display: Image
stabilizer feature ON
2 Press the [OIS] button to turn ON the image stabilizer
feature.
(when image stabilizer feature is OFF)
●
The image stabilizer feature switches between ON and OFF
with every press of the [OIS] button.
• OFF : Use this setting when the camera recorder is
secured, such as when using a tripod.
•
ON : Reduces blurring of images due to camera shake.
Memo :
● Correction by this feature may not be sufficient when
camera shake is too strong.
Displaying the Color Bars
Recording the color bar
When the [Camera Resolution], [Frame & Bit Rate] menu is
as below, the color bar can be recorded.
[Camera
Resolution]
[Frame & Bit Rate]
1920x108060i(HQ), 30p(HQ), 50i(HQ), 25p(HQ),
24p(HQ)
1280x720 60p(HQ), 60p(SP), 30p(HQ), 30p(SP),
50p(HQ), 50p(SP), 25p(HQ), 25p(SP),
24p(HQ), 24p(SP)
Adjusting the Camera Image
Using the Image Stabilizer
OIS
GY-HM150U.book Page 37 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
