JVC GY-HM150U User Manual

24
Preparations

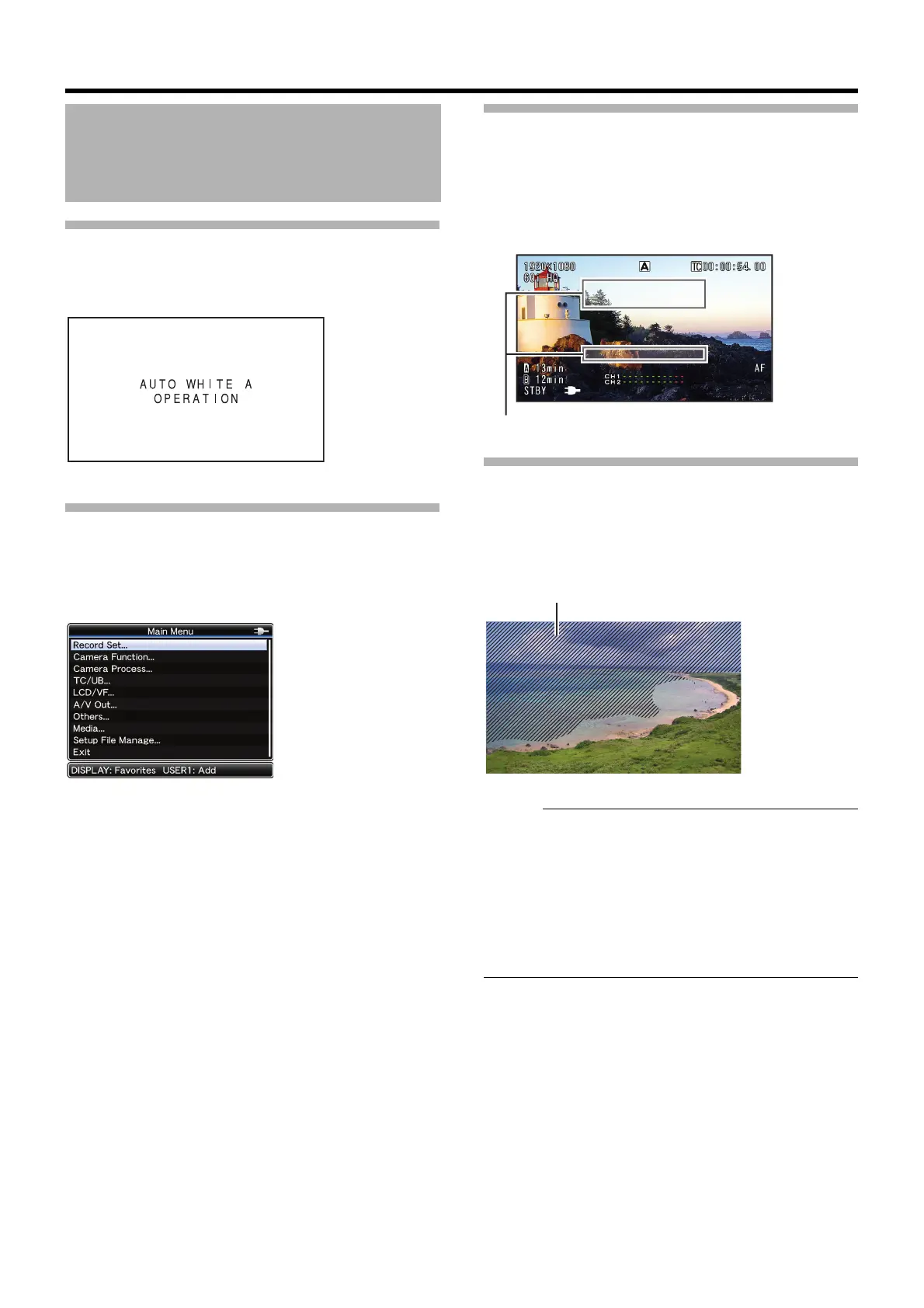

Auto White Display (Camera Mode Only)
Displays the operation and result when Auto White Balance is
activated.
( A Page 33 [Adjusting the White Balance])
Menu Setting Screen
For configuring various settings.
Press the [MENU/THUMB] button to display the menu setting
screen.
( A Page 58 [Basic Operations in Menu Screen])
Alarm Display
● Alarm is displayed during the status screen display in
Camera mode (STATUS 0, 1, 4) and Media mode.
● If the alarm occurs during STATUS 2 or 3 screen display in
Camera mode, the display will return to STATUS 0 screen
and alarm will be displayed. (
A Page 94 [Error Displays
and Actions])
Zebra Pattern Display
Zebra pattern that indicates the luminance level of the video
image can be displayed on this camera recorder.
You can set the luminance level for displaying the zebra
pattern.
( A Page 32 [Displaying the Zebra Pattern])
Memo :
● Use the following ways to turn ON/OFF the zebra pattern
display.
•
Press the [ZEBRA/5] button.
• Press the user button that is assigned with AZebraB.
( A Page 32,
66 )
• Select [LCD/VF] menu B[Shooting Assist]B[Zebra].
(A Page 70)
●
Set the luminance level in [LCD/VF] menu B [Shooting
Assist] B [Zebra]. ( A Page 70)
LCD Monitor/Viewfinder
(continued)
[Main Menu] Screen
Alarm Display Area
Zebra Pattern
GY-HM150U.book Page 24 Monday, September 5, 2011 1:48 AM
