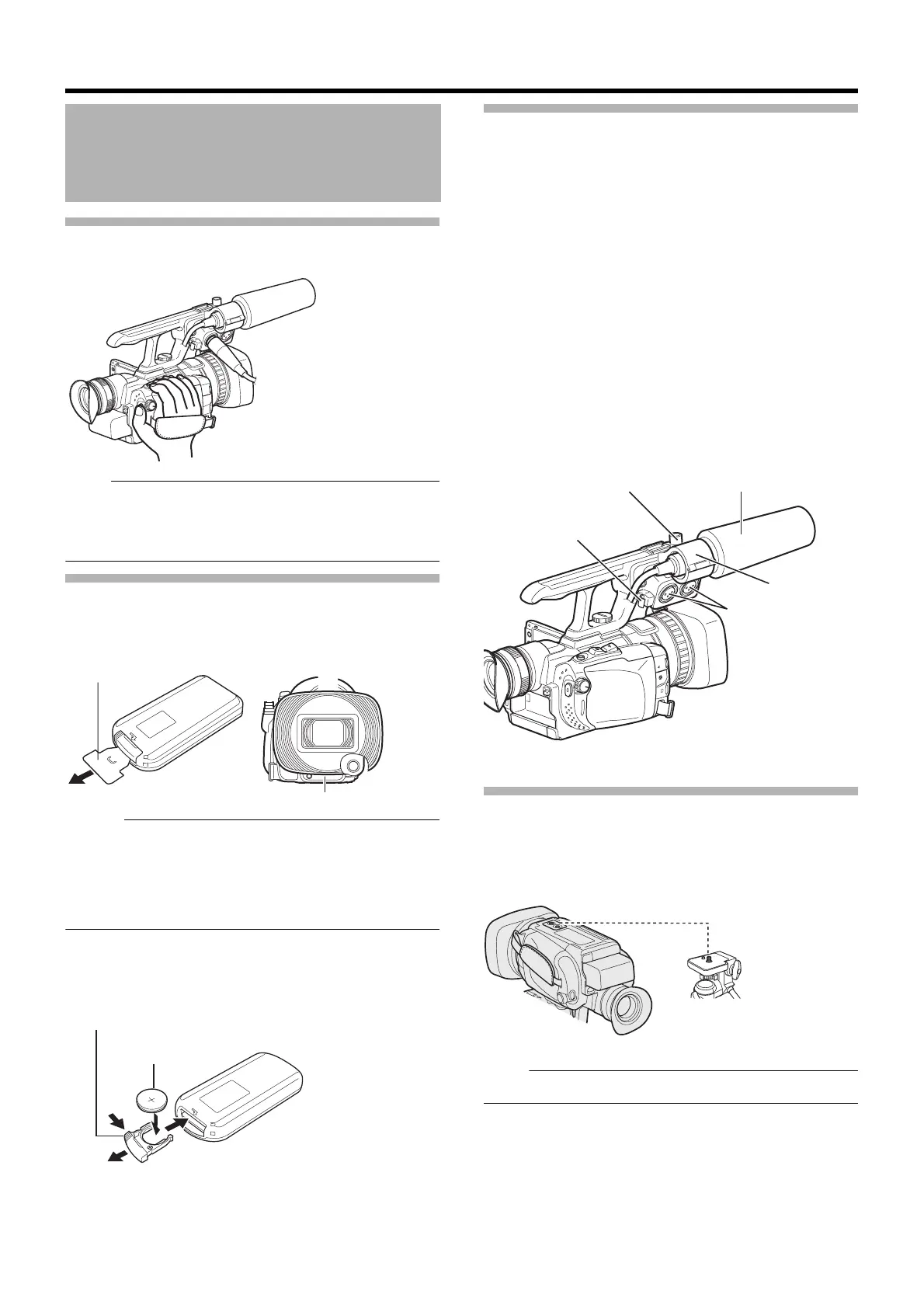

Preparations
Adjusting the Grip Belt
Open the pad and adjust the position of the grip belt accordingly.
Note :
● If the grip is loose, the camera recorder may fall off resulting
in injuries or malfunction.
● Parents should take extra care when your child is using
the camera recorder.
Setting up the Remote Control
The remote control comes supplied with batteries when you
purchase this product.
To start using, pull out the insulation sheet.
Memo :
● To use the remote control, set [Wireless Remote] in the
[Others] menu to AOnB. (A Page 74)
●
Point the front end of the remote control toward the sensor. Use
the remote control within a distance of 5 meters from the camera
recorder. The camera recorder may not respond to the remote
control operations at some angles.
 Replacing batteries
1 Press the lock tab, and pull out the battery holder.
2 Replace the button battery (CR2025).
Attaching an External Microphone
You can attach a microphone to the microphone holder.
The supplied microphone is a phantom microphone.
1 Turn the knob on the microphone holder anticlockwise
to loosen and open the microphone holder.
2 Place the microphone in the microphone holder.
3 Turn the knob on the microphone holder clockwise to
secure the microphone.
4 Connect the microphone to the [INPUT1] or [INPUT2]
(XLR) terminal according to the type of microphone
cable terminal you are using.
5 Attach the microphone cable to the clamp.
6 Specify the audio input settings correctly.
(A Page 38)
Attaching the Tripod
To prevent the camera recorder from falling off, which may
result in injuries or damages, read the instruction manual of
the tripod to be used and make sure that it is securely
attached. (A Page 12)
Note :
● Use the tripod on a stable surface.
Settings and Adjustments
Before Use
AWB
Remote Control Sensor
Insulation Sheet
Lock Tab
Button Battery
AUDI O
IN
OPEN
2. Microphone
Microphone Holder
5. Clamp
4.[INPUT1/INPUT2]
Terminals
1.3. Knob
