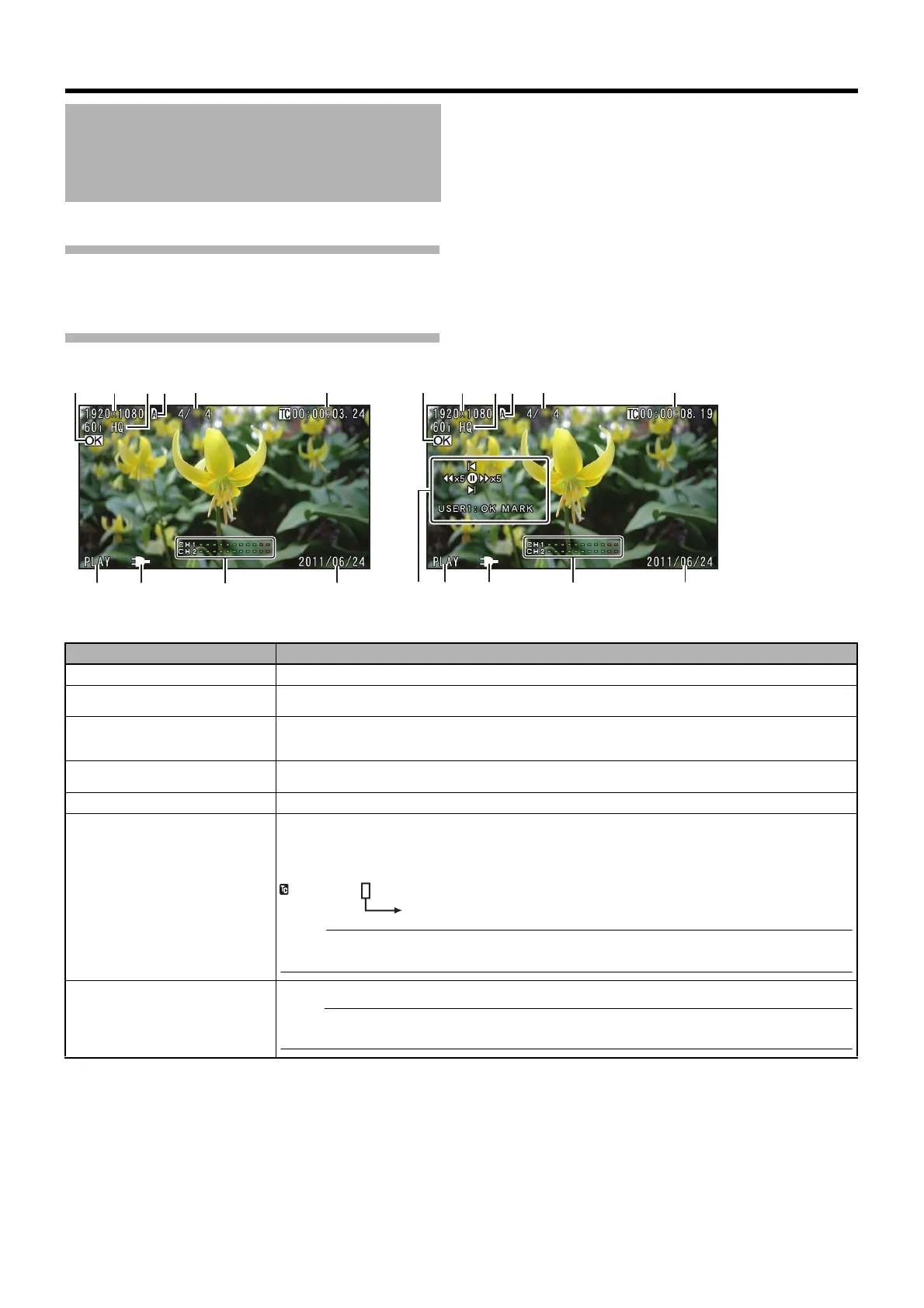

These are the status screens displayed in the Media mode.
STATUS 0 Screen
This screen displays the media status or event. It is also used to display warnings only.
STATUS 1 and STATUS 2 Screens
Status Screen in Media
Mode
OK OK
BAC
G
F
J
D
E
IH
K GJ IH
BAC FD E
STATUS 1 Screen STATUS 2 Screen
Item Description
A OK Mark
Appears when an OK mark is added. (A Page 56)
B Resolution
Displays the video image resolution.
(19201080, 14401080, 1280720, 720480, 720576)
C Frame Rate/Bit Rate
Displays the frame rate and bit rate in pairs.
(60p HQ, 30p HQ, 60i HQ, 60p SP, 30p SP, 60i SP, 50p HQ, 25p HQ, 50i HQ, 50p SP, 25p SP, 50i SP, 24p HQ,
24p SP, 50i, 60i)
D Media
Displays the media slot (A or B) of the currently played clip.
A key mark appears when the write-protect switch of the SDHC/SDXC card is set.
E Clip Information
Displays current clip number/total number of clips.
F Time Code (TC)/User’s Bit
(UB)
Displays the time code (hour : minute : second : frame) or user’s bit data.
TC : Time Code
UB : User’s bit
The framing mode display for the time code is as follows.
Memo :
● You can turn ON/OFF the display using [TC/UB] of [Status Display] in the [LCD/VF] menu.
(A Page 72)
G Date/Time
Displays the date/time that is recorded on the currently played SDHC/SDXC card.
Note :
● The date/time display style can be specified in [LCD/VF] menu B[Status Display]B[Date Style]/[Time
Style]. (A Page 72)
00:00:00:00
Colon (:) for non-drop frames
Dot (.) for drop frames
00:00:00:00
