JVC GY-HM150U User Manual

39
Applicable to: Camera mode, Media mode
1 Connect the headphone.
Connect the headphone to the headphone ( ) jack.
2 Set the headphone sound to mixed sound or stereo
sound.
Set using [Audio Monitor] in the [A/V Out] menu.
(AMixB/AStereoB) (A Page 73)
3 Adjust the headphone’s audio level. (Linked to built-in
speaker)
Operate with the [ADJ./VOL.] knob.
Memo :
● The built-in speaker is usable only in the Media mode. Audio
is not output from the built-in speaker during Camera mode.
● Audio level in the Camera mode and Media mode can be
adjusted separately.
● When in the Media mode, the volume of the headphone and
speaker are adjusted at the same time.
● The built-in speaker cannot be used when the [HDMI]
terminal, [A/V Out] terminal, or headphone jack is
connected.
Applicable to: Camera mode
Displaying the Time Code/User’s Bit
Menu setting
1 Set [LCD/VF] menu B [Status Display] B [TC/UB] to A TC B
or
A UB B . ( A Page 72)
● A TC B : Displays the time code.
● A UB B : Displays the user’s bit.
Recording the Time Code
The time code of the camera recorder’s built-in time code
generator as well as user’s bit can be recorded. The time
code generator comes in the preset and regeneration
modes. When in the preset mode, you can set the time code
and user’s bit freely. (A Page 40)
 Recording time code and user’s bit in the preset
mode
1 Set [TC Generator] in the [TC/UB] menu to A Rec Run B or
A Free Run B . ( A Page 69)
● A Rec Run B :The time code operates in the run mode only
during recording.
● A Free Run B :The time code operates in the run mode at all
times.
 Recording time code in continuation of the
recorded time code on the SDHC/SDXC card
1 Set [TC Generator] in the [TC/UB] menu to A Regen B .
(
A Page 69)
Memo :
● When recording is stopped and the SDHC/SDXC card is
removed, the time code will be displayed as follows.
A Rec Run B : Time code generated when the recording
was last stopped.
A Regen B : Sets to 00:00:00:00.
A Free Run B : Operates in the run mode at all times.

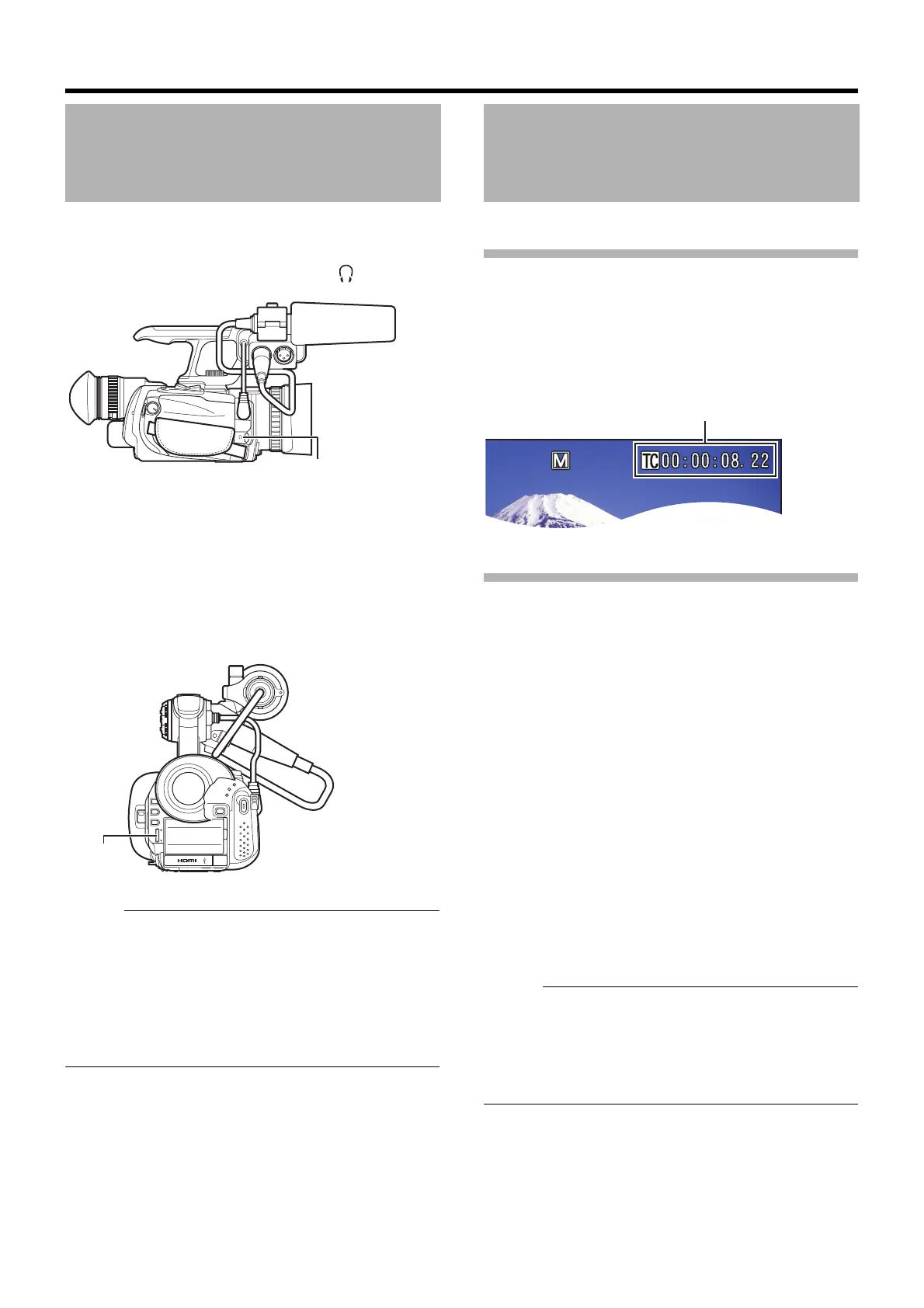

Monitoring Audio Sound
Using a Headphone
R
E
M
O
T
E
Headphone Jack
DC
OPEN
REC
PUSH
OIS
SHUTTER
AE
±
ADJ./ VOL.
CLOSE
ACCESS
CAM
MEDIA
[ADJ./VOL.]
Knob
Time Code Recording
Setting
Time Code
GY-HM150U.book Page 39 Monday, September 5, 2011 1:48 AM

JVC GY-HM150U Specifications

General

Sensor type	CCD
Number of CCDs	3
Total megapixels	- MP
Optical sensor size	1/4 \
Digital zoom	- x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.7 - 37 mm
Interchangeable lens	-
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Minimum aperture number	1.8
Maximum focal length (35mm film equiv)	390 mm
Minimum focal length (35mm film equiv)	39 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SDHC, SDXC
Internal storage capacity	- GB
Camera shutter speed	0.0001 - 0.27 s
Display diagonal	2.7 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder type	Electronic
Viewfinder resolution	260000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Handheld camcorder
Product color	Black
Video resolutions	720 x 480, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 480i, 480p, 720p
Video formats supported	AVI, MOV, MP4, MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	35 Mbit/s
Audio formats supported	LPCM
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Component video (YPbPr/YCbCr) out	1
Battery voltage	7.2 V
Charging source	AC
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	30 - 80 %
Cables included	AV, Component
Power consumption	7.8 W

Weight and Dimensions

Depth	366 mm
Width	138 mm
Height	179 mm
Weight	1400 g
