Keithley 2182 User Manual

5-26 Ratio and Delta
Trigger link connections — External triggering is used to synchronize source-measure
operations among the instruments. The SourceMeter must trigger both Model 2182s to achieve
simultaneous measurements. In turn, only one of the Model 2182s must trigger the SourceMeter
to output the next source value.

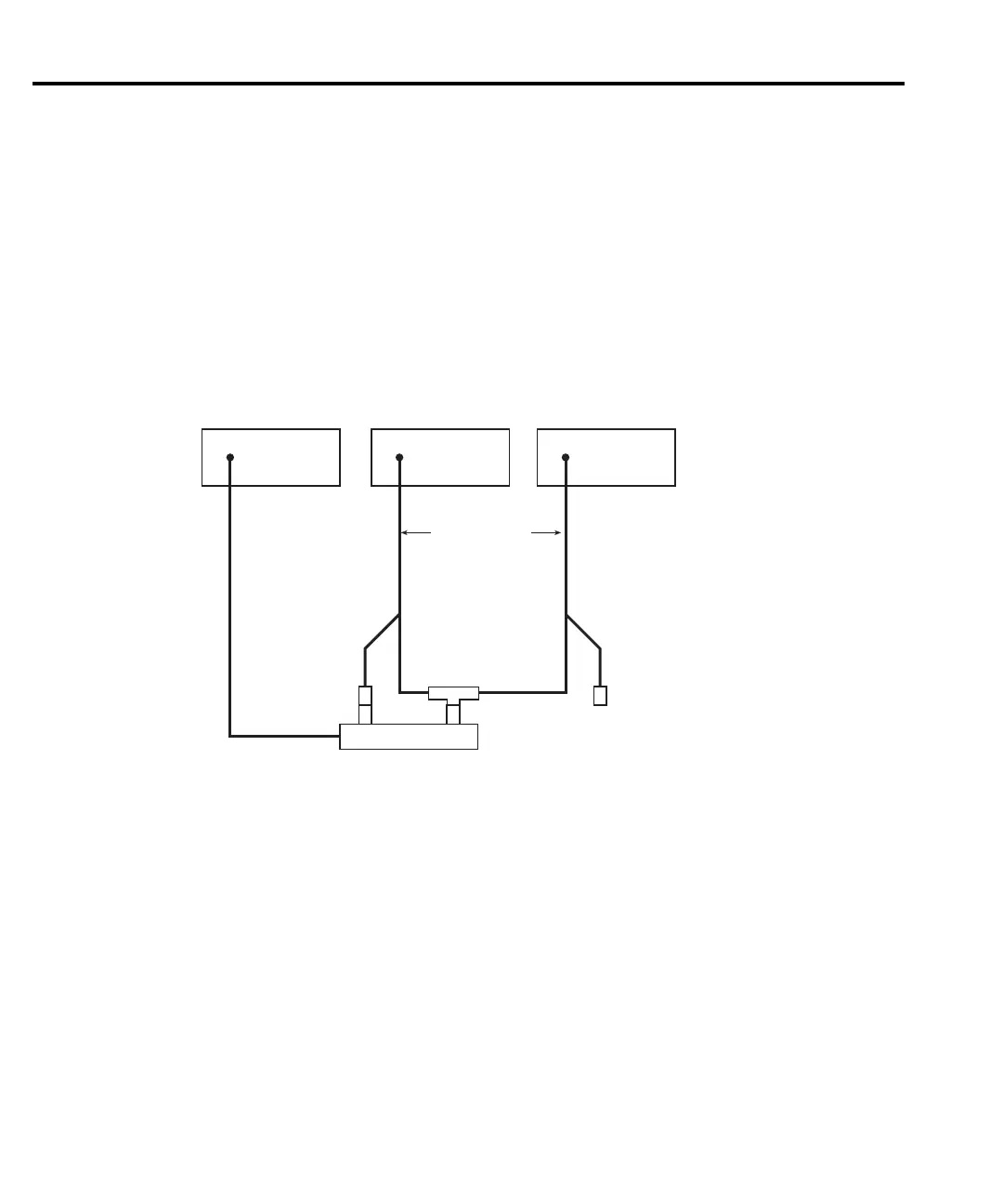

The trigger link connections required for this application are shown in Figure 5-12. Notice
that the output trigger (VMC) required from the Model 2182s is provided by unit #1. VMC from
unit #2 must not be used.
Figure 5-12
Trigger link connections using two Model 2182s
2182 #2
Rear Panel
Trig Link
BNC Tee
Adapter
8502 Trigger Link Adapter
1
2182 #1
Rear Panel
Trig Link
8503
DIN to BNC
Trigger Cables
EXT
TRIG
EXT
TRIG
VMC
VMC (not used)
2
SourceMeter
Rear Panel
Trig Link
8501
Trigger Link
Cable
