Keithley 2635 Reference Manual

2600S-901-01 Rev. C / January 2008 Return to Section Topics 9-7
Series 2600 System SourceMeter® Instruments Reference Manual Section 9: System Expansion (TSP-Link)

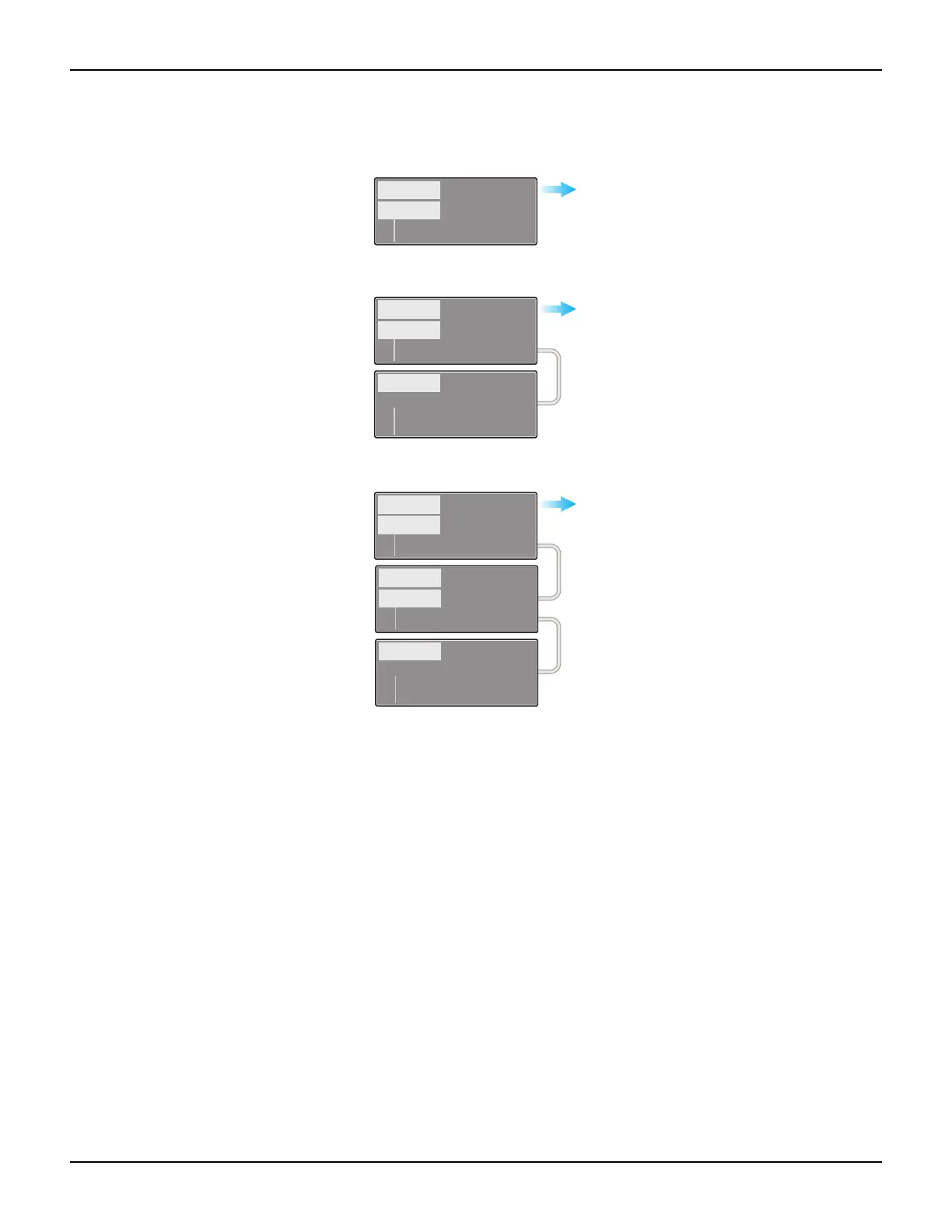

Figure 9-2
Multiple TSP-Link networks
GPIB
TSP-Link In
TSP-Link Out
SMU A
2602
SMU B
GPIB
TSP-Link In
TSP-Link Out
SMU C
2601
Master
Slave
3 Channel System
To PC
GPIB
TSP-Link In
TSP-Link Out
SMU A
2602
SMU B
2 Channel System
To PC
GPIB
TSP-Link In
TSP-Link Out
SMU A
2602
SMU B
GPIB
TSP-Link In
TSP-Link Out
SMU E
2601
Master
Slave
16+ Channel System
To PC
GPIB
TSP-Link In
TSP-Link Out
SMU C
2602
SMU D
Slave
•
•
•
The second method to run parallel test scripts is to use groups with a single TSP-Link network. A
group consists of one or more nodes with the same group number. Each group on the TSP-Link
network can run different test scripts at the same time (in parallel).
Figure 9-3 displays a single TSP-Link network with groups. This method requires one TSP-Link
network and a single GPIB connection to the PC.
