Creating and modifying a script

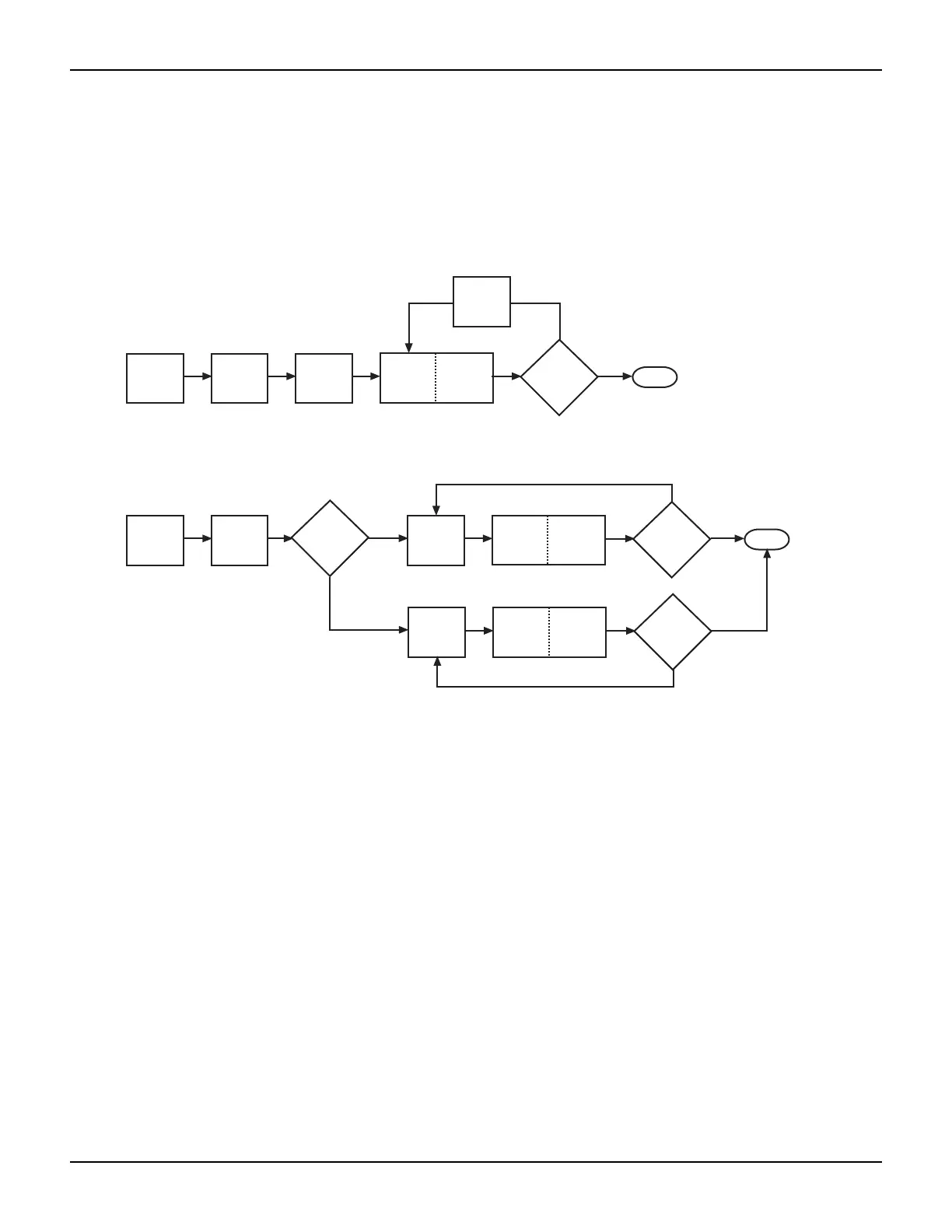

The flowcharts in Figure 2-7 show the basic processes to create and modify a script using the Test
Script Builder. The labels (A through G) are used to identify reference links provided after the
illustration.
Figure 2-7
Open a
Resource
Options: Rename Project Folder
Rename Script Files
Yes
No
Select
Communications
Interface
Modify
Another
File
?
End
Open
Script
File
Modify
Modify
Script
Save
Script
No
Create
Another
File
?
Write
Script
Save
Script
Create
New
Script
File
Create
Yes
Open a
Resource
Create
Project
Folder
Write
Script
Save
Script
Yes
No
Select
Communication
Interface
One script file
is also created
Create
Another
File
?
Create
New
Script
File
End
Creating a script project
CAB D
F
AB D
F
DE
DE
E
G
Modifying a script project
Modify or
Create
Script
File
Options: Rename Project Folder
Rename Script Files
G
Start
Test Script
Builder
Start
Test Script
Builder
Creating and modifying a script using the Test Script Builder
Reference links for labels A through G shown in Figure 2-7:
A “Starting Test Script Builder”
B “Opening communications”
C“Creating a project folder”
D“Writing or modifying a script”
E“Saving a script”
F “Creating new script files”
G“Renaming a project folder and/or script file”
Creating a project folder
When a project folder is created, the following actions occur:
• The project folder is added to the Project Navigator.
• A script file (named “main”) is created and placed in the project folder.
• The script file (which has no code) is opened and displayed in the Script Development area
of the Test Script Builder.
The toolbar at the top of the Test Script Builder is used to create a project folder. Figure 2-8
explains how to create a project folder.
