Maintenance
768
Light bulbs
7. Install the headlight bulb cover by
turning it clockwise.
To replace the turn signal lamp,
position lamp, daytime running lamp
bulb:
1. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
2. Insert a new bulb by inserting it
into the socket and rotating it
until it locks into place.
3. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
4. Push the socket into the assem
bly and turn the socket clockwise.

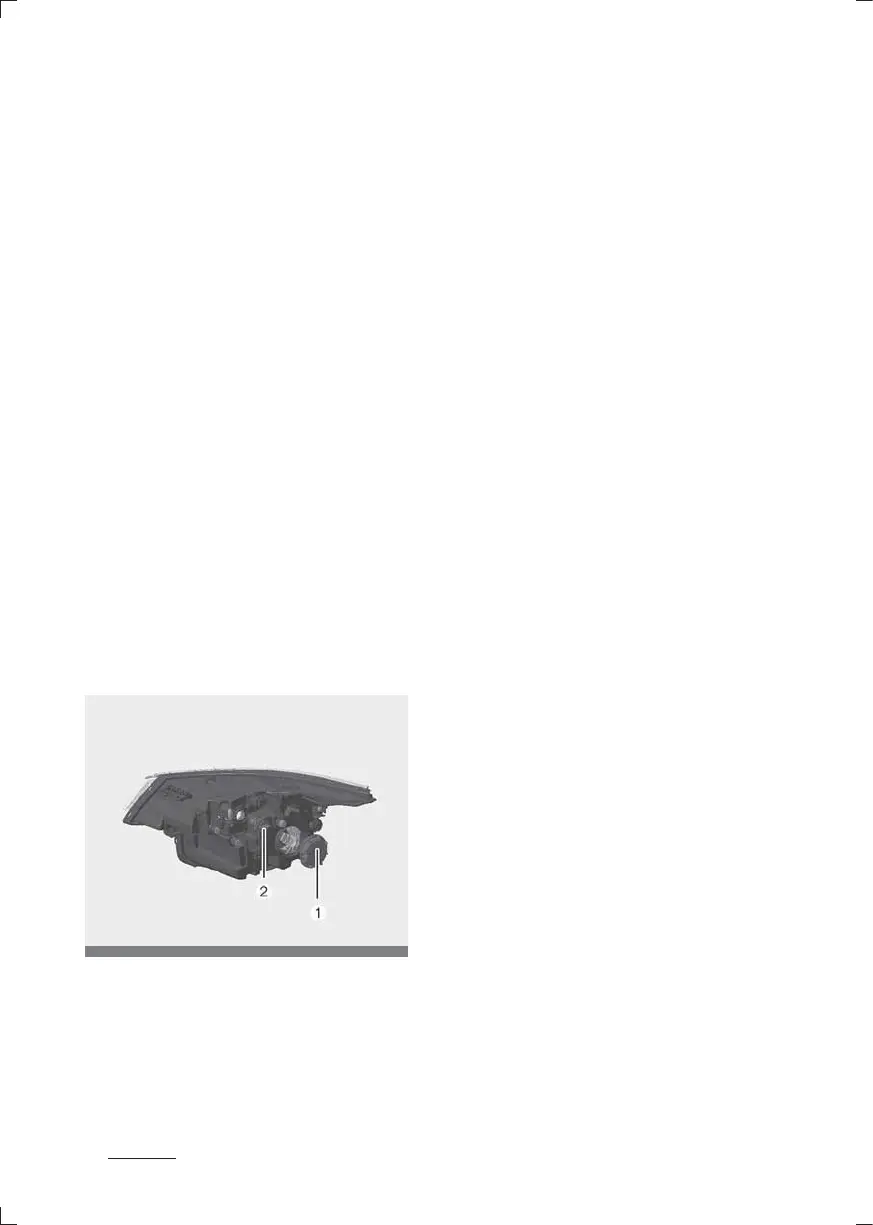

Replacing headlamp (low/high) /
turn signal lamp bulb (bulb type)
(headlamp type B)
1. Headlamp (low and high)
2. Turn signal lamp
To prepare replacing the lamp bulb:
1. Open the hood.
To replace the headlamp (low/high)
bulb:
1. Remove the headlight bulb cover
by turning it counterclockwise.
2. Disconnect the headlight bulb
socket-connector.
3. Unsnap the headlight bulb retain
ing wire by depressing the end
and pushing it upward.
4. Remove the bulb from the head
light assembly.
5. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
6. Connect the headlight bulb socket
connector.
7. Install the headlight bulb cover by
turning it clockwise.
To replace the turn signal lamp:
1. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
2. Insert a new bulb by inserting it
into the socket and rotating it
until it locks into place.
3. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
4. Push the socket into the assem
bly and turn the socket clockwise.
