DRAFT CONTROL
1. The draft control is used to do draft
work with an attachment, like a plow,
attached to the 3-point linkage.
2.In the oating range. The attach-
ment will completely lower.
3. In the draft control range, the hy-
draulic unit will have a force to lift
the attachment. In this stage, it is
possible to do stable work without
slipping.

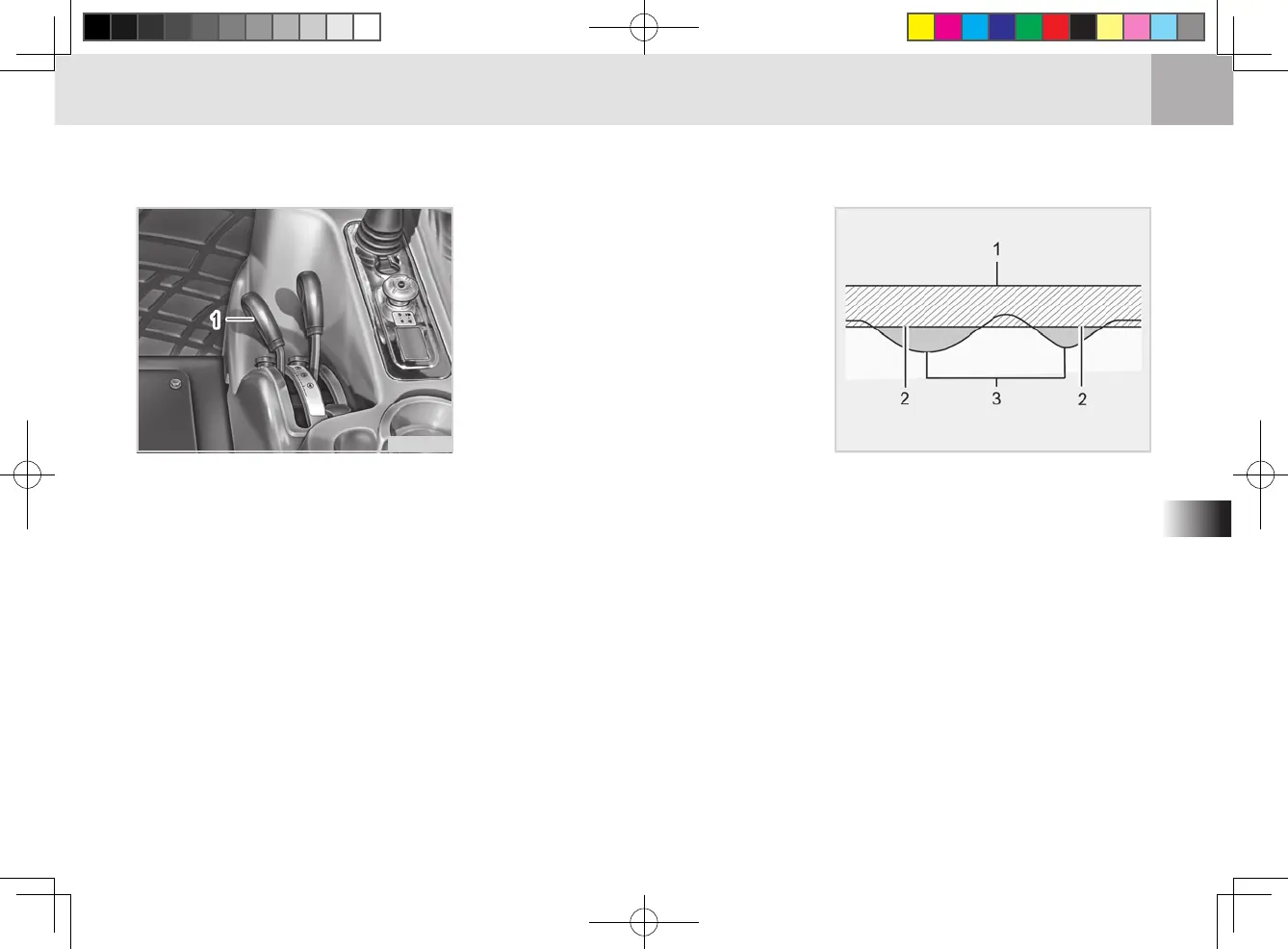

(1) Draft Control Lever
t85O520a
4. If the draft force is higher than the
resistance of the attachment, the
attachment will be lifted up. If it is
lower than the resistance of the
attachment, the attachment will be
restored to its original state.
5. By placing the lever closer to shal-
low, the attachment can be lifted up
by smaller draft resistance.
MIXED CONTROL
In draft control, when draft decreases,
the implement automatically lowers
to increase draft. However, the imple-
ment sometimes lowers too much. To
limit the degree, the implement can be
lowered, set the position control lever
at the lowest working depth desire for
the implement. Lower the draft control
lever to the point where the implement
is at the desired depth.
This stops the implement from going
too deep and causing loss of traction
and ground speed.
(1) Ground Surface (2) Soft Soil
(3) Implement Penetration Limit
t85O521a
