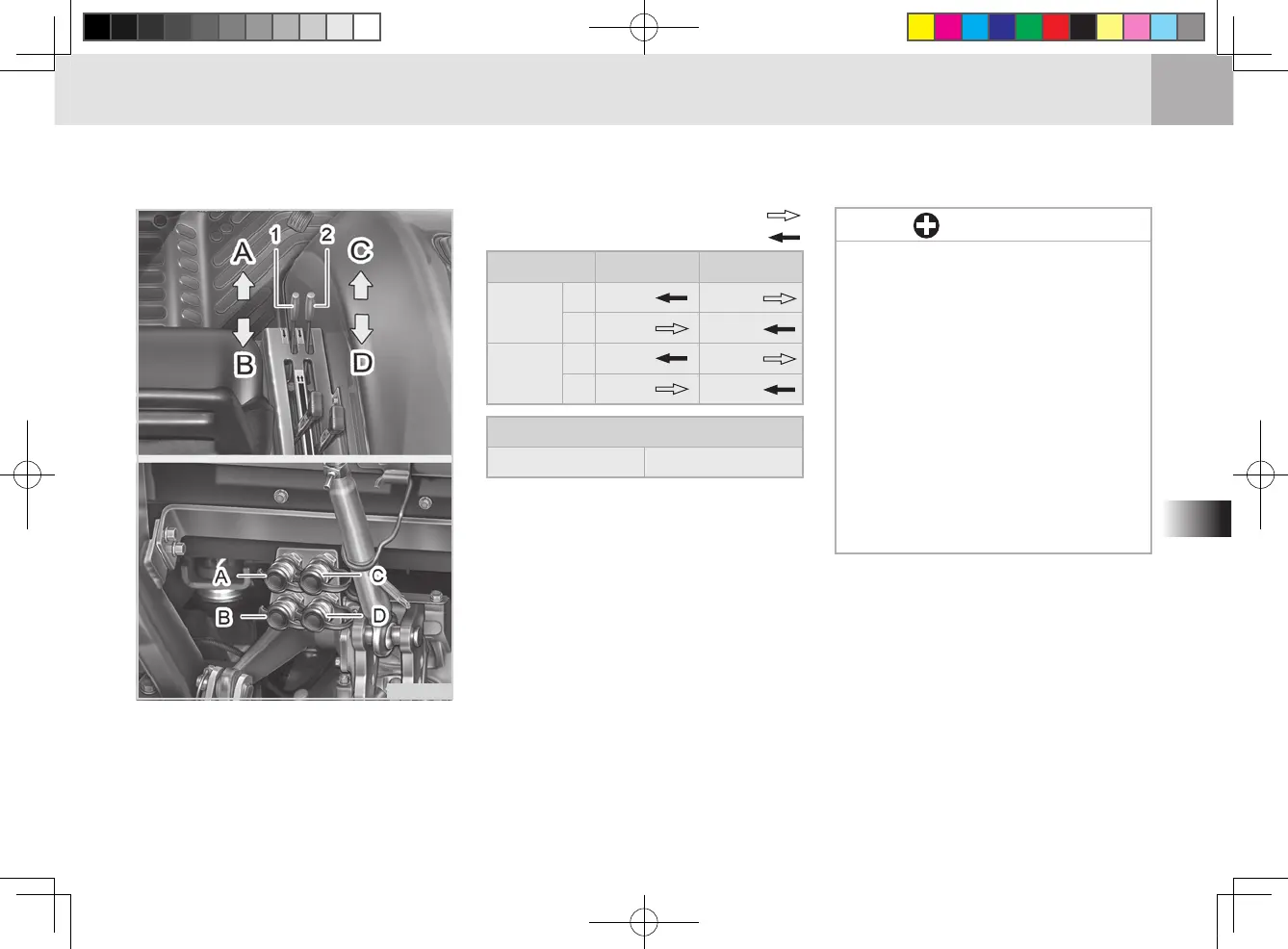

(1) Double acting valve lever
(2) Double acting valve lever
(A) "A" port (C) "C" port
(B) "B" port (D) "D" port
DOUBLE ACTING VALVE LEVER (IF EQUIPPED)
S76O704a
Move the lever up and down and hold.
The implement will be up or down. The
lever will return to neutral when the
hand is taken off the lever.
Draining the oil
Port Push Pull
Lever 1
A In Out
B Out In
Lever 2
A In Out
B Out In
Coupler Size
Port A, B, C, D
PT 3/8 inch
Applying the hydraulic
Do not hold the lever on the
"PUSH" or "PULL" position once
the external cylinder reaches the
end of its stroke. The oil will
flow through the relief valve.
The oil which ows through the
relief valve during the extended
period will overheat.
Do not operate the boom and
the bucket cylinder at the same
time when the hydraulic system
is used to increase the power of
the front loader on the tractor.
•
•
IMPORTANT
