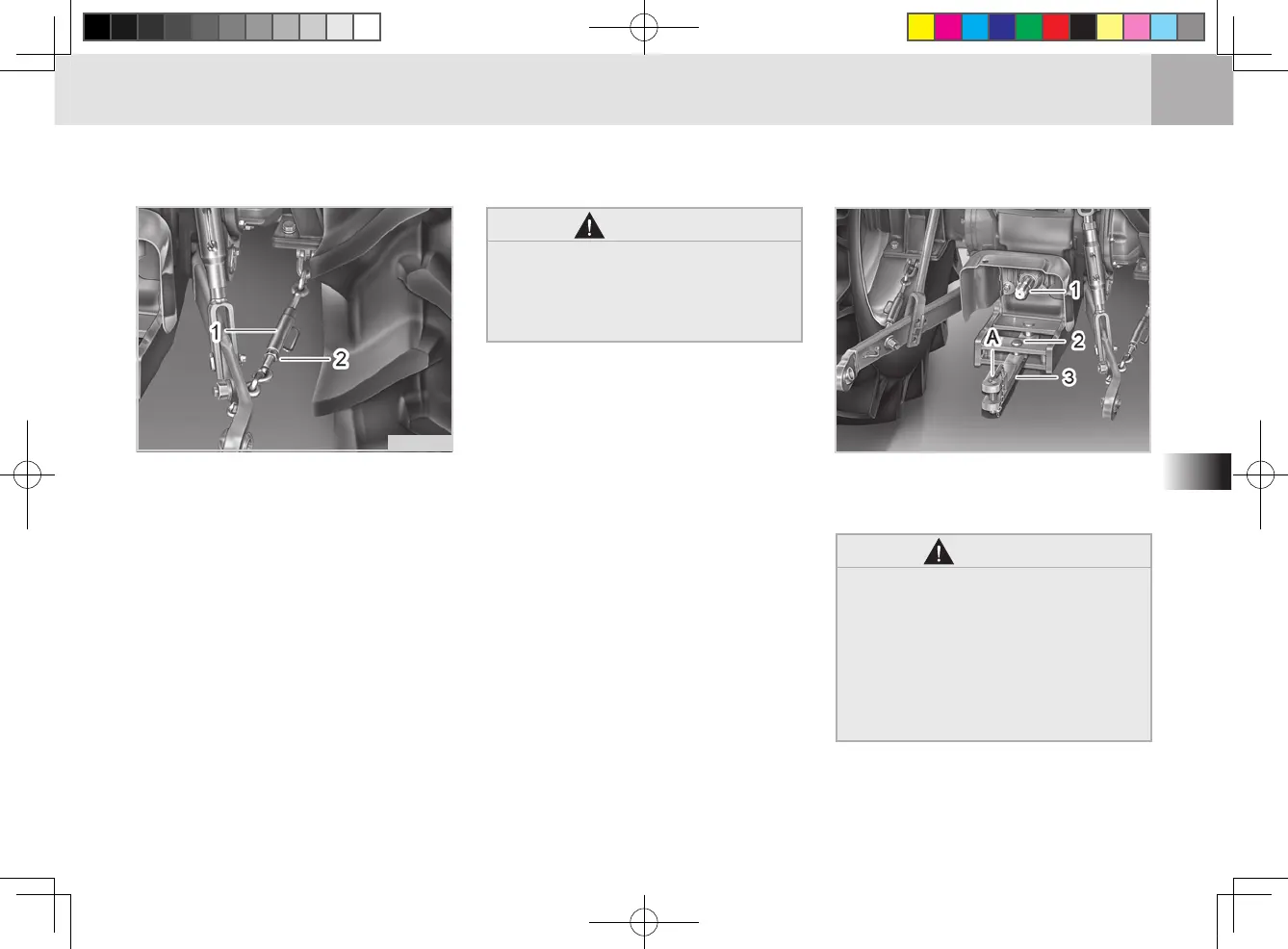

3-POINT HITCH / DRAWBAR
The check link is used to adjust the
distance to move horizontally when
operating the implement. It is also
used to position the implement behind
the tractor to the center.
(1) Check Link (2) Pin
Remove the pin and adjust the check
link to reach the distance you want to
move horizontally. Insert the pin in the
link to x.
(1) PTO Shaft (2) Drawbar Pin
(3) Drawbar (A) Hole
DRAWBAR
For drawbar loads, refer to "Implement
Limitations" Section.
S76O603A
S76O604A
To avoid personal injury:
Never pull the drawbar from
the top link or rear axle or from
the upper position. This may
cause the tractor to over turn,
resulting in personal injury or
death.
•
WARNING
Be careful when you are adjust-
ing the check link. Many danger-
ous factors may be involved in
handling the heavy implement
•
WARNING
CHECK LINK
LX500_en_om_06.indd 5 2012-11-27 오후 3:08:31
