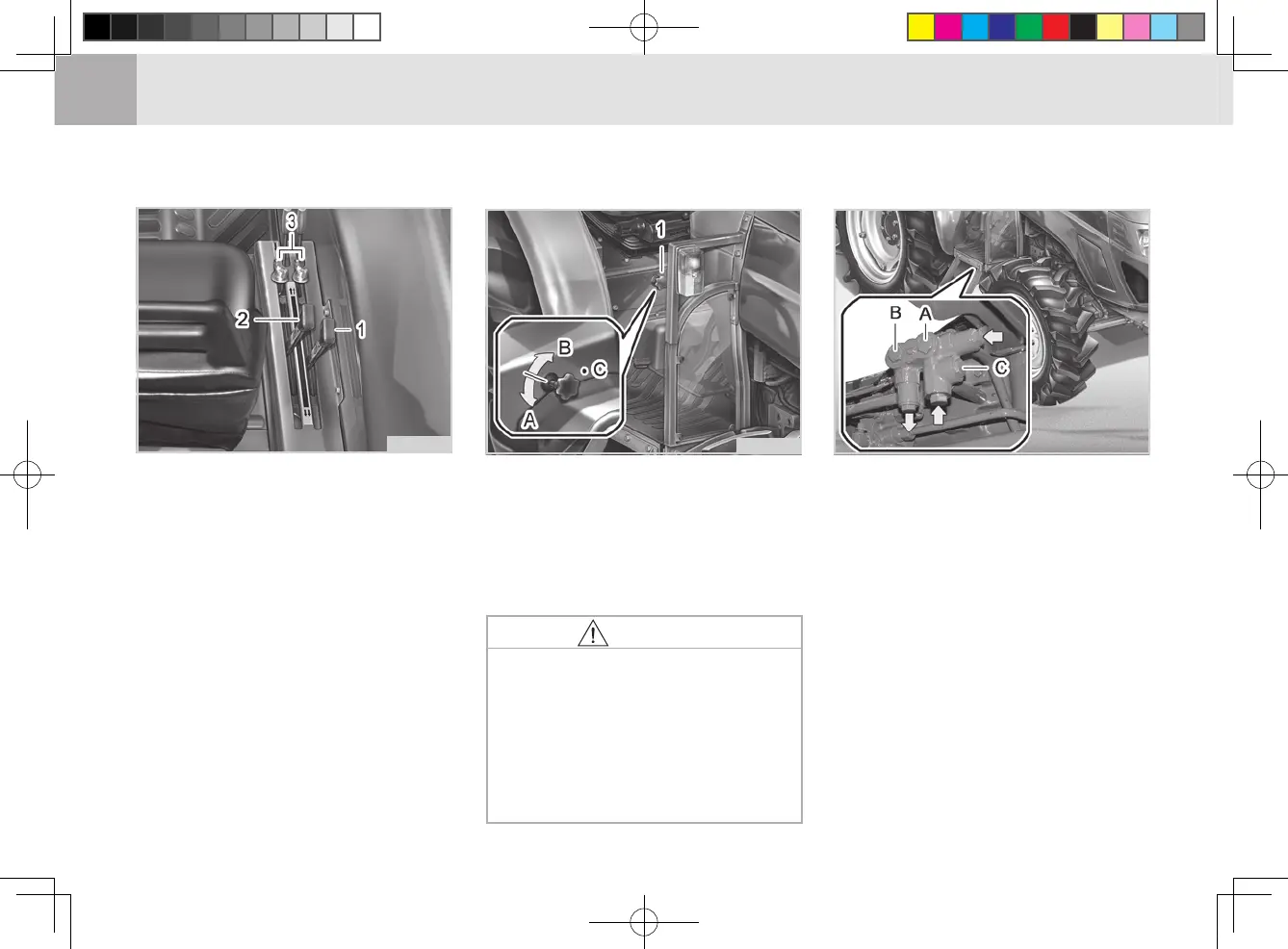

IMPLEMENT LOWERING RE-
STRICTION
The implement lowering restriction can
be adjusted by moving the position of
the mounting bolt.
Lowering restriction increases if the
mounting bolt is moved to the rear side
and decreases if moved to the front.
(1) Position Control Lever
(2) Draft Control Lever
(3) Mounting Bolt
S76O702a
(1) 3-point hitch lowering speed control lever
(A) "High Speed" (B) "Low Speed"
(C) "LOCK"
3-POINT HITCH LOWERING
SPEED
S76O703a
(A) Draining to the implement
(B)
Entering from carry over port of the implement
(C) Entering from "T" port of the implement
t91O705a
The lowering speed of the 3-point hitch
can be adjusted using the 3-point hitch
lowering speed control lever.
AUXILIARY HYDRAULIC
HYDRAULIC BLOCK
To avoid personal injury:
If the lowering speed is too fast,
it may cause machine damage
or personal injury. The lower-
ing speed of the implement
can be adjusted to 2 seconds
or longer.
•
CAUTION
To Next Page
