14.
When

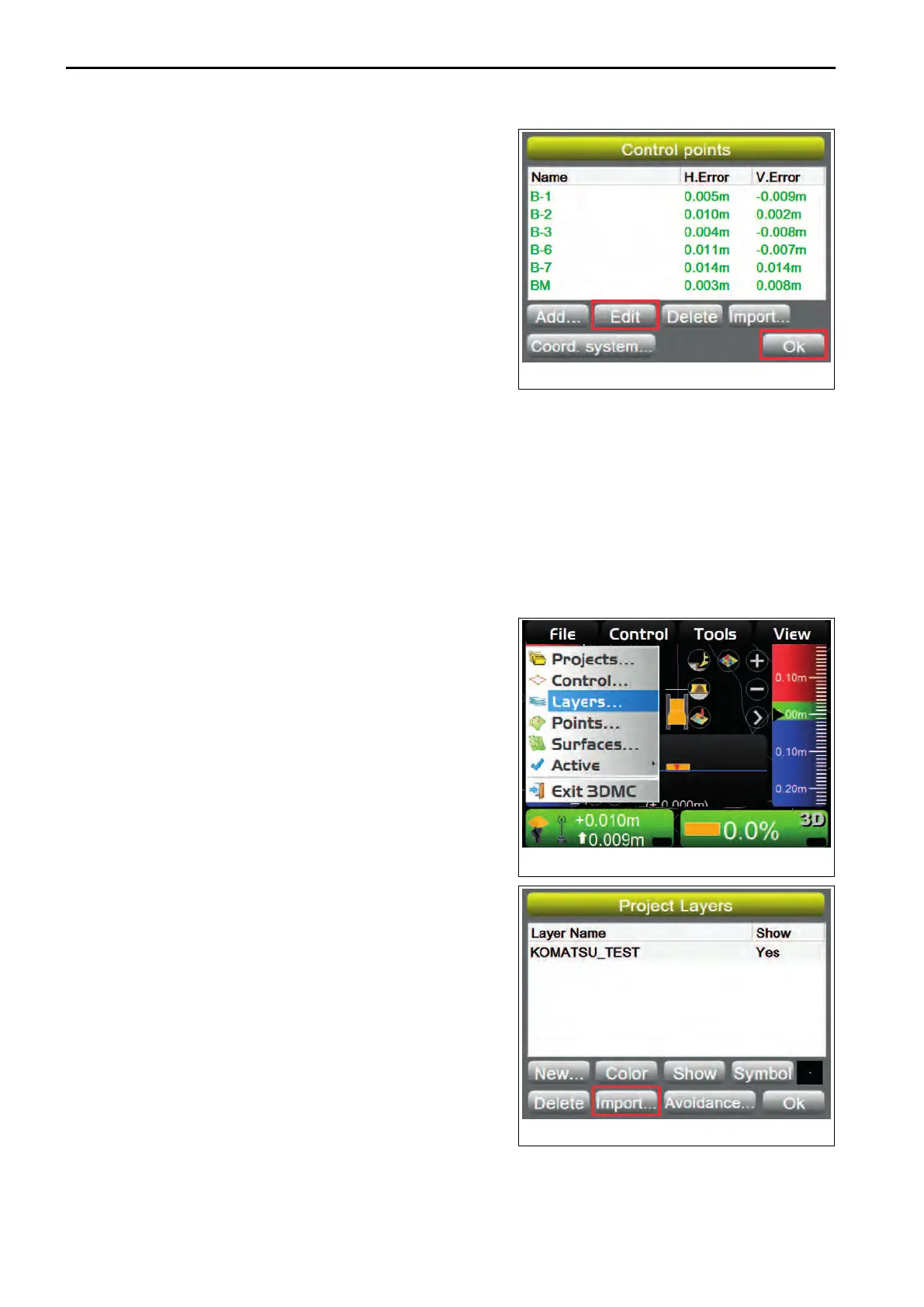

editing a control point, select that control point on
“Control points” screen, and press “Edit”.
15.
Input the new jobsite coordinates or GNSS coordinates,
and press “Ok”.
The screen returns to “Control point” screen.
16.
Press “Ok”.
The screen returns to the main window.
LAYERS
The layers are attributes of the point data or the line work data. The layers of 3DMC contain the point data or
the line work data.
Linework data (*.In3) is an aggregate of polylines (line segments), and is used to display buildings, curbs, side-
walks, boundaries, etc. with polylines (line segments) and use them as landmarks for operations.
You can convert the linework data into Surface when using.
METHOD FOR IMPORTING LAYERS
Usually, layers are contained in the project files. However, you can import them separately from the internal
memory of the control box as well.
1.
On the main window, press “iB logo key” and display the
main menu.
2.
On “File” menu, press “Layers...” and select.
3.
On “Project Layers” screen, press “Import...”.
FILE MENU HANDLE CONTROL BOX
4-16
To Next Page
