4.

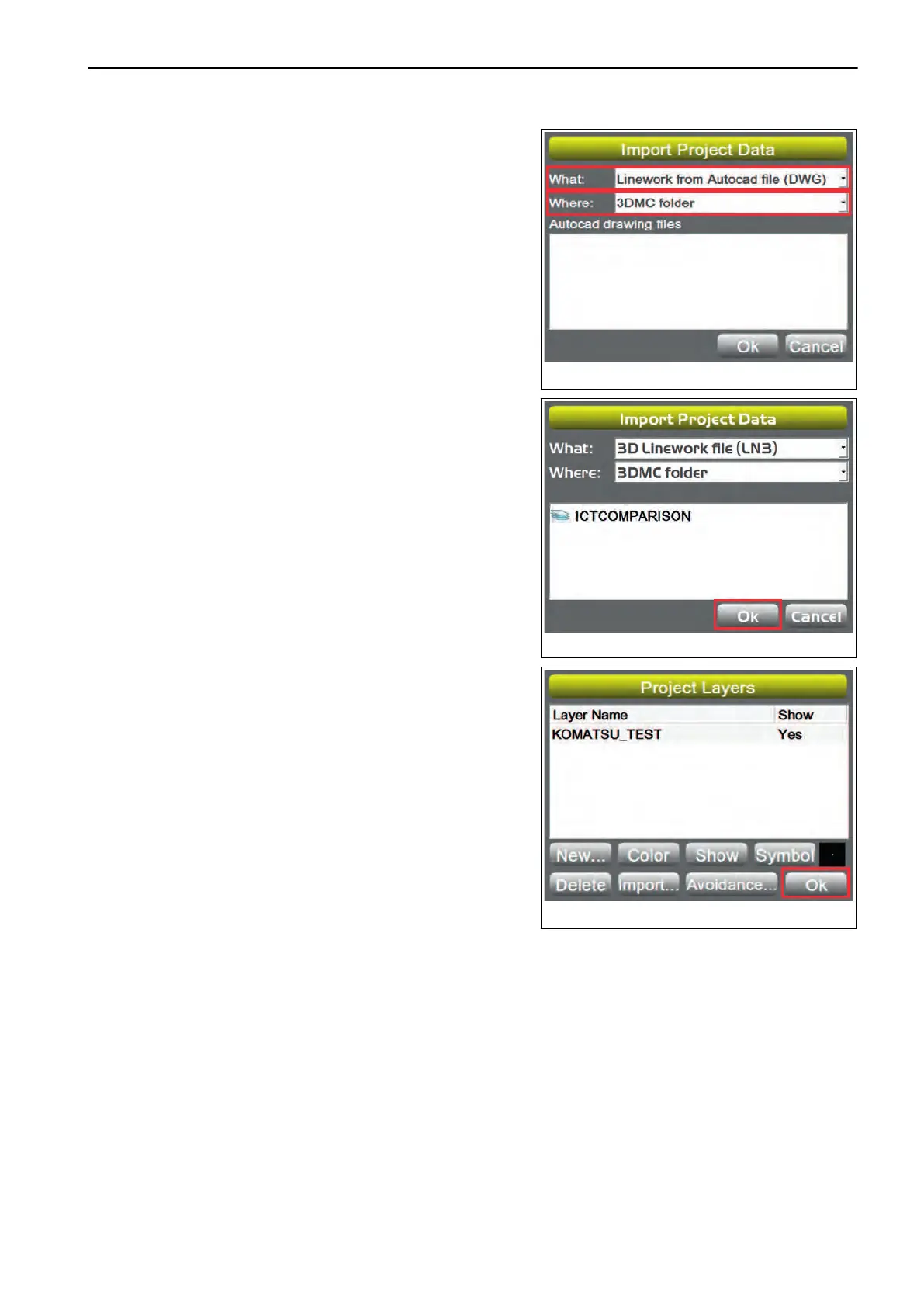

On
“Import Project Data” screen, select “What:” (Type of
file to be imported) and “Where:” (Place to save the file).
5.
Select the file to be imported, and press “Ok”.
6.
On “Project layers” screen, select the layer name of the
point or line work.
7.
Specify “Color”, “Show”, and “Symbol”.
• “Color”
Specify the color of the displayed line.
• “Show”
Specify “Yes” (Display) or “No” (Non-display).
• “Symbol”
Specify the shape of the displayed symbol.
8.
Press “Ok”.
The screen returns to the main window.
REMARK
You can input TIN data and linework directly from DWG type file made with AutoCAD.
POINT DATA
Point data file (*.pt3) is used to record the coordinates of the points measured in position check or travel record
(Topo survey).
METHOD FOR REGISTERING POINT DATA
When registering point data to 3DMC, perform the following procedure.
HANDLE CONTROL BOX FILE MENU
4-17
