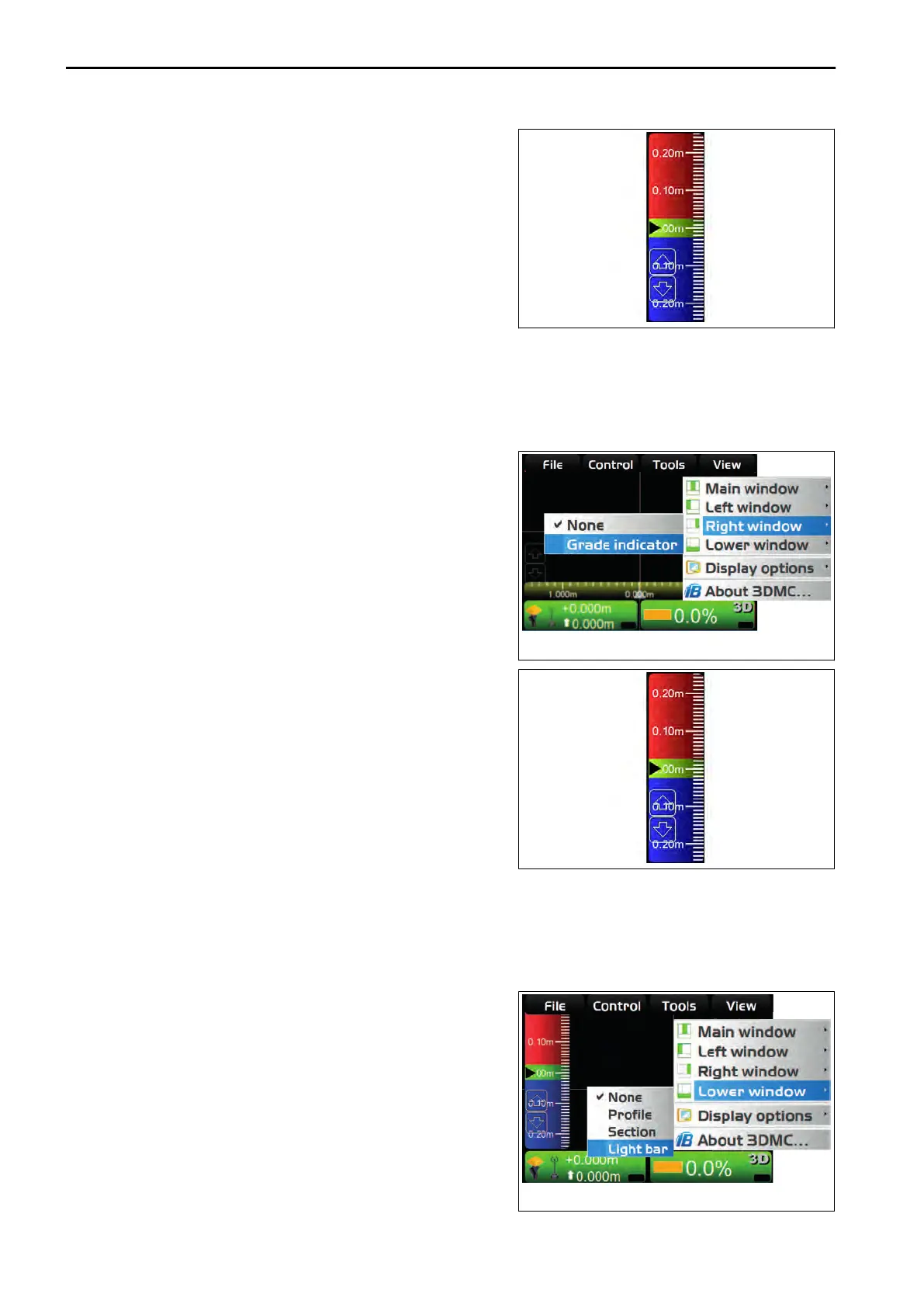

(Grade indicator)
The
cut/fill amount is displayed by the fill indication (blue), on-
grade (green), and cut indication (red).
When “Invert colors” is checked, the fill indication is red and the
cut indication is blue.
For the change of “Invert colors”, see “METHOD FOR CHANG-
ING HIGHLIGHT COLOR”.
For the change of indication of the grade indicator, see “METH-
OD FOR CHANGING GRADE INDICATOR DISPLAY”.
RIGHT WINDOW DISPLAY
You can display the “Grade indicator” on the “Right window”.
METHOD FOR DISPLAYING RIGHT WINDOW DISPLAY
When displaying the right window, perform the following procedure.
1.
On the main window, press “iB logo key” and display the
main menu.
2.
On “View” menu, press “Right window”.
3.
Press “Grade indicator” and select.
The grade indicator is displayed.
The
cut/fill amount is displayed by the fill indication (blue), on-
grade (green), and cut indication (red).
When “Invert colors” is checked, the fill indication is red and the
cut indication is blue.
For the change of “Invert colors”, see “METHOD FOR CHANG-
ING HIGHLIGHT COLOR”.
For the change of indication of the grade indicator, see “METH-
OD FOR CHANGING GRADE INDICATOR DISPLAY”.
LOWER WINDOW DISPLAY
On “Lower window”, you can display “Profile”, “Section”, or “Light bar”.
METHOD FOR DISPLAYING LOWER WINDOW DISPLAY
When displaying the lower window, perform the following procedure.
1.
On the main window, press “iB logo key” and display the
main menu.
2.
On “View” menu, press “Lower window”.
3.
Press and select necessary displays.
The
check mark of each display indicates that the display
is being displayed.
VIEW MENU HANDLE CONTROL BOX
4-74
