Komatsu D51PXi-24 User Manual

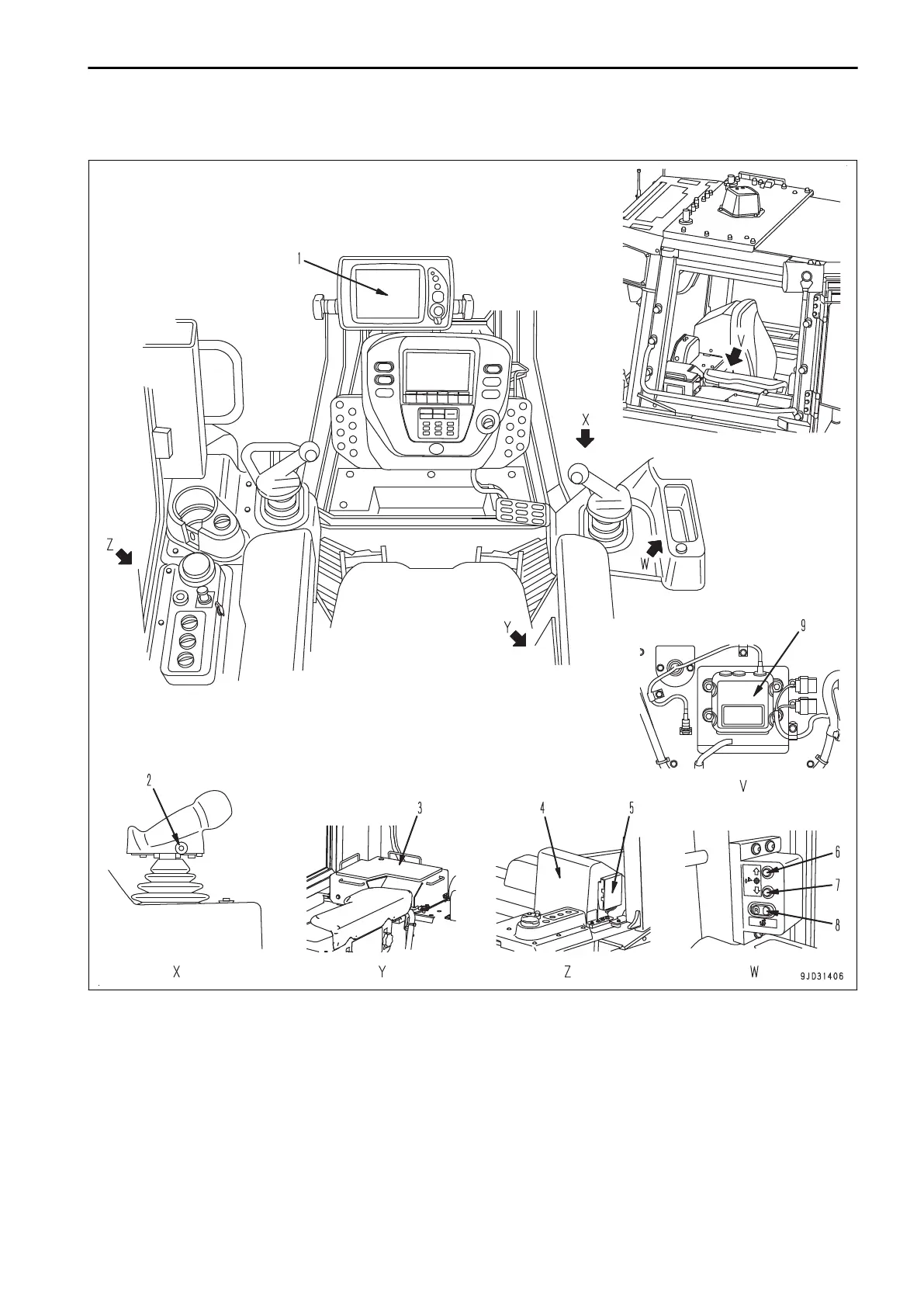

CONTROLS AND GAUGES NAMES
(1) Control box
(2) Auto/Manual switch
(3) ICT sensor controller (inside the cover)
(4) GNSS receiver (inside the cover)
(5) GNSS radio device
(6) Cut/Fill offsets switch (Up)
(7) Cut/Fill of
fsets switch (Down)
(8) Back grade mode switch
(9) Network modem (if equipped)
OPERATION GENERAL VIEW
3-3
