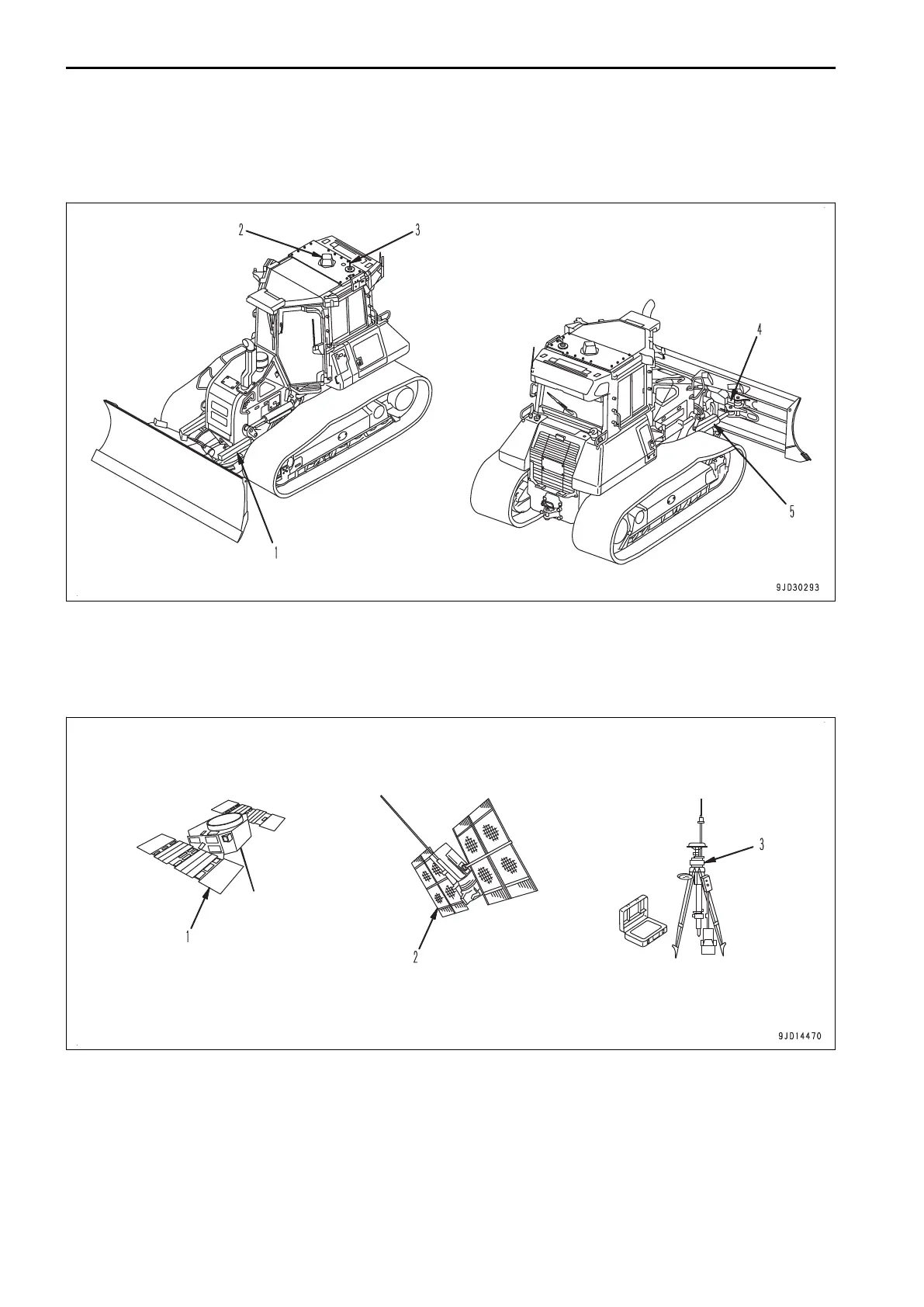

GENERAL VIEW
MACHINE EQUIPMENT NAME
(1) Blade angle cylinder (with stroke sensor)
(2) GNSS antenna
(3) Radio antenna
(4) Blade tilt cylinder (with stroke sensor)
(5) Blade lift cylinder (with stroke sensor)
MACHINE OUTSIDE EQUIPMENT NAME
(1) GNSS satellite (GPS)
(2) GNSS satellite (GLONASS)
(3) Base station
GENERAL VIEW OPERATION
3-2
