OPERATION

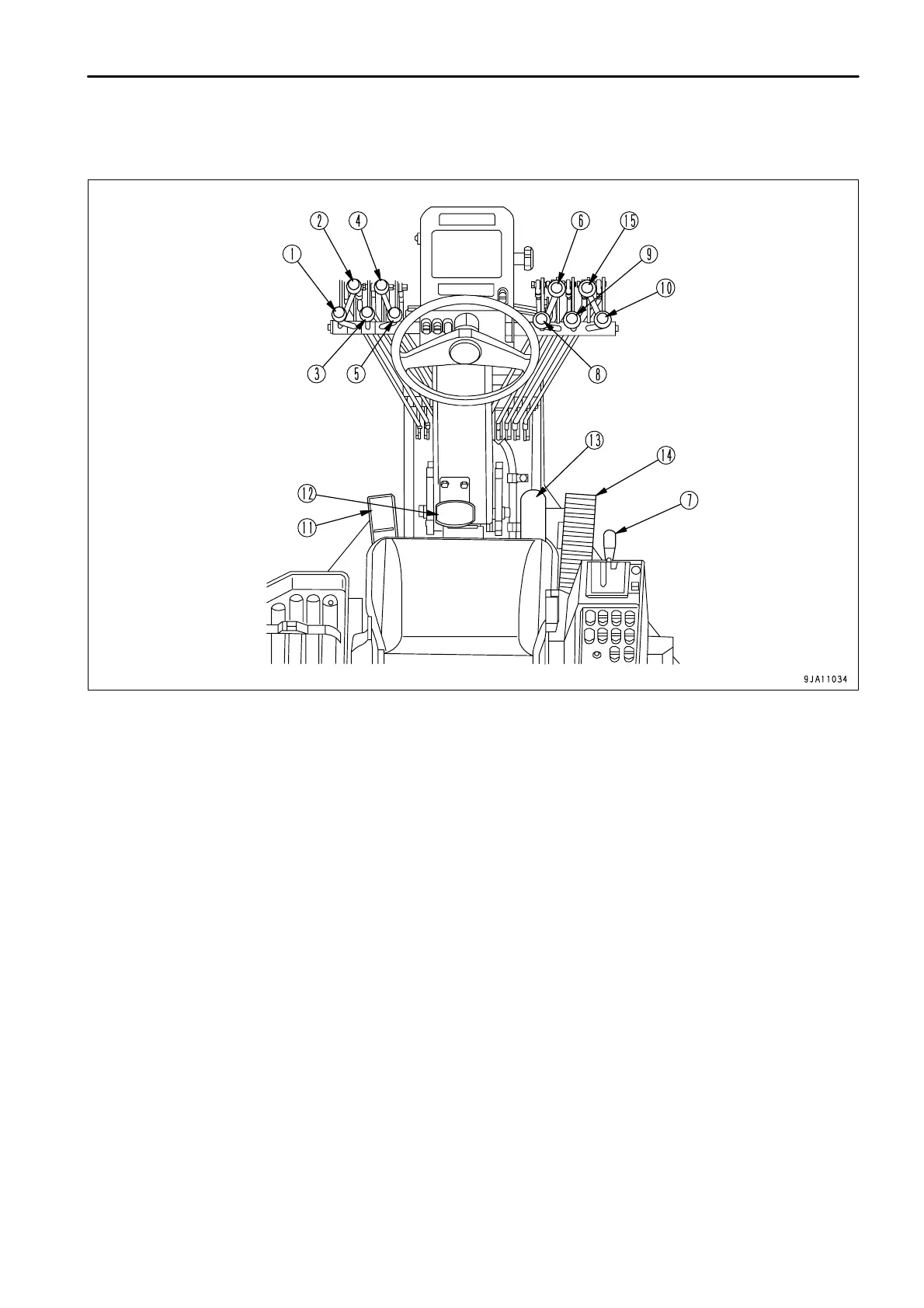

EXPLANATION OF COMPONENTS
CONTROL LEVERS, PEDALS
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Left blade lift cylinder control lever
Ripper/Scarifier control lever (if equipped)
Blade side shift control lever
Power tilt control lever
Blade rotation control lever
Articulate control lever
Gear shift lever
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
Drawbar side shift control lever
Leaning control lever
Right blade lift cylinder control lever
Inching pedal
Steering console tilt pedal
Brake pedal
Accelerator pedal
Front attachment control lever (if equipped)
