OPERATION
EXPLANATION OF COMPONENTS
EXPLANATION OF COMPONENTS
The following is an explanation of devices needed for operating the machine.
To perform suitable operations correctly and safely, it is important to completely understand methods of operating
the equipment, and the meanings of the displays.

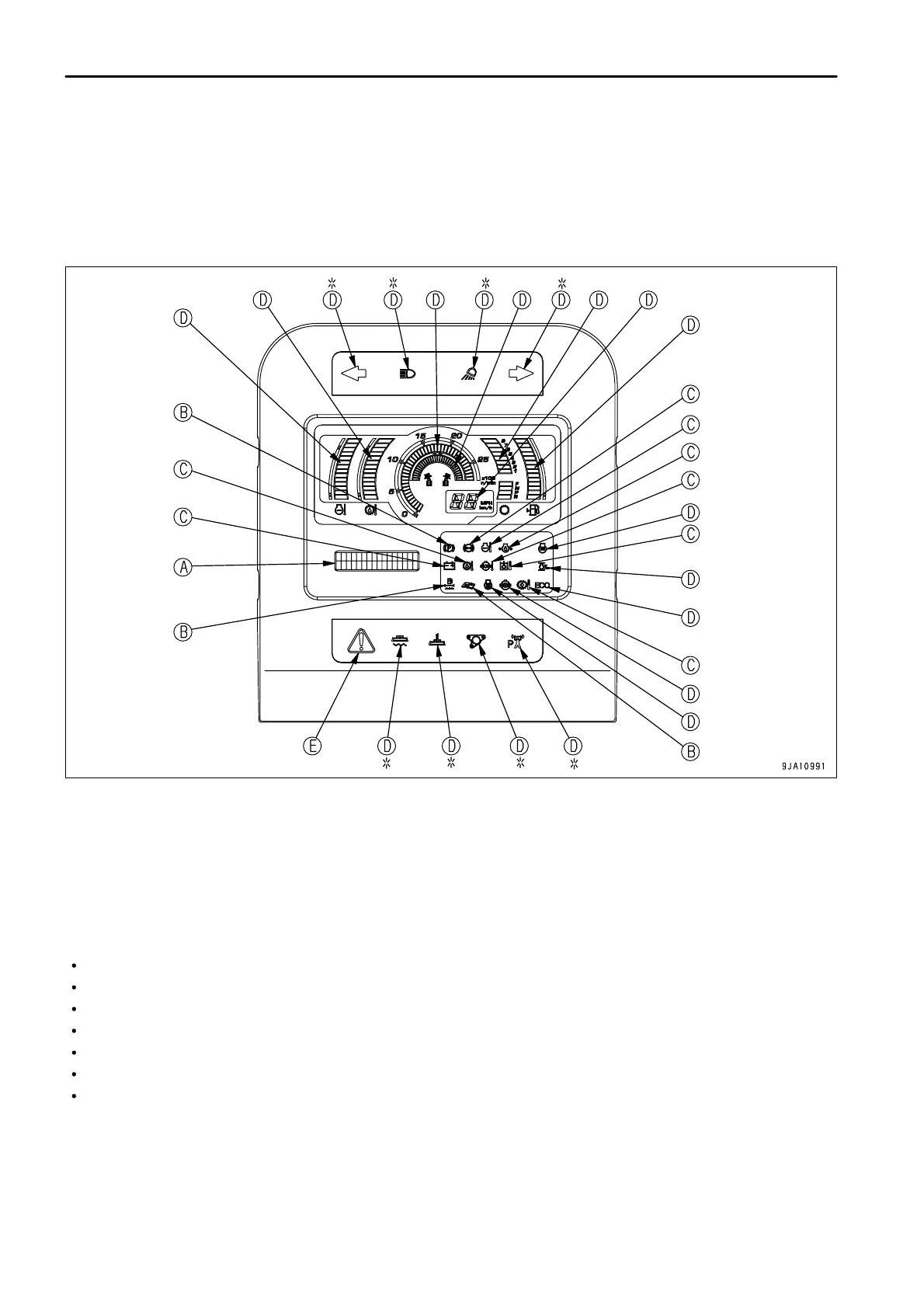

MONITOR PANEL
(A)
(B)
(C)
Character display
Caution items
Emergency stop item
(D)
(E)
Meter display portion
Centralized warning lamp
NOTICE
When the starting switch is turned to the ON position before starting the engine, a system check is carried out for 3 seconds.
The centralized warning lamp lights up for 2 seconds, and then goes out.
The alarm buzzer sounds for 2 seconds, and then stops.
The monitor lamp lights up for 2 seconds, and then goes out for 1 second. (Except items marked with *)
The speedometer displays "88" for 2 seconds, and then goes out for 1 second.
After the system check has been carried out for 3 seconds, the meters start operation.
The character display displays "KOMATSU" for 3 seconds.
If any lamp or other part does not work, there is probably a failure or disconnection, so ask your Komatsu distributor to carry
out inspection.
3 - 6
