OPERATION
EXPLANATION OF COMPONENTS

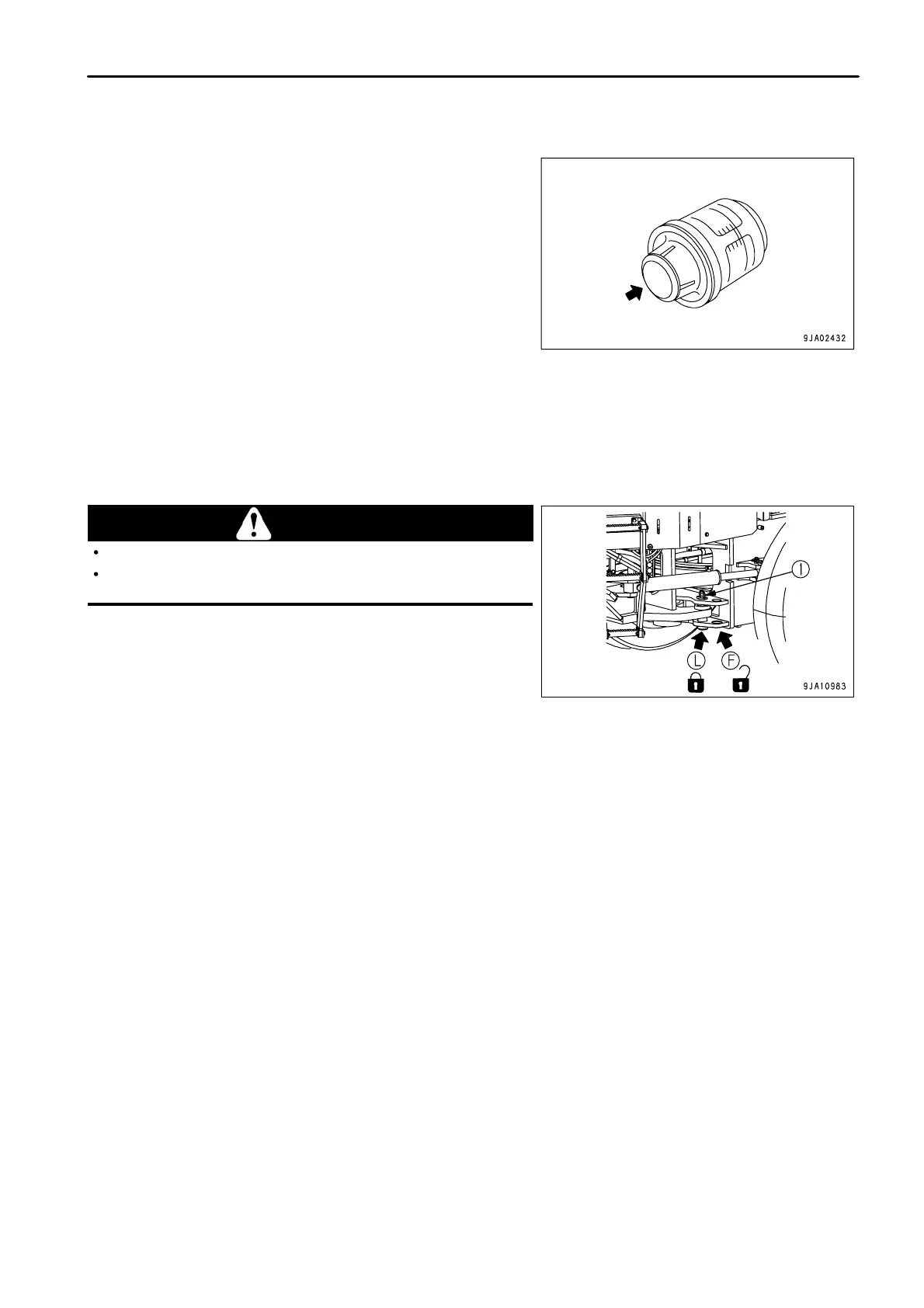

DUST INDICATOR
This device checks the condition of clogging of the air cleaner
element.
It displays 5 levels for the amount of clogging.
When the yellow display panel showing the clogging reaches the
red line, clean the element.
After cleaning the element, press the reset button to return the
yellow display panel to its original position.
REMARK
When air cleaning element is clogged, the maintenance caution
lamp lights up.
Although the lamp goes out automatically after cleaning, resetting
of the dust indicator is necessary.
ARTICULATE LOCK PIN
WARNING
When servicing or transporting the machine always use this lock pin.
For normal travel, always use the lock pin.
For general travel, maintenance, or transportation, insert this pin in
LOCK position (L) to lock the front frame and rear frame and
prevent the machine from articulating.
When articulating the machine, stow the pin at FREE position (F).
3 - 63
