MAINTENANCE
SERVICE PROCEDURE
CHANGE OIL IN CIRCLE REVERSE GEAR CASE
WARNING
The parts and oil are at high temperature immediately after the engine is stopped, and may cause burns. Wait for the temperature
to go down before starting the work.
Refill amount of oil: 7 liters (1.85 US gal) (Slip clutch type)

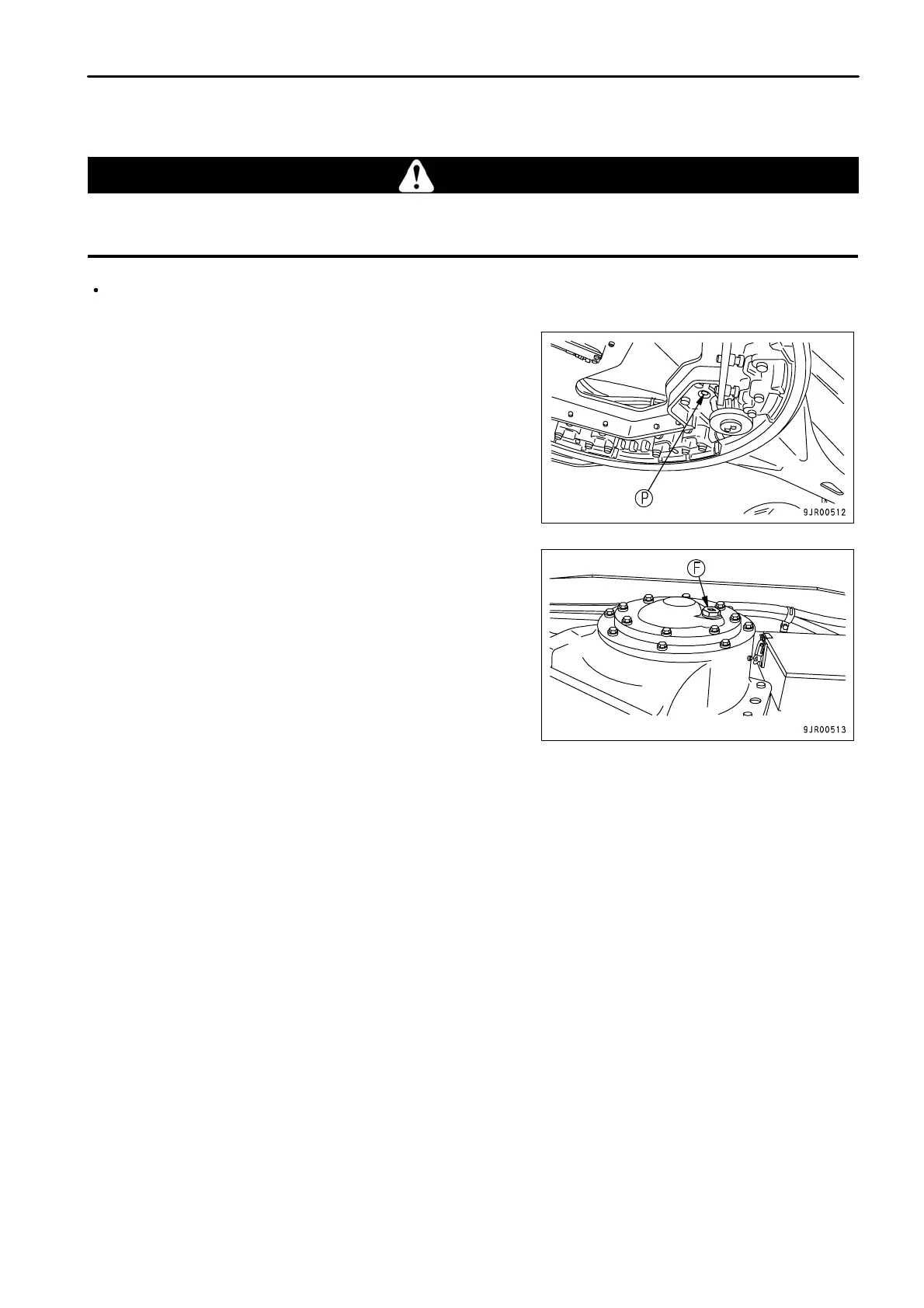

1. Set the container under drain plug (P) to catch the oil.
2.
Remove drain plug (P) and drain the oil.
3.
After draining the oil, clean drain plug (P) and install it again.
4.
Remove oil filler plug (F) and add gear oil to the specified level.
5.
After adding the oil, check that the oil is at the specified level.
For details, see "CHECK OIL LEVEL IN CIRCLE REVERSE
GEAR CASE, ADD OIL (PAGE 4-52)"
6.
Install oil filler plug (F).
4 - 73
