MAINTENANCE
SERVICE PROCEDURE

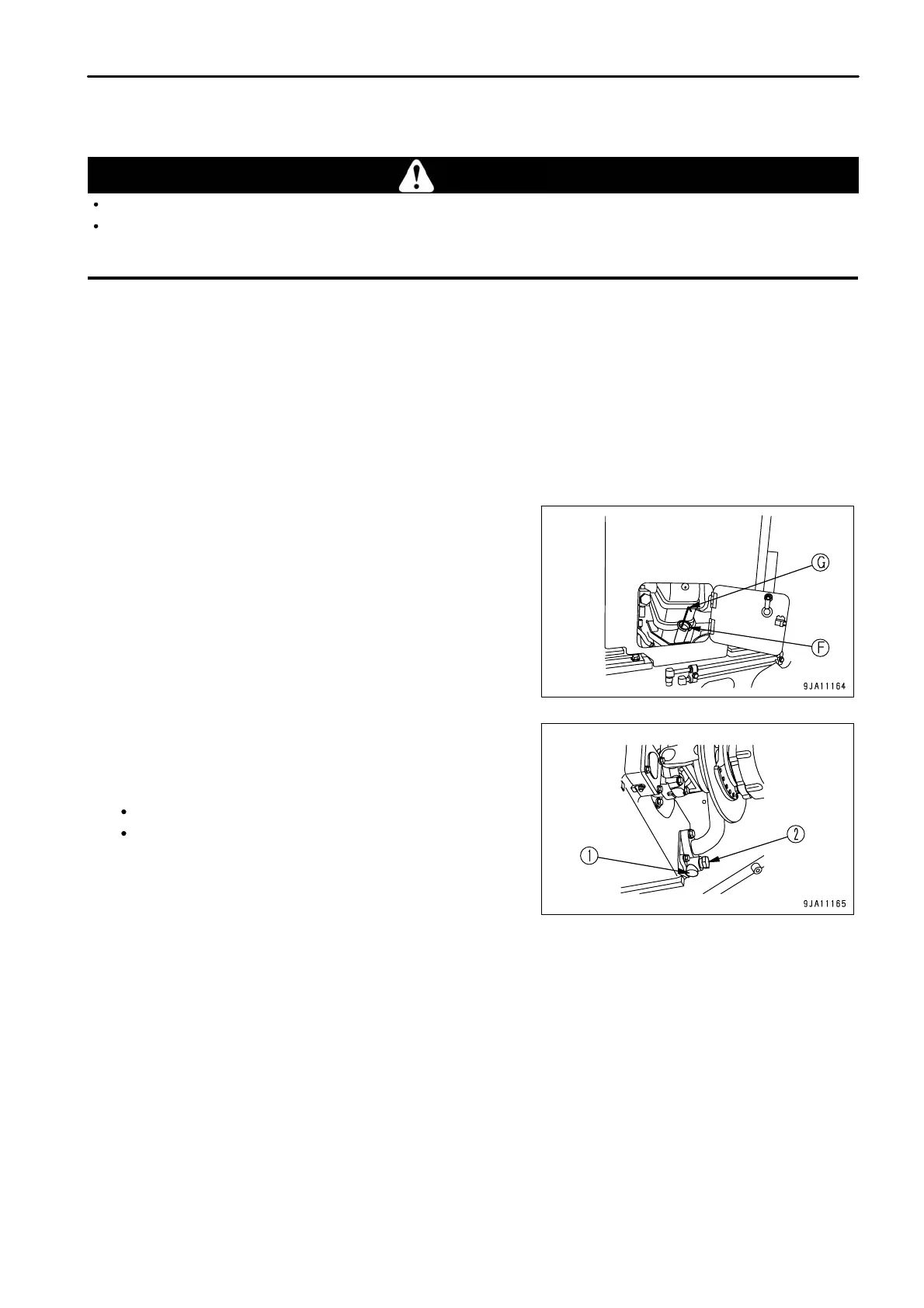

CHECK OIL LEVEL IN TRANSMISSION CASE, ADD OIL
WARNING
Parts and oil are still heated for some time after the engine stops. Start operations after the temperature drops.
Before the check, set the gear shift lever to the P (PARKING) position to prevent the machine from moving and confirm that the
respective levers are placed in the neutral position.
Carry out this procedure if there is any sign of oil on the transmission case, or if there is oil mixed with the cooling
water.
1.
Stop the engine.
NOTICE
Wait for at least 12 hours after stopping the engine before carrying out the inspection. If this is not done, there will be oil remaining
at various places and it will be impossible to check the oil level correctly.
2.
Remove cap of oil filler (F).
3. Take out the dipstick (G) and wipe off the oil with cloth.
4.
Fully insert dipstick (G) into filler pipe, then remove it.
5.
The oil level should be between the H and L marks on dipstick
(G).
If the oil level is below the L mark, add oil through oil filler port
(F).
6. If the oil level is H line or above, remove drain plug (1), slowly
loosen drain plug (2) to discharge the excess oil, and then
check the oil level again.
Tightening torque
drain plug (1): 59 to 78.5 Nm (6 to 8 kgm, 43.4 to 57.9 lbft)
drain plug (2): 49 to 78.5 Nm (5 to 8 kgm, 36.2 to 57.9 lbft)
4 - 49
